Service Manual
Series 45 E Frame Open Circuit Pumps
Adjustments
©
Danfoss | September 2016
All manuals and user guides at all-guides.com

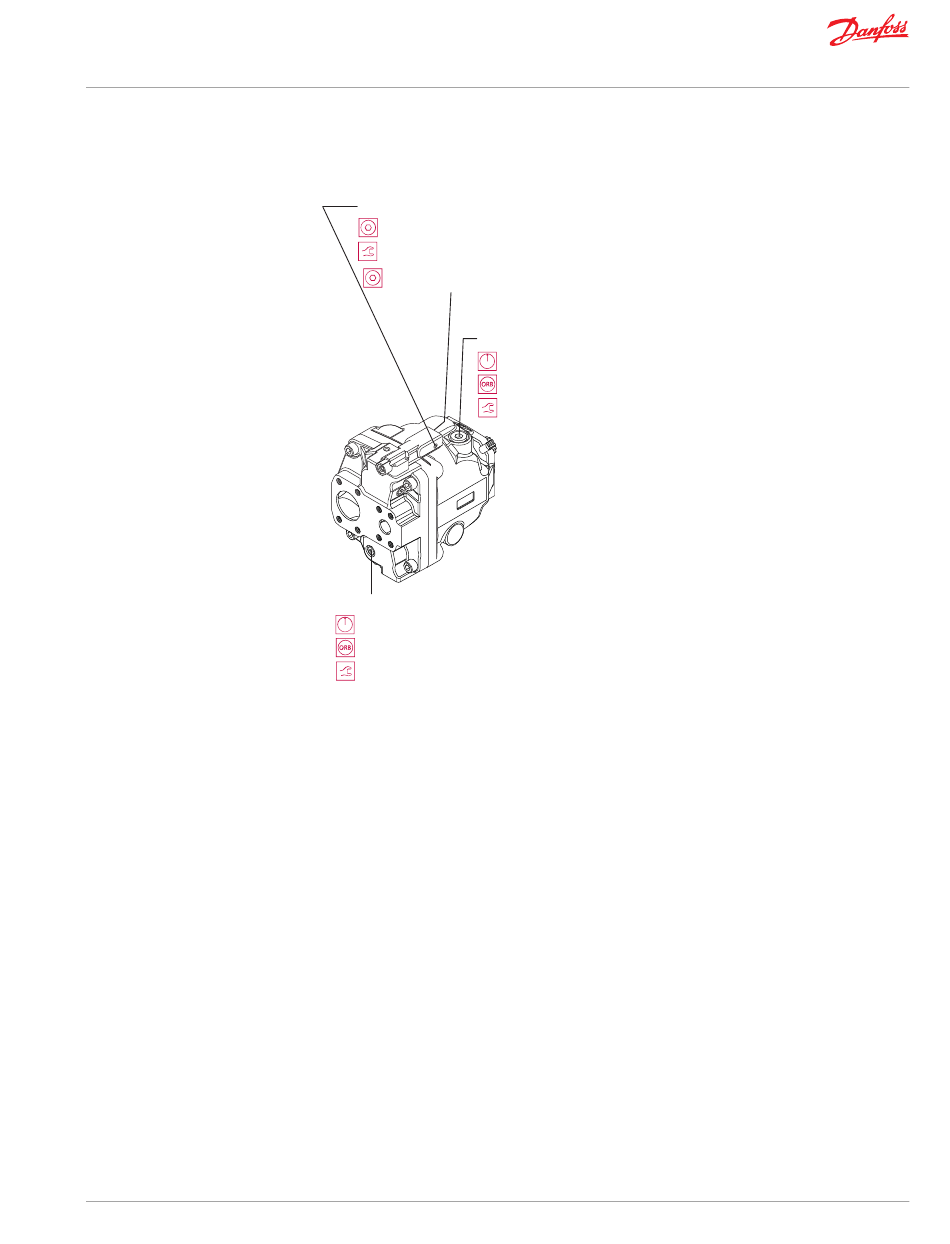

PC control adjustment
PC set screw
4 mm
7 - 11 N•m [6 - 8 lbf•ft]
PC adjusting plug
6 mm
Gauge M2
0 - 300 bar [0 - 4351 psi]
9/16-28
34-68 N•m [25-50 lbf•ft]
Case drain port L1
0 - 10 bar [0 - 145 psi]
7/8-14
54 - 136 N•m
[40 - 100 lbf•ft]
P104053
AX00000024en-US0401 | 25
