Service Manual
Series 45 E Frame Open Circuit Pumps
Minor repair

Angle Sensor

© Danfoss | September 2016
All manuals and user guides at all-guides.com

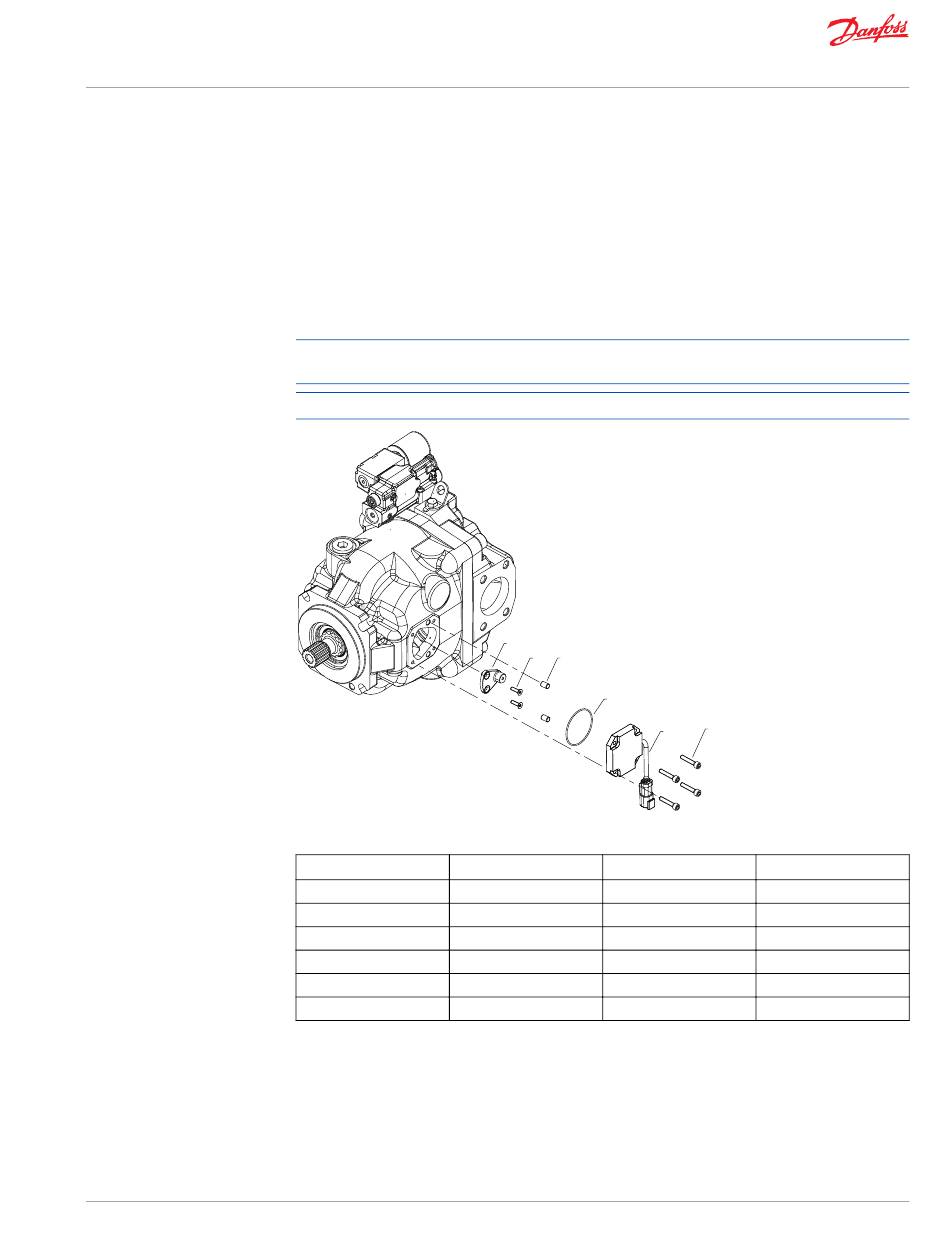

Removal

1. Remove the four sensor housing screws (K195), sensor housing (K265), and sensor housing O-ring
(K175).
2. Remove two locating dowels (K185).
3. Remove two magnet carrier screws (K115) and discard. Remove magnet carrier (K105) from pump
swashplate through housing.
Screws (K115) must be discarded after disassembly. Used magnet carrier screws may loosen and lead
to premature failure. Ensure that new screws with locking compound are utilized.
During O-ring removal from sensor housing, be careful not to damage or scratch seal area .
Right side
Item
K105
K115
K175
K185
K195
K265

Inspection

1. Carefully examine the angle sensor housing for mechanical damages, cracks, or scratched surfaces.
2. Check the angle sensor connector for breaks, pin deformation, or contamination.
3. Check sensor wiring for heat damage, scuffing/chafing, or kinks.
4. Check sensor seal area for contamination and surface damage
K105
K115 K185
K175
Description Wrench size
Magnet carrier
Carrier screws -
O-ring -
Locating dowels -
Screws
Housing -
K195
K265
P108840
Torque
-
4.5 Nm [3.35 lbf ft]
-
-
5.9 Nm [4.35 lbf ft]
-
AX00000024en-US0401 | 37
