Electronic Torque Limiting Control; Repair - Danfoss 45 E Frame Series Service Manual

Service Manual
Series 45 E Frame Open Circuit Pumps
Minor repair

Electronic Torque Limiting Control

36 | © Danfoss | September 2016
All manuals and user guides at all-guides.com

Repair

Disassembly, inspection and reassembly steps are the same as the steps in the previous topic (Electric
Controls). This includes repair of the spools and plugs.
The solenoid (C155), nut (QC125), and O-rings (QC120) for the valve are available as separate repair
parts. The valve is only available as a complete assembly (QC150).
If it is necessary to remove the orifice (H020), use a 3 mm internal hex wrench. Torque it to 2.7 Nm [24
in-lb] when it is installed in the manifold.

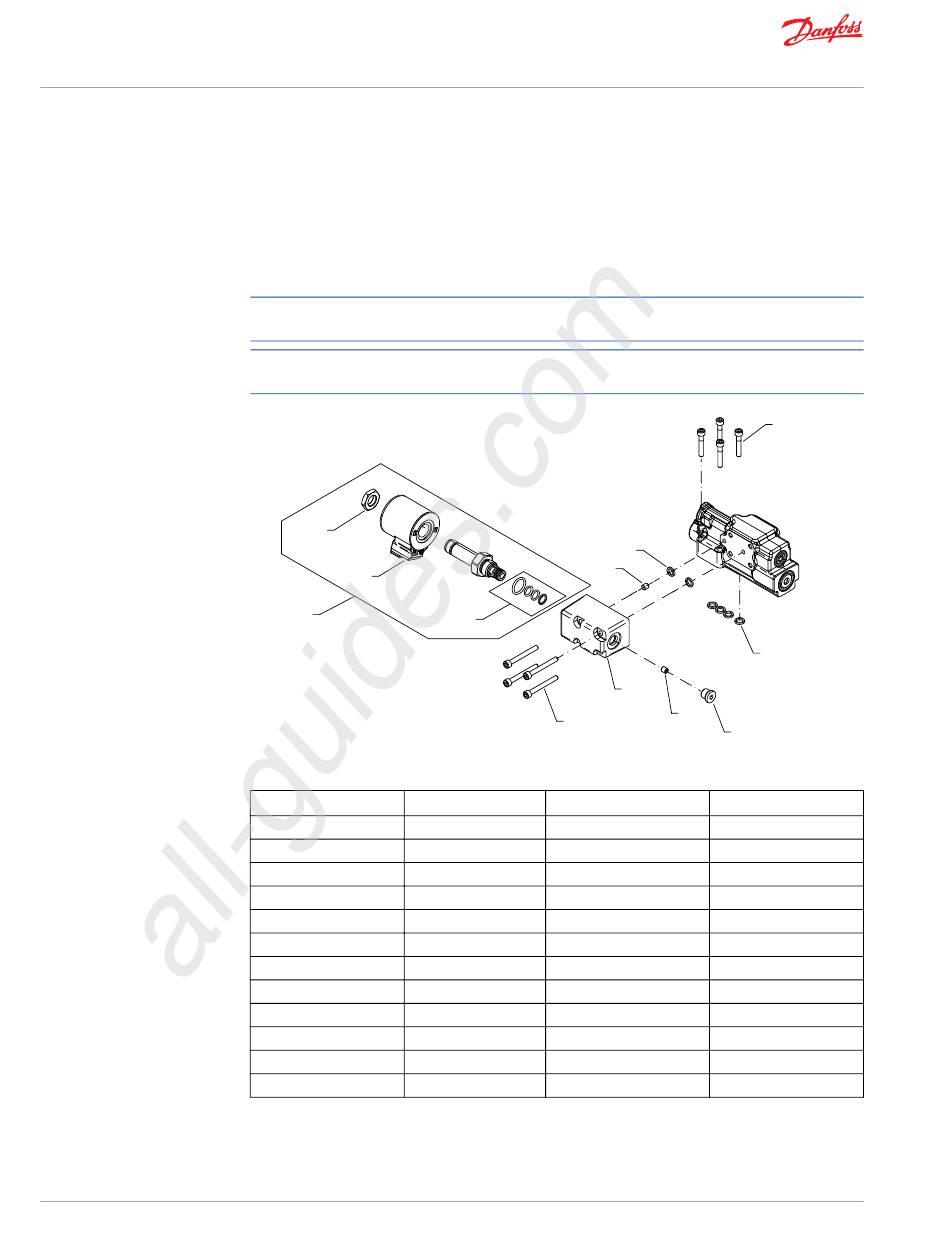

QC125
C155
QC150
* Included in overhaul seal kit Q210
Item
C149
C151
C152
C153
C154
C155
C200
C300
QC120
QC125
QC150
H020
QC120
C151
Description Wrench size
Orifice 3 mm internal hex
Screws
Manifold -
Plug 5 mm internal hex
O-ring -
Solenoid -
O-rings -
Screws
O-rings
Nut
Valve assembly
Manifold orifice 3 mm internal hex
C154
C149
*C200
C152
H020
C153
P108790
Torque
2.7 Nm [24 in-lb]
6.4 Nm [4.7 lbf-ft]
-
12 Nm [8.9 lbf-ft]
-
-
-
6.4 Nm [4.7 lbf-ft]
8.7 Nm [6.4 lbf-ft]
27.7 Nm [20.4 lbf-ft]
2.7 Nm [24 in-lb}
AX00000024en-US0401
C300
