Chapter 9: How to Install the WWAN or Wi-Fi Module

9: h

haPter

ow to

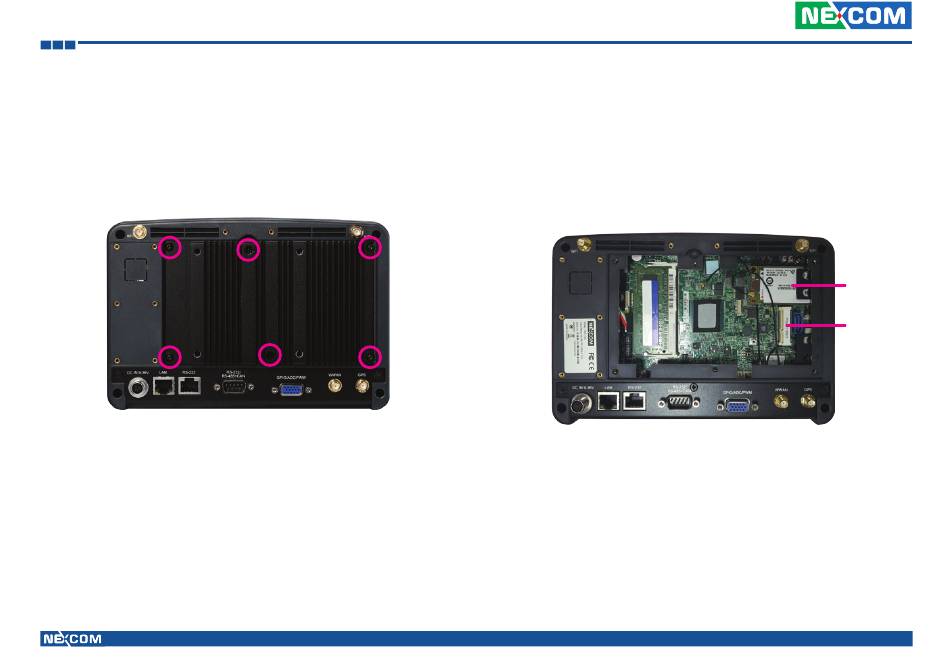

1. Remove the screws on the heatsink to remove it.

wwan

nstall the

-f

2. The Mini PCI express slot shown below is used to install a WWAN or Wi-Fi

communication module.

3. Insert the module into the Mini PCI Express slot at a 45 degrees angle

until the gold-plated connector on the edge of the module completely

disappears inside the slot. And then attach the RF cable to the module.

4. Install the rear cover.

odule

For WWAN

module

For Wi-Fi

module
