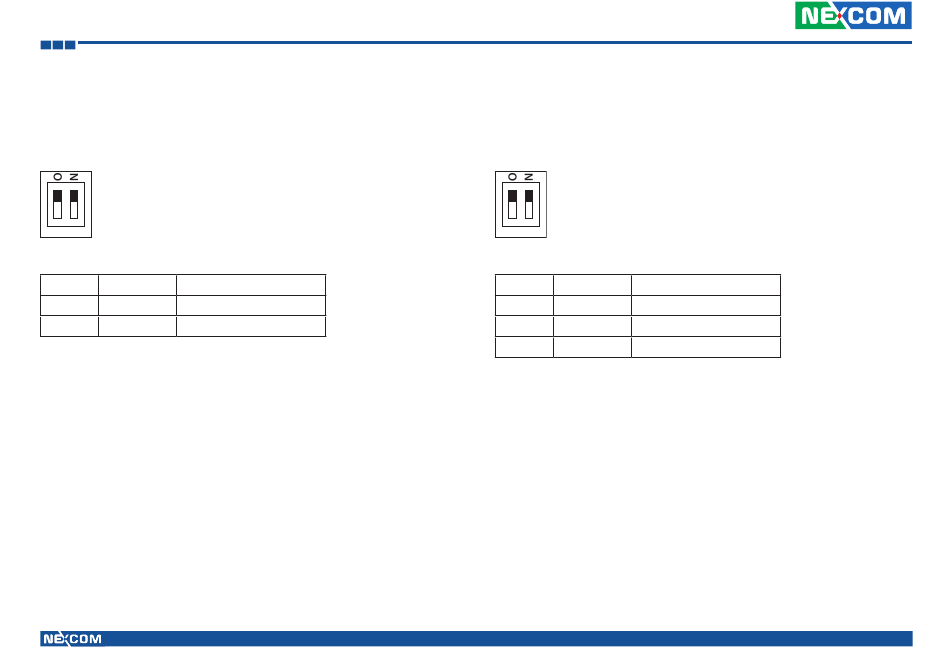

Chapter 3: Jumpers and Connectors
ME/RTC Clear Switch
Connector size: 2-pin DIP switch
Connector location: SW1
1 2
Pin
Status
1-2
ON
Clear CMOS/ME
1-2
OFF
Copyright © 2014 NEXCOM International Co., Ltd. All rights reserved
Function
Normal
Input Voltage Control Switch
Connector size: 2-pin DIP switch
Connector location: SW3
1 2
Pin
Status
1-2
OFF
1-2
1 OFF, 2 ON
1-2
On
27
Function
12V
24V
9-36V
VMC 100/1100 Series User Manual
