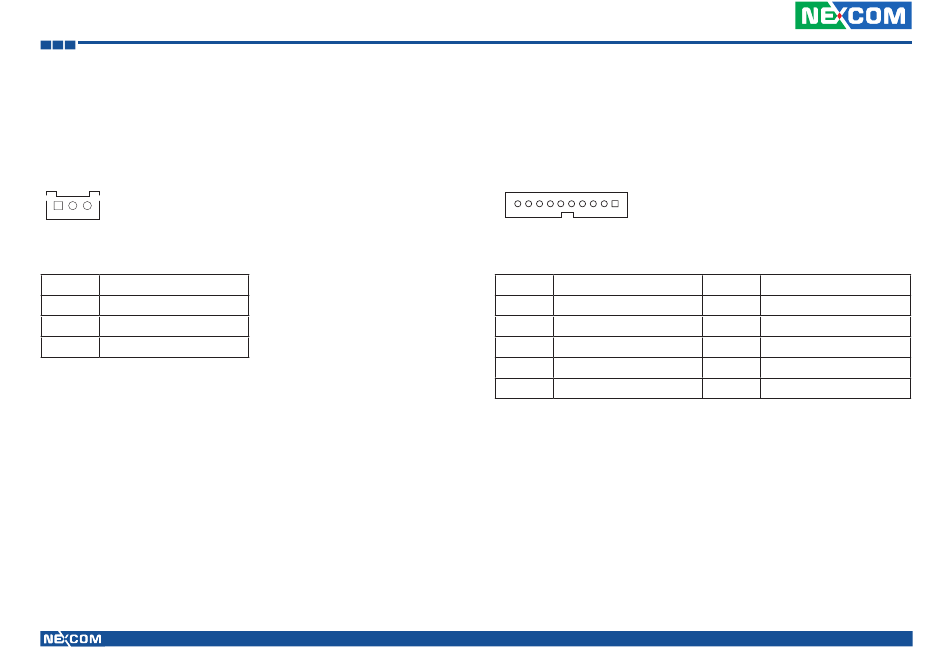

Chapter 3: Jumpers and Connectors
EC Debug COM Connector
Connector size: 1x3 3-pin header, 1.0mm pitch
Connector location: J6
1
3
Pin
Definition
1
RX
2
GND
3
TX
Copyright © 2014 NEXCOM International Co., Ltd. All rights reserved
Port 80 Debug Connector
Connector size: 1x10 10-pin header, 1.0mm pitch
Connector location: J8
10
1
Pin
Definition
1
GND
3
33M_CLK
5
LPC_AD3
7
LPC_AD1
9
VCC3
25
Pin
Definition
2
PCIRST#
4
LPC_FRAME#
6
LPC_AD2
8
LPC_AD0
10
VCC3
