Chapter 3: Jumpers and Connectors

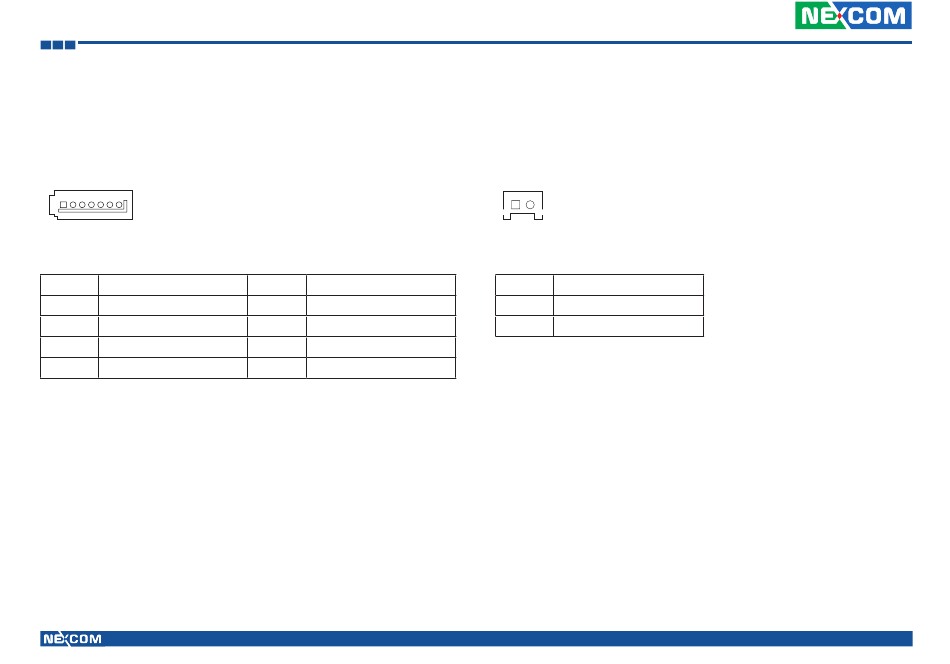

Serial-ATA
Connector size: Standard Serial ATA 7P (1.27mm, SATA-M-180)
Connector location: CN3
1
7
Pin
Definition
1
GND
3
SATA0_TXN
5
SATA0_RXN
7
GND
Copyright © 2014 NEXCOM International Co., Ltd. All rights reserved
Pin
Definition
2
SATA0_TXP
4
GND
6
SATA0_RXP
SATA DOM Power Connector
Connector size: 1x2 2-pin header, 1.25mm pitch
Connector location: J9
1
2
Pin
Definition
1
GND
2
VCC5
26
VMC 100/1100 Series User Manual
