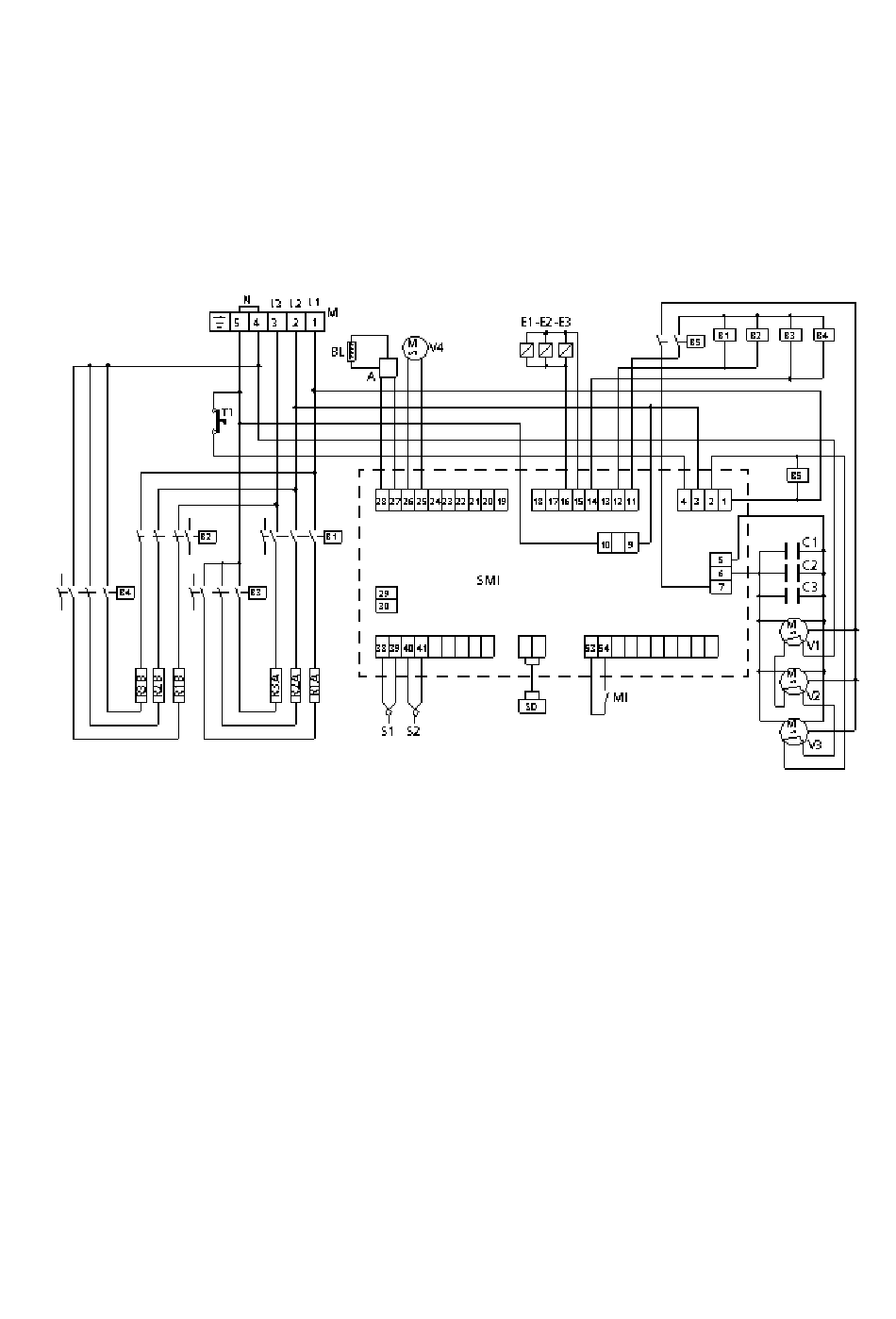

_ Electronic convection oven _ rev. 0 ________________________MODD. EKF 664 TC – EKF 711 TC – EKF 1064 TC
M Power supply terminal block
B1-B2-B3-B4 Contactor coils
B5 Relay coil
R1-R2-R3 Circular heating elements
T1 Safety thermostat
C1-C2-C3 Capacitors
V1-V2-V3 Radial motor-driven fans
V4 Motor-driven cooling fans
_________________________________________________________________________________________ page 51 _
MODELS MODELS MODELS MODELS E E E E KF 1064 TC KF 1064 TC – – – – E E E E KF 1111 TC KF 1064 TC KF 1064 TC
EKF 1111 TC – EKF 1664 TC – EKF 2011 TC
KF 1111 TC KF 1111 TC KF 1111 TC
Key Key Key Key
A LED bar power supply
BL LED bar
MI Door microswitch
E1-E2-E3 Water solenoid valves
S1 Oven cavity probe
S2 Food "core" probe
SMI Microprocessor board
SD Display board
