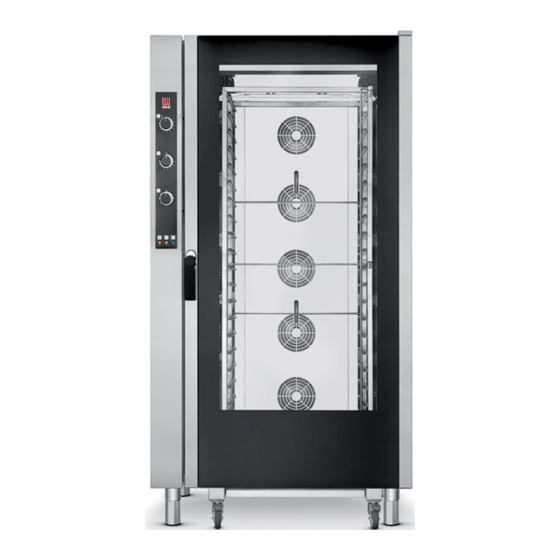

- Page 1 USE AND INSTRUCTION MANUAL MOD. EKF 1664 UD - EKF 2011 UD rev. 0 TECNOEKA S.r.l. Via Marco Polo, n.11 - 35010 Borgoricco (Padova) Italy Tel. +39.049.9300344 – +39.049.5791479 Fax +39.049.5794387 www.tecnoeka.com E-mail: info@tecnoeka.com...
- Page 2 Cooking food Model EKF 1664 UD – EKF 2011 UD TECNOEKA Srl declares that the above mentioned products comply with all provisions pertaining to the following directives: Low voltage directive 2006/95/CE end of validity 20/04/2016 Low voltage directive 2014/35/UE valid from 20/04/2016...
- Page 3 Electric Oven rev.0________________________________________________________ EKF 2011 UD – EKF 1664 UD _________________________________________________________________________________________ pag 3...
-
Page 4: Table Of Contents
_______________________________________________________________________ use and instruction manual Index 1. Technical service 2. General warnings 3. Technical specifications 4. Instructions for the installer 5. Use instructions (for the user) 6. Residual risks (for the user) 7. How to use the control panel 8. Oven cooking 9. -
Page 5: Technical Service
Electric Oven rev.0________________________________________________________ EKF 2011 UD – EKF 1664 UD 1. Technical service A technical check-up once or twice a year helps prolong the life of the appliance and guarantees better operation. Make sure that assistance is carried out solely and exclusively by qualified personnel. -
Page 6: Technical Specifications
_______________________________________________________________________ use and instruction manual 3. Technical specifications EKF 1664 UD Modd. EKF 2011 UD height cm 192 Dimensions of (with feet) cm 98,5 width appliance cm 103 depth Weight (Kg) 244,5 Kg 4 Maximum load per tray: Electrical power:... - Page 7 It is recommended to place the appliance under an extraction hood or to use the suitable TECNOEKA hoods, in order to convey the smoke to the outside. The appliance must be positioned on a flat and level floor. After placement, ensure the appliance is horizontally aligned.
- Page 8 _______________________________________________________________________ use and instruction manual Electrical connection The connection to the main supply must be in conformity with current legislation in force. Before making the electrical connections, make sure that: the voltage and frequency values of the power supply system match the values on the "technical data"...
- Page 9 Electric Oven rev.0________________________________________________________ EKF 2011 UD – EKF 1664 UD Installation / connection layout MODD. EKF 1664 UD – EKF 2011 UD 4 WATER DRAIN PIPE (DN30) 6 SOFTENED WATER INLET (THREADED SOLENOID VALVE ¾”) 7 DRAIN PIPE COOLING WATER INLET...
- Page 10 _______________________________________________________________________ use and instruction manual 4.8 Power supply cable connection Remove the lower back of the appliance to access the power supply terminal board. Loosen the cable retainer located on the rear of the back (see Fig.1) and run the cable through it. The cable must also go through the suitable hole on the electrical components panel, until reaching Prepare conductors for connection with the terminal board so that the earth conductor is the last to be extracted from its terminal in the event the cable should be abnormally pulled.
- Page 11 Electric Oven rev.0________________________________________________________ EKF 2011 UD – EKF 1664 UD 4.11Safety thermal breaker The appliance has a manually reset safety thermal breaker. It protects against excessive dangerous over-temperatures which could be accidentally generated inside the appliance. If the device is tripped, it interrupts electrical power to the appliance and thus prevents it from operating.
- Page 12 _______________________________________________________________________ use and instruction manual 5. Instructions for the user 5.1 General information - Use the appliance at room temperature between +5°C and +25°C. 35°C may be reached occasionally. - The temperature of the appliance's external surfaces may exceed 60°C, only touch control elements.
-
Page 13: Residual Risks (For The User
Electric Oven rev.0________________________________________________________ EKF 2011 UD – EKF 1664 UD 6. Residual risks (for the user) After a cooking operation, open the door cautiously, to avoid a violent outflow of heat which could cause burns. While the oven is in operation, pay attention to the hot zones (marked on the appliance) of its external surfaces. -
Page 14: How To Use The Control Panel
_______________________________________________________________________ use and instruction manual 7. How to use the control panel 1. "End of cooking" programming knob 2. Control thermostat knob 3. Automatic humidifier knob 4. "End of cooking" programmer indicator light 5. Control thermostat indicator light 6. Automatic humidifier indicator light pag 14 _________________________________________________________________________________________... - Page 15 Electric Oven rev.0________________________________________________________ EKF 2011 UD – EKF 1664 UD Fig. 2 Fig. 3 Fig. 4 Programming cooking time - To run the oven, turn the programmer knob (Fig. 2) in line with symbol (continuous operation) or in line with the selected cooking time (up to 120 minutes).
- Page 16 _______________________________________________________________________ use and instruction manual These models are equipped with a special mobility system (patented) of the internal door glass. The system allows you to “slide” the internal glass down or up, according to the application needs. Glass "down" To obtain this position the oven door must be completely opened and by exerting adequate force, “slide”...
-
Page 17: Oven Cooking
Electric Oven rev.0________________________________________________________ EKF 2011 UD – EKF 1664 UD Glass “down” and door open with tray trolley in With tray trolley in, the display shows the RED/BLUE SCREEN (flashing) with the words “LIFT DOOR GLASS“. A sound alarm goes off, which is repeated intermittently. This internal glass position with the tray trolley in, does not allow the door to be closed. -
Page 18: Cleaning
_______________________________________________________________________ use and instruction manual 9.2 Cleaning the cooking chamber 9.2.1 Manual Cleaning For hygienic reasons, it is good practice to clean the cooking chamber at the end of each cooking cycle, otherwise it should be cleaned at least once at the end of each day’s use. Correct cleaning also prevents the formation of corrosive phenomena inside the chamber, as well as preventing the danger of accidental combustion due to any grease and food residues accumulated over time. -
Page 19: Maintenance
Electric Oven rev.0________________________________________________________ EKF 2011 UD – EKF 1664 UD 9.5 Cleaning the door The glass on the door inside the cooking chamber can be cleaned with the same degreaser as used for cleaning the chamber or a normal glass cleaning product can be used (non toxic). -
Page 20: Possible Faults
_______________________________________________________________________ use and instruction manual 10.3 Handle adjustment Should the door handle not close properly, check and if required adjust the "nose" position as follows: 1. With oven door open, loosen the fixing screws of the "nose" 2. Move the "nose" vertically and fasten it so that when the door is closed it may be inserted in the handle, completely open (horizontal position) without rubbing. -
Page 21: Technical Service
(on the rating plate on the rear panel). For servicing needs the user may contact Tecnoeka on the numbers shown on the cover, or refer to the website www.tecnoeka.com. -
Page 22: Wiring Layout
_______________________________________________________________________ use and instruction manual 14. Wiring layout Control diagram C Capacitors Line 1 Phase Terminal N Neutral Terminal A LED Bar Power Supply Unit B (1-2-3-4-5-6-7-8) Contactor coils BL LED Bar RL (1-2-3-4) Relais coil T1 Safety thermostat MI (1) glass door microswitch T2 Control thermostat MI (2-3) trolley microswitch S1 Programmer indicator light... - Page 23 Electric Oven rev.0________________________________________________________ EKF 2011 UD – EKF 1664 UD Power diagram Power supply terminal board Line 1 Phase Terminal Line 2 Phase Terminal Line 3 Phase Terminal Neutral Terminal 1 Neutral Terminal 2 Neutral Terminal 3 B1-B2-B3-B4-B5-B6-B7-B8 Contactor coils...
-
Page 24: The Warranty
16. Availability and supply of spare parts TECNOEKA SRL keeps and ensures the availability of spare parts for a maximum of 24 months from the date of the sales invoice of the finished product to the dealer. Availability cannot be guaranteed after said period.
