2.3.2 Mounting the Device to a Panel
For panel installations, the RUGGEDCOM RSG909R can be equipped with panel
adapters on the top and bottom of the chassis. The adapters allow the device to be
attached to a panel using screws.
To mount the device to a panel, do the following:
1.
RUGGEDCOM RSG909R
Installation Manual, 04/2023, C79000-G8976-1388-17
DIN Rail
1
DIN Rail Adapter
2

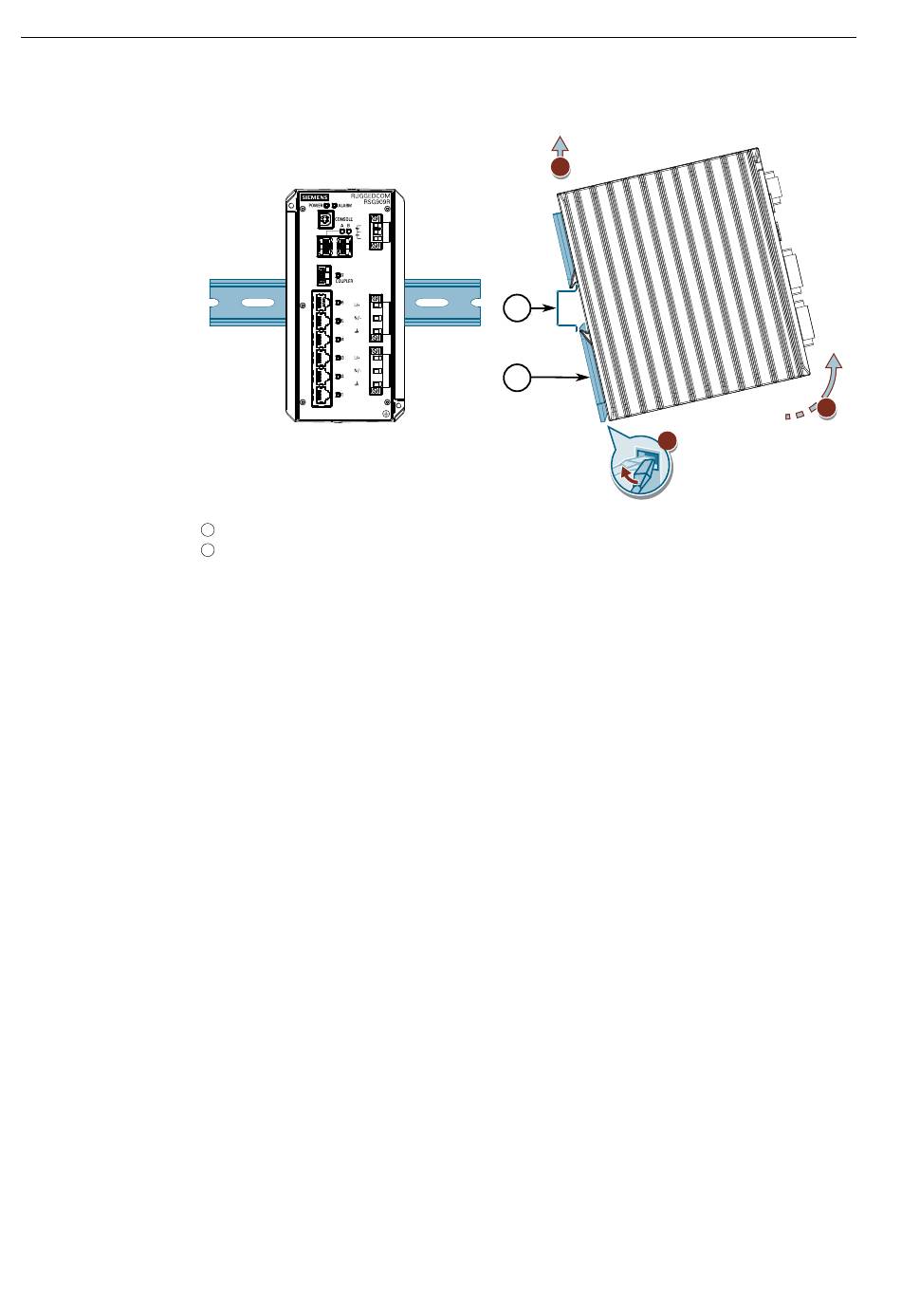

Figure 2.2 Removing the Device from a DIN Rail
Swing the bottom of the device away from the DIN rail.
Lift the device off the DIN rail.
Secure the mounting adapters to the top and bottom of the device using the
four M4 screws included with the device.
2.3.2 Mounting the Device to a Panel
3
1
2
1
Installing the Device
2
