Installing the Device
2.5.2 Wiring Examples

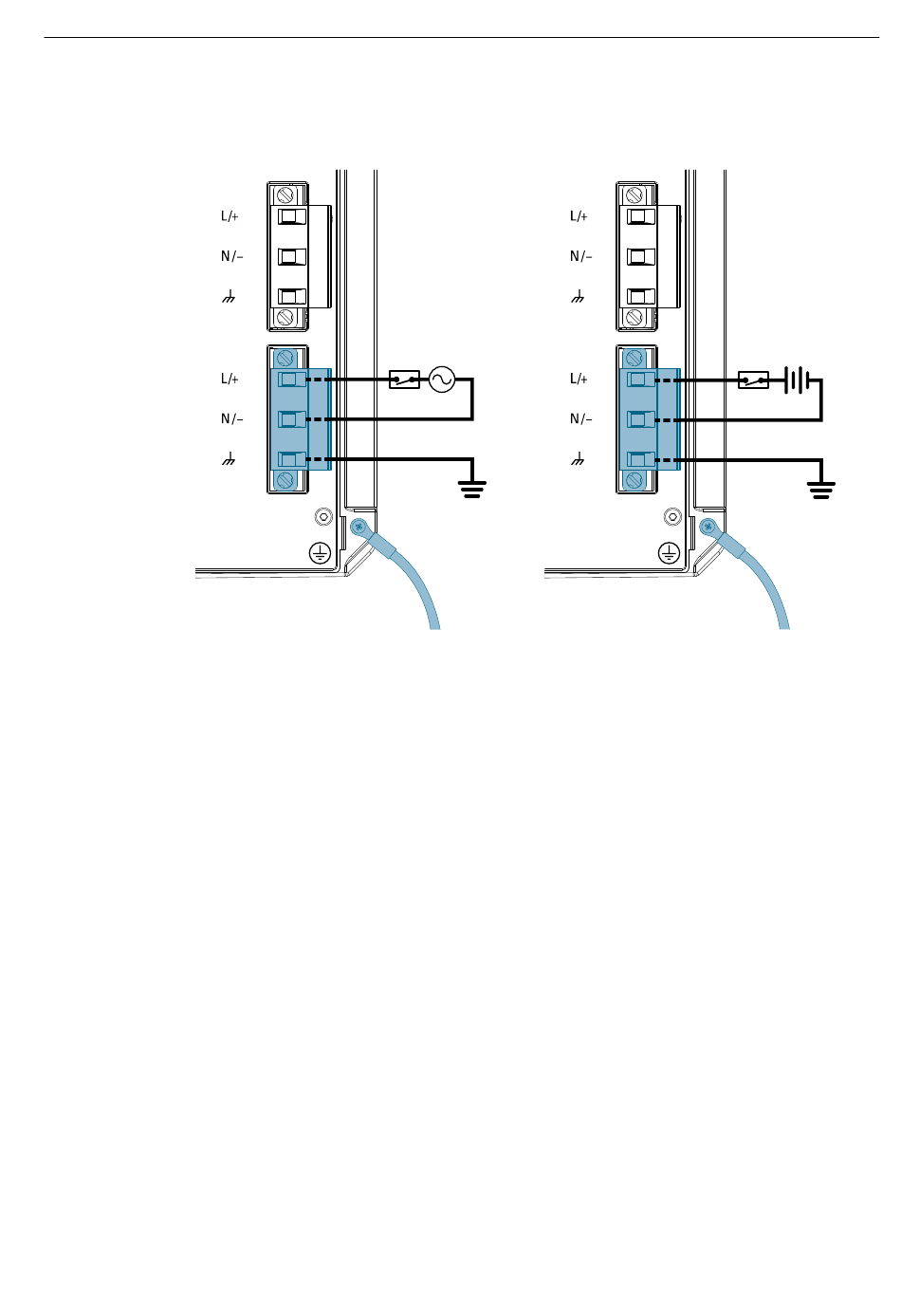

HI Power Supply Configurations
Figure 2.10
18
Single HI AC Power Input
Configuration

Figure 2.11
Single HI DC Power Input
Configuration
Installation Manual, 04/2023, C79000-G8976-1388-17
-
+
RUGGEDCOM RSG909R
