Communication Ports

The RUGGEDCOM RSG909R can be equipped with various types of communication
ports to enhance its abilities and performance.
1
2
3
1
2
3

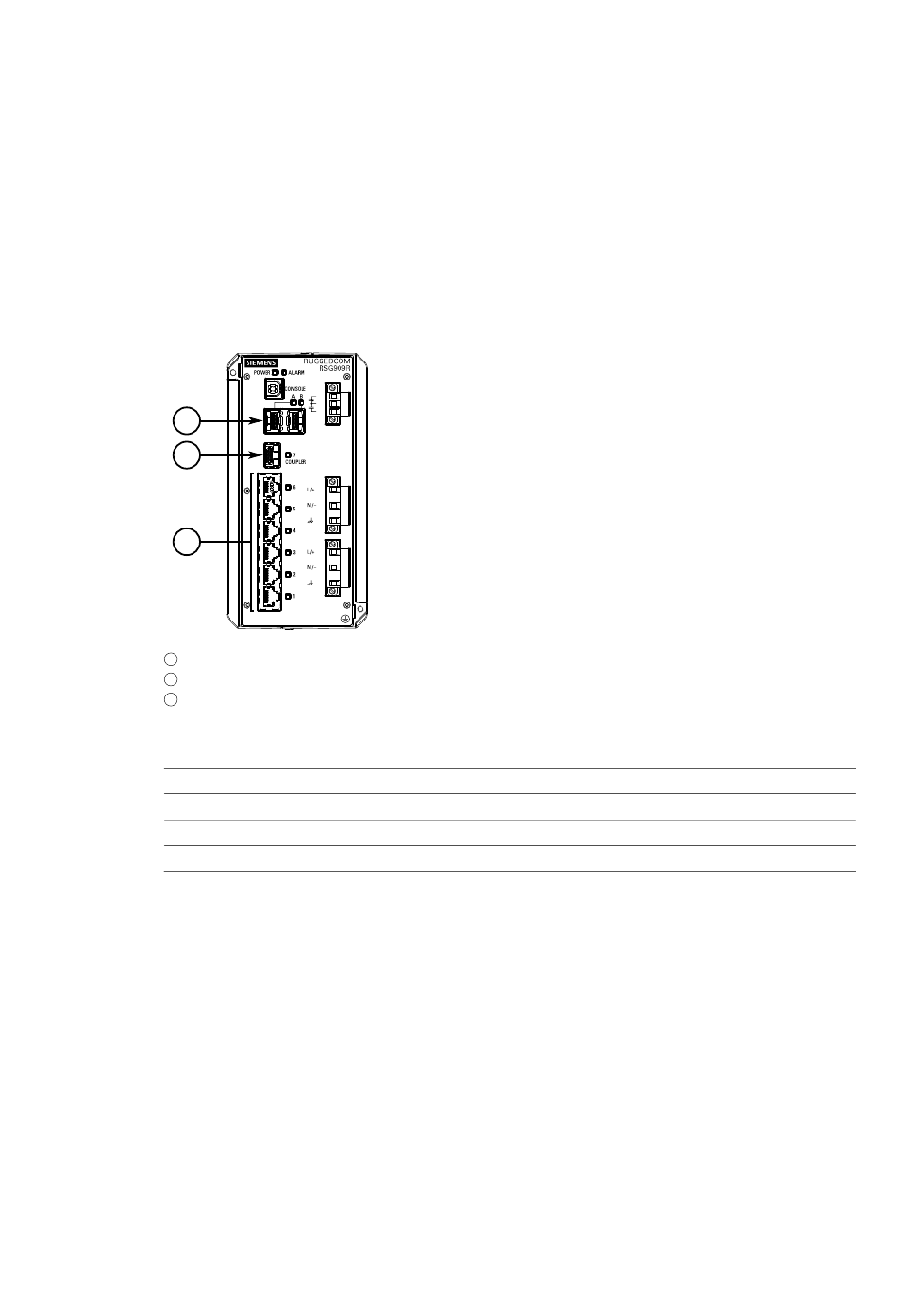

Figure 4.1
4.1

Redundant Network Access (RNA) Ports

The RUGGEDCOM RSG909R features three dedicated Small Form-factor Pluggable
(SFP) transceiver sockets for PRP/HSR applications:
RUGGEDCOM RSG909R
Installation Manual, 04/2023, C79000-G8976-1388-17
Ports A and B
Port 7
Ports 1 to 6
Port Assignment
Port
A/B
7
1 to 6
SFP Transceiver (1000Base-SX/LX)
SFP Transceivers (1000Base-SX/LX)
Copper (10/100/1000Base-TX) Ethernet Ports
Type
