Start Settings - GE ASTAT XT QT 0008U Series User Manual

Start Settings

4.7.3
Function &
Default
Soft Start Curve
0(Standard)
Kickstart Time
0 Sec.
Displays in MINIMIZED MODE and MAXIMIZED MODE.
26
When ASTAT-XT is connected in DELTA Conf. only Soft Start Curve 0 (Standard) is applied.
27
There is no Kickstart function when ASTAT-XT is connected in DELTA Conf.
28
29
– Page 2
26
Range Unit
0
(Standard)
1 !!
2 !!
3 !!
4 (Torque)
0 –1.0 sec.
• Control Keypad
Sets ASTAT-XT's Soft Start Curve.
Refer to section 4.7.3.1 on page 32.
Sets ASTAT-XT's Kickstart Time.
Kickstart level is 80% Un.
Intended to start high friction loads that require high starting
torque for a short time.

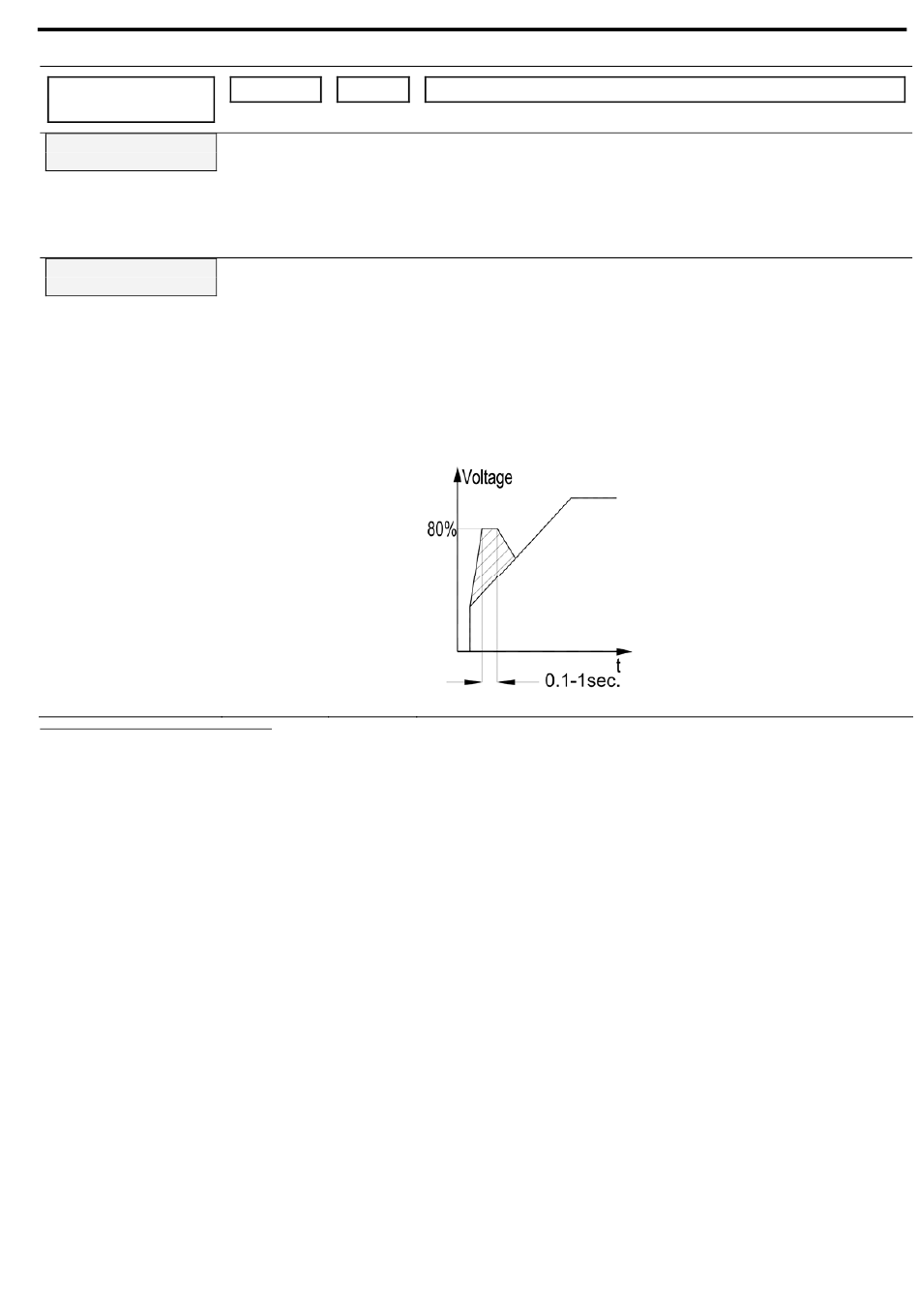

A pulse of 80% Un without Current Limit is initiated to break the
load free.
Kickstart Time is adjustable, 0.1–1sec. After this pulse the
voltage is ramped down to Starting Voltage setting
before ramping up again to full voltage according to the Start
Settings.
