CITY SERIES

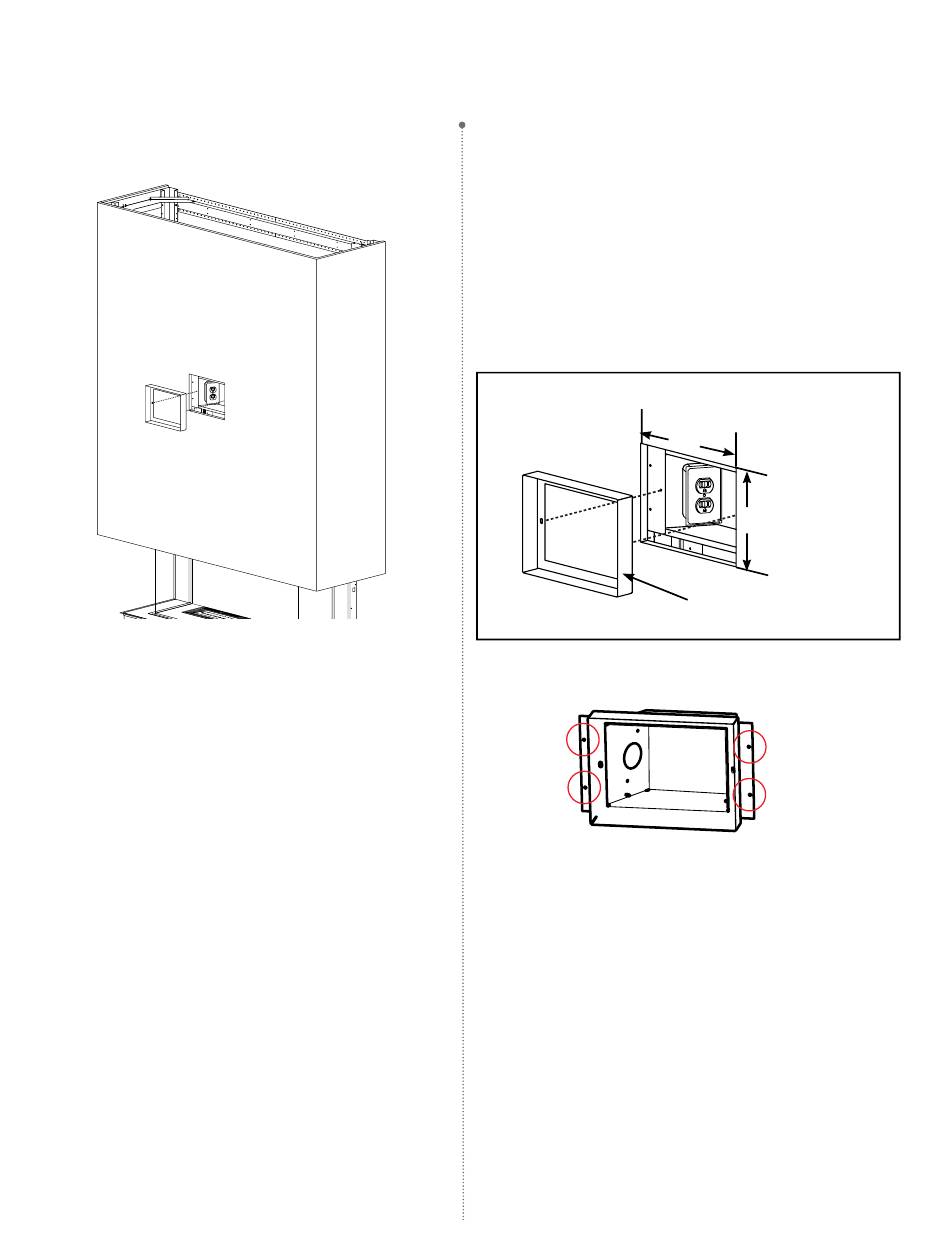

9. After applying the fi nishing material to the framing kit.—secure TV kit
trim piece with 2 screws as shown below.
Install trim with 2 screws
*See manual for minimum TV mounting height.
919-689b
10. When using wall fi nishes other than Regency's wall panels, in conjunction
with the compact/extended framing kit, adhere to the measurements
shown below, for the TV wiring kit.
Follow these instructions if choosing to use your own framing
materials.
11. Frame the opening 10" W x 7-5/8" H.
Note: The fi nishing trim kit for this TV box is 1-1/2" deep and designed to
be fl ush to the front of the fi nished material. The framed opening should
be 1-1/2 inches deeper compared to all other framing around the appli-
ance and minus the fi nished material thickness. (i.e.: If fi nished material
is 1/2" thick, the framed opening should be 1 inch deep.)
12. Secure TV box to framing with 2 screws per side. See below.
13. Repeat steps 3-8 for all electrical/PVR etc. connections.
14. After applying the fi nishing material to the framing kit - secure TV kit
trim piece with 2 screws as shown above. See step 9.
*See manual for minimum TV mounting height.
2
installation
10"
7-5/8"
1-1/2" deep trim kit
City Series CV40E-12 |
