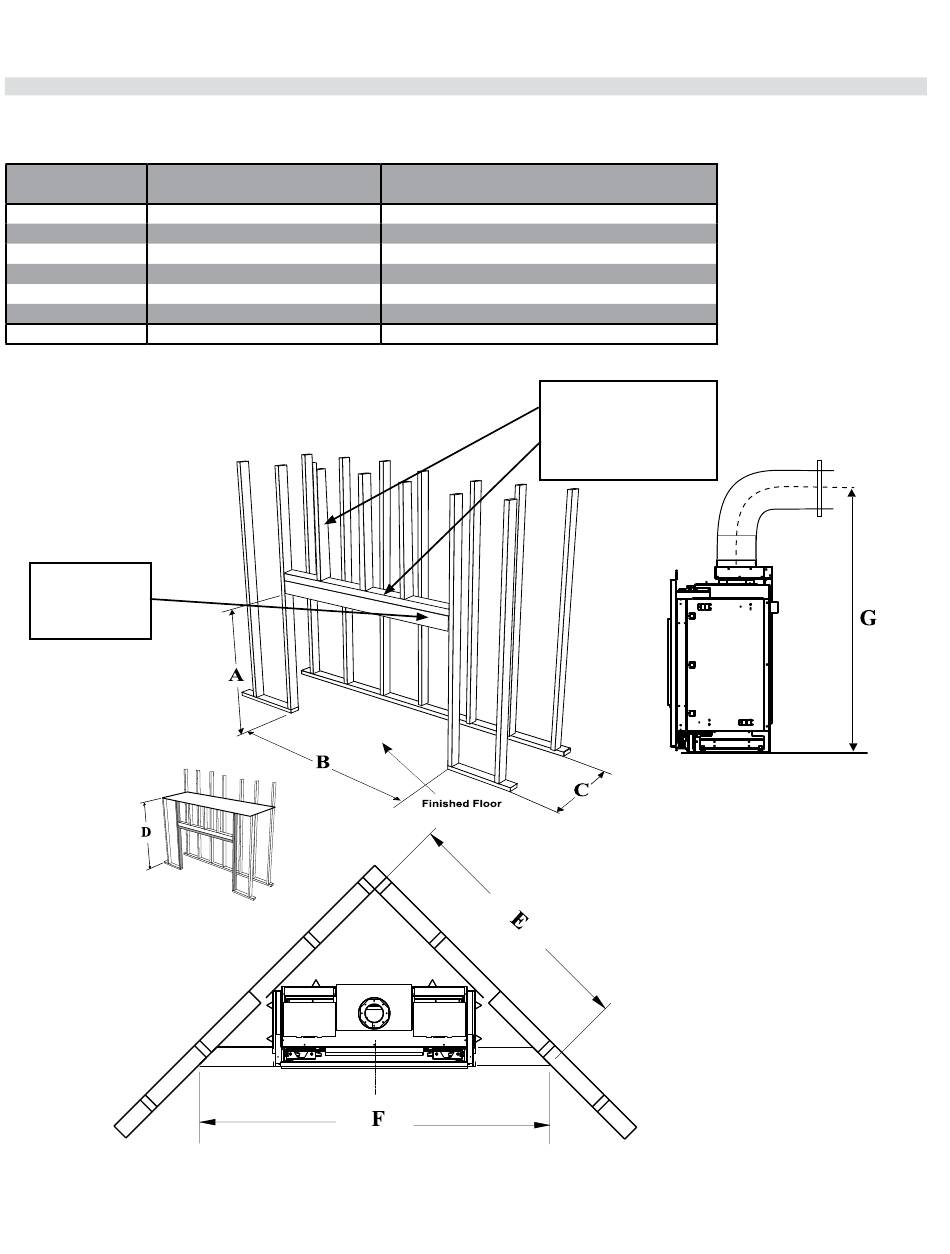

Framing Dimensions

NOTE: Framing may be constructed of combustible material (ie. 2 x 4)and does not require steel studs.
Framing
Description
Dimensions
A Framing Height
B* Framing Width
C* Framing Depth
D Minimum Height to Combustibles
E Corner Wall Depth
F Corner Facing Wall Width
G Vent Centerline Height
Note: A combined minimum of 120 square inches of open area is required for the convection
air outlet to cool the enclosure. Ensure clearances for Convection Air Outlets are met.
See clearances CV40E (single sided) in this manual as there are different methods as to
how this can be achieved.
Note: Wood
header on edge
may be 2'' x 4''
or 2'' x 6''.
Note: This appliance must be in-
stalled on a solid surface such as a
plywood floor which must be the full
width and depth of the appliance.
* The framing depth/width does not take into account dry wall/wood or similar materials against the back /side wall. The framing depth will need to change
based on the thickness of the material
(example: B - 46 3/4" framing width +1/2" drywall = 47 3/4")
(example: C - 19" framing depth +1/2" drywall = 19 1/2")
*
CV40E
37-3/8" (949mm)
46-3/4" (1187mm)
19" (483mm)
63"(1600mm)
55" (1396mm)
77-3/4" (1974mm)
56-1/4" (1429mm)
M a x i m u m m a t e r i a l
dimensions 2" x 4" for wood
studs in front. Studs behind
and to the side can be either
2'' x 4'' or 2'' x 6''.
*
installation
City Series CV40E-12 | 35
