CITY LINE

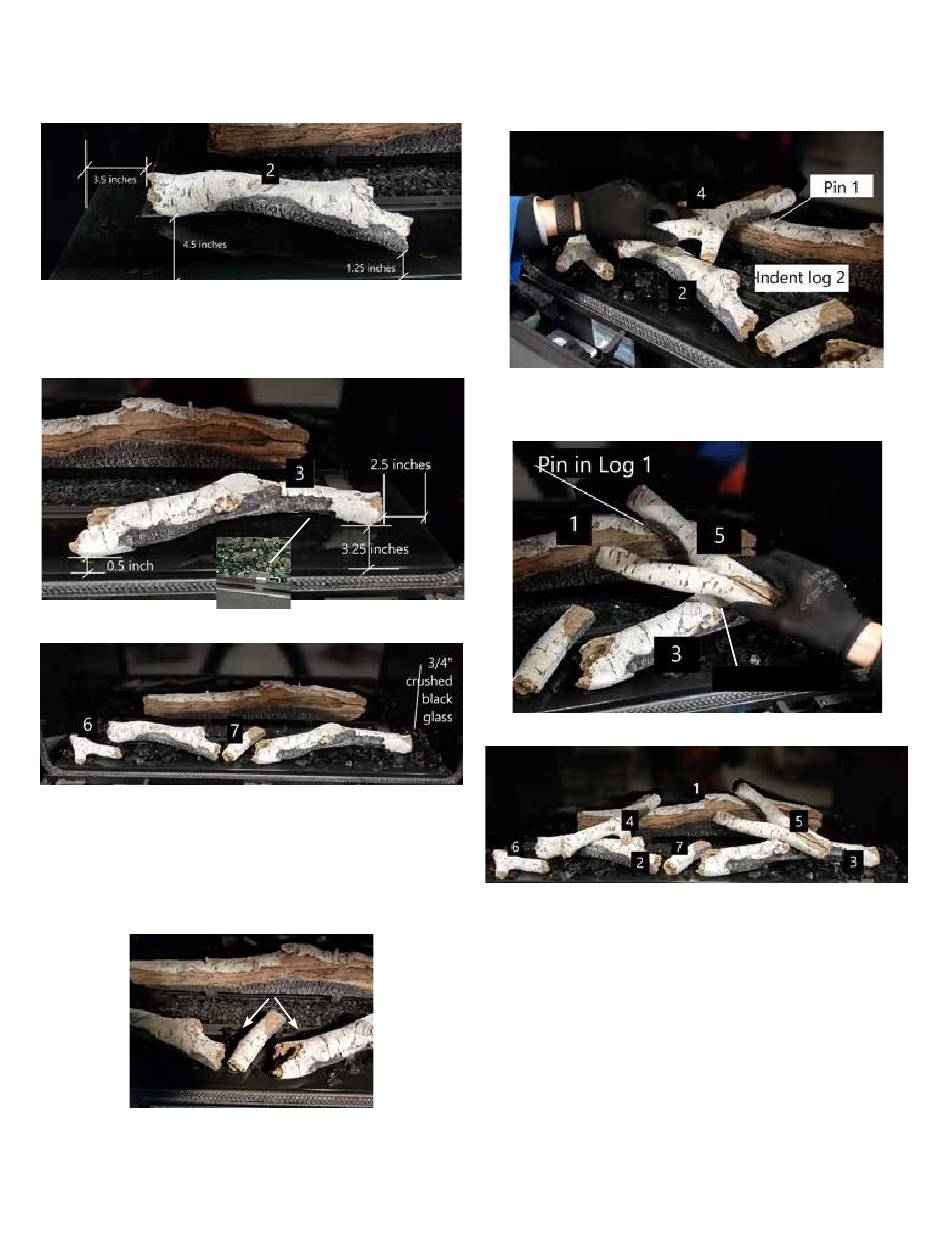

6. Place Log 1 on the top of the installed rear log guides. Follow the
measurements as shown below.
Log 2 in position
7. Position Log 2 as shown and follow the measurements.
8. Place Log 3 to the right front corner of the burner. Follow the measure-
ments as shown. Make the edge of the log sit on top of the log guide.
9. Place Log 6 and Log 7 on the burner locations shown below.
10. Before placing the next log—spread the optional media evenly
throughout the burner tray as shown.
NOTE: Ensure the installed optional media doesn't completely block the
air flow—ensure more than 50% of the airflow is open (shown with 3/4"
crushed black glass).
Do not completely
920-074
log guide
block air flow
11. Place Log 4—identify the pin locator and match with the left side
pin on Log 1. Rest the Log 4 on the indent in Log 2 as shown below.
12. Place Log 5—identify the pin locator and match with the right side
pin on Log 1. Rest the Log 5 on the indent in Log 3 as shown below.
2
installation
Log 3 Indent
Completed Install
City Series CV40E-12 | 75
02.28.19
