MODEL
Fuel Type
Minimum Supply Pressure
Manifold Pressure - High
Manifold Pressure - Low
Orifice Size -Altitude 0-4500 ft
Minimum Input
Altitude 0-4500 ft. (0-1372m)
Maximum Input
Altitude 0-4500 ft. (0-1372m)
Vent Sizing

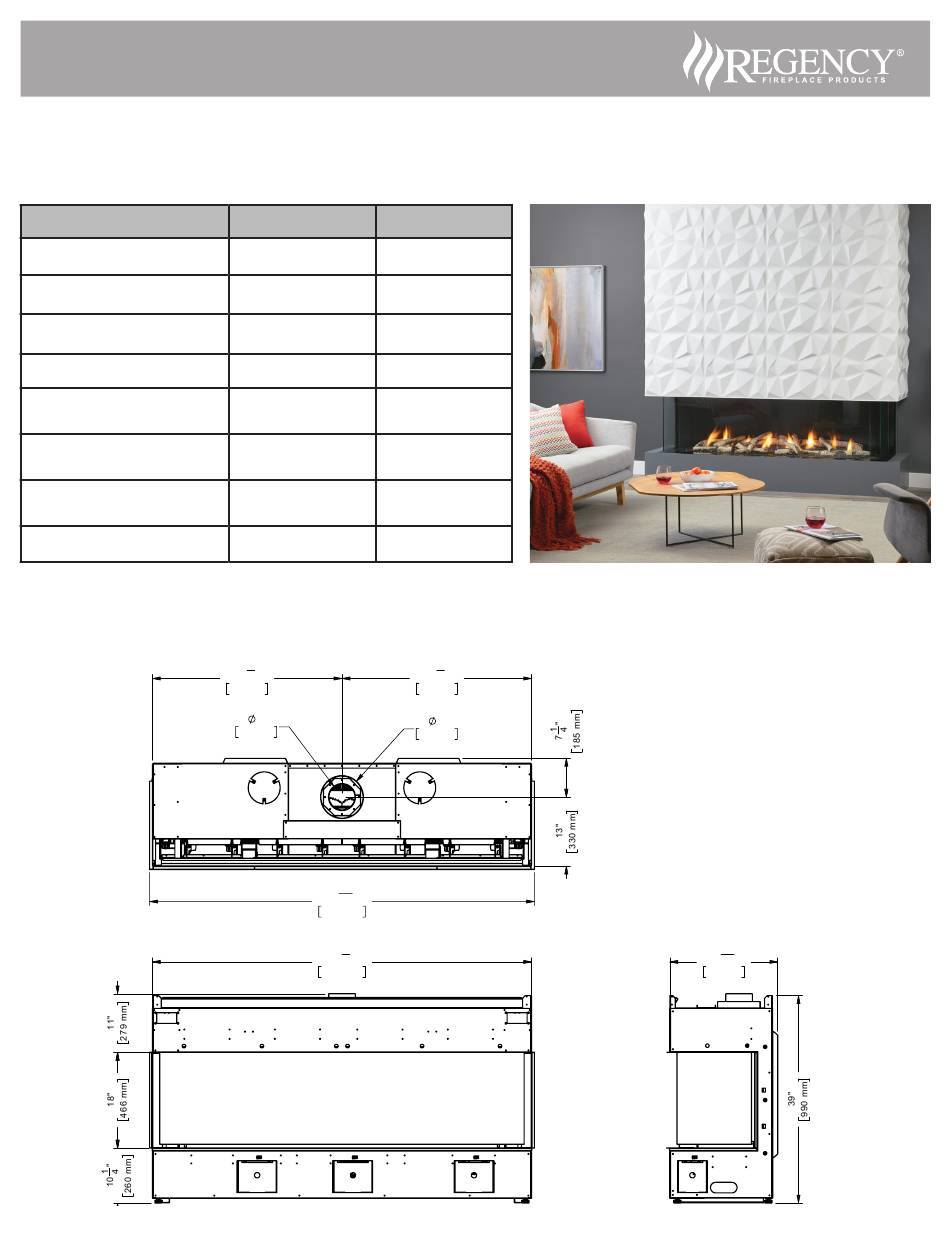

City Series CB60E Gas Fireplace
CB60E-NG
CB60E-LP
Natural Gas
5" W.C. (1.25 kPa)
11" W.C. (2.73 kPa)
10.5" W.C. (2.62
3.8" W.C. (0.94 kPa)
1.1" W.C. (0.27 kPa)
2.9" W.C. (0.72 kPa)
# 32 DMS
21,000 Btu/h
19,500 Btu/h
(6.15 kW)
39,000 Btu/h
36,000 Btu/h
(11.42 kW)
5" Inner / 8" Outer
5" Inner / 8" Outer
CB60E Dimensions - Bay Install
5
35
"
8
905 mm
5"
127 mm
5
72
"
16
1837 mm
1
71
"
4
1810 mm
Propane
kPa)
# 50 DMS
(5.71 kW)
(10.54 kW)
5
35
"
8
905 mm
8"
204 mm
5
20
"
16
515 mm
City Series CB60E | 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the City Series and is the answer not in the manual?

Questions and answers

Related Manuals for Regency City Series

Summary of Contents for Regency City Series

  • Page 1 City Series CB60E Gas Fireplace MODEL CB60E-NG CB60E-LP Fuel Type Natural Gas Propane Minimum Supply Pressure 5” W.C. (1.25 kPa) 11” W.C. (2.73 kPa) 10.5” W.C. (2.62 Manifold Pressure - High 3.8” W.C. (0.94 kPa) kPa) Manifold Pressure - Low 1.1” W.C. (0.27 kPa) 2.9” W.C. (0.72 kPa) Orifice Size -Altitude 0-4500 ft # 32 DMS # 50 DMS Minimum Input 21,000 Btu/h 19,500 Btu/h Altitude 0-4500 ft.
  • Page 2 CB60E Dimensions - (Corner Install) " " 905 mm 905 mm 5" 8" 127 mm 204 mm " 1837 mm " " 1810 mm 515 mm " 421 mm 2 | City Series CB60E...
  • Page 3 CLEARANCES CB60E (3-SIDED) The clearances listed below are Minimum distances unless otherwise stated: A major cause of chimney related fires is failure to maintain required clearances (air space) to combustible materials. It is of the greatest importance that this fireplace and vent system be installed only in accordance with these instructions. Flue Clearances to Combustibles Clearance: Dimension Measured From: Horizontal - Top 3" A1: Mantel Height (min.) Top of Fireplace Opening Horizontal - Side 2" A: From Floor (min.) 10-1/4" (260 mm) Bottom of Fireplace Opening Horizontal - Bottom 2" B: Sidewall (on one side) min.
  • Page 4 CLEARANCES CB60E (3-SIDED) opening opening Floor to ceiling with top opening Full framing with vents in front/sides or top opening opening Full framing with low vents in front or sides Full framing with vents in front or sides 4 | City Series CB60E...
  • Page 5 CLEARANCES CB60E (Corner Install) The clearances listed below are Minimum distances unless otherwise stated: A major cause of chimney related fires is failure to maintain required clearances (air space) to combustible materials. It is of the greatest importance that this fireplace and vent system be installed only in accordance with these instructions. Note: Left handed corner shown in illustration. Clearances will be the same for the right hand side. Flue Clearances to Combustibles Clearance: Dimension Measured From: Horizontal - Top 3" A: Mantel Height (min.) Top of Fireplace Opening Horizontal - Side 2" B: Opening Height 18" (457 mm) Bottom/Top of Fireplace Opening Horizontal - Bottom 2" C: From Floor (min.) 10-1/4" (260 mm) Bottom of Fireplace Opening Vertical 2" D: Sidewall (on one side) min. 39" (991 mm) Side of Fireplace Opening Passing through wall/ E: Mantel Depth (max.) Front of Fireplace Opening floor/ceiling - when 1-1/2" F: Alcove Depth 35" (889 mm) Front of Fireplace Opening...

  • Page 6: Mantel Leg Clearances

    MANTEL CLEARANCES CB60E (3-SIDED) Combustible mantel clearances from top of front facing are shown in the diagram on the right. 1/2" Drywall, wood, wood panel, etc. 12" (305mm) 9” 5 1/4" To Bottom of Top of Fireplace Fireplace Opening Opening 18-1/16"...
  • Page 7 FRAMING DIMENSIONS CB60E (3-SIDED) NOTE: Framing may be constructed of combustible material (ie. 2 x 4)and does not require steel studs. Framing Description CB60E Dimensions Framing Height 41-1/4" (1 048 mm) Framing Width 71-1/4" (1810 mm) Framing Depth 20-5/16" (516 mm) Minimum Height to Combustibles 81-1/4" (2038 mm) Vent Centerline Height 58-3/16" (1478 mm) Gas Connection Opening Height See gas connection location in this manual Gas Connection Height See gas connection location in this manual Gas Connection Inset-Centre Opening See gas connection location in this manual * Not in diagram below ** See manual for alternate Gas/ Electrical connection options Ensure that the wood base that the appliance will sit on is strong enough to support the full weight of this appliance. The overall weight of this appliance is 460 pounds (shipping weight). Note: A combined minimum of 180 square inches of open area is required for the convection air outlet to cool the enclosure. En- sure clearances for Convection Air...
  • Page 8 Framing Dimensions Corner Kit - Corner Install (Right Corner) NOTE: Framing may be constructed of combustible material (ie. 2 x 4)and does not require steel studs. Note: A combined minimum of 180 Framing Description Corner Kit square inches of open area is required Dimensions for the convection air outlet to cool Framing Height 41-1/4” (1048 mm) the enclosure. Ensure clearances for Convection Air Outlets are met. Framing Width 71-1/4" (1810 mm) See clearances CB60E in this manual Framing Depth 20-5/16" (516mm) as there are different methods as to Unit Base to Top Enclosure (Min.) 81-1/4"(2038 mm) how this can be achieved.
  • Page 9 Framing Dimensions Corner Kit - Corner Install (Left Corner) NOTE: Framing may be constructed of combustible material (ie. 2 x 4)and does not require steel studs. Note: A combined minimum of Framing 180 square inches of open area Description Corner Kit Dimensions is required for the convection air outlet to cool the enclosure. Framing Height 41-1/4” (1048 mm) Ensure clearances for Framing Width 71-1/4" (1810 mm) Convection Air Outlets are met. Framing Depth 20-5/16" (516mm) See clearances CB60E in this manual as there are different Unit Base to Top Enclosure (Min.) 81-1/4"(2038 mm) methods as to how this can be...
