Description
Attic Insulation Shield 12"
Attic Insulation Shield
- Cold Climates 36"
Basic Horizontal Termination Kit (A)
Horizontal Termination Kit (B)
Vertical Termination Kit
High Wind Vertical Cap
High Wind Horizontal Cap
Horizontal Square Termination Cap
Vertical Termination Cap
Storm Collar
Flashing - Flat Roof
Adjustable Flashing 0/12-6/12
Adjustable Flashing 6/12-12/12
Vinyl Siding Standoff
Vinyl Siding Shield Plate
Snorkel Termination 14"
Snorkel Termination 36"
Wall Firestop
* Not available from Regency
FPI
946-506/P Vent Guard (Optional) for AstroCap
**510-994 Rigid Pipe Adaptor (Must use with all rigid piping)
640-530/P Riser Vent Terminal
Note: When using Metal-Fab Sure Seal Rigid Piping - please note that the Adaptor (4DDA) must be used in conjunction with FPI Rigid Pipe Adaptor (510-994).

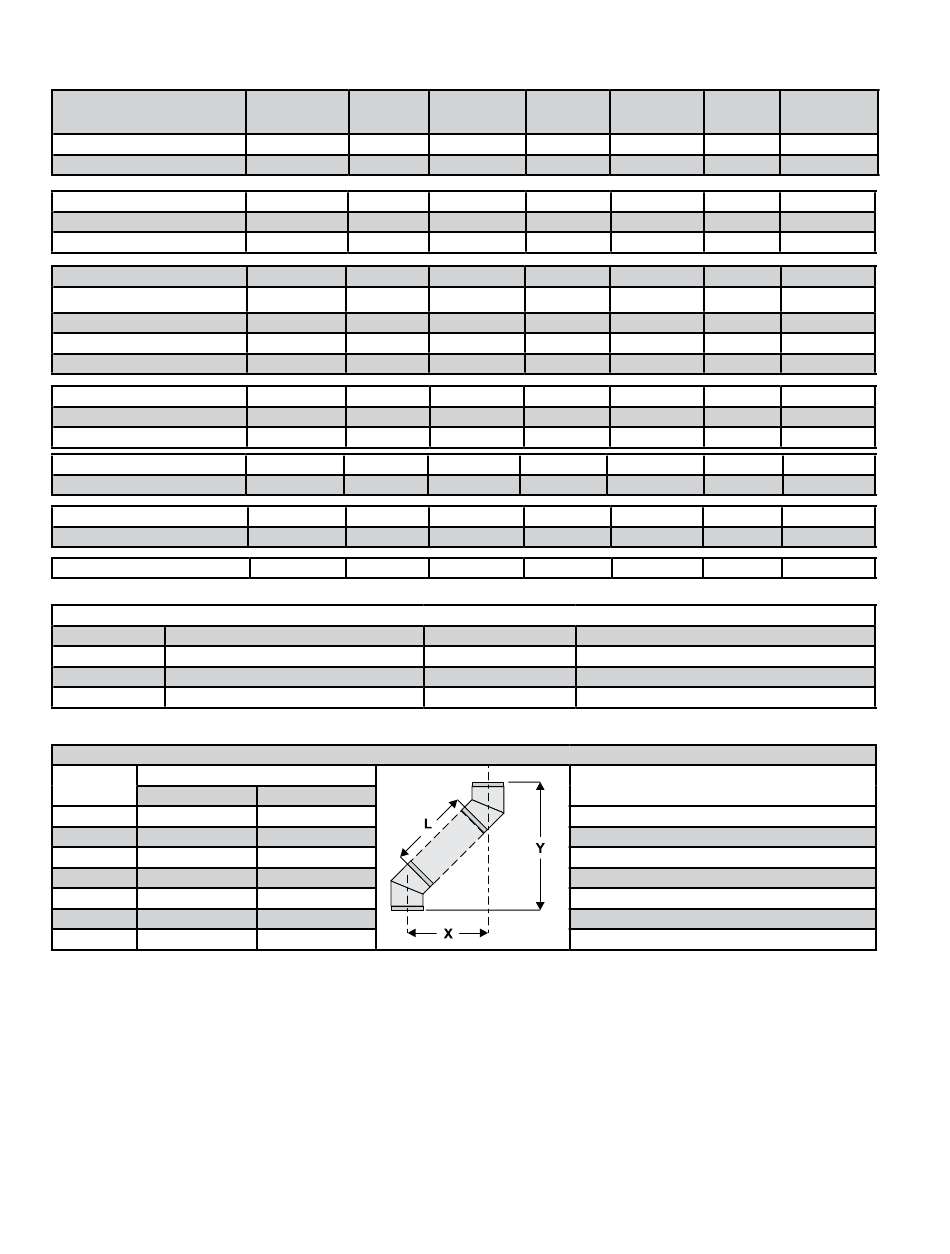

Offset Pipe Selection: Use this table to determine offset pipe lengths.
Pipe Length 4" x 6-5/8" Venting
(L)
Run (X)
0" (0mm) 4-7/8" (124mm)
6" (152mm) 8" (203mm)
9" (229mm) 10-1/8" (257mm)
12" (305mm) 12-1/4" (311mm)
24" (610mm) 20-5/8" (524mm)
36" (914mm) 29" (737mm)
48" (1219mm) 37-7/16" (951mm)
Note: Horizontal runs of vent must be level, or have a 1/4" rise for every 1 foot of run towards the termination.
Never allow the vent to run downward - this could cause high temperatures and may present a possible fire hazard.
*Selkirk
Simpson
Direct Temp™
Direct Vent Pro ®
46DVA-IS N/A
46DVA-KHA N/A
N/A 4DT-HKA
N/A 4DT-HKB
N/A 4DT-VKC
46DVA-VCH N/A
N/A N/A
46DVA-HC 4DT-HHC
46DVA-VC 4DT-HVC
46DVA-SC 4DT-SC
46DVA-FF N/A
46DVA-F6 4DT-ST14
46DVA-F12 4DT-ST36
46DVA-VSS 4DT-VS
N/A 4DT-VSP
46DVA-SNK14 N/A
N/A N/A
46DVA-WFS N/A
946-205
946-208/P
946-523/P
946-206
Rise (Y)
13-7/8" (340mm)
16-1/2" (419mm)
18-5/8" (473mm)
20-3/4" (527mm)
29-1/8" (740mm)
37-1/2" (953mm)
45-15/16" (1167mm)
*American Metal
*Metal-Fab™
Products® Sure Seal
Amerivent Direct
4DAIS12 DDIS
4DAIS12 N/A
4DHTK2 4DHTKA
4DHTK1 4DHTKB
4DHTK 4DHTK
N/A N/A
N/A N/A
4DHC 4DHT
4DVC 4DVT
4DSC 4DSC
N/A N/A
4D12S 4DF
4D36S 4DF12
N/A 4DVS SV4VS
N/A N/A SV4VS
N/A N/A
N/A N/A
N/A N/A
Vinyl Siding Shield for Riser Vent Terminal
Vent Guard (Optional) for Riser Vent Terminal
AstroCap Horizontal Cap
Vinyl Siding Standoff for AstroCap
For specific instructions on venting components - visit the
manufacturers website listed below.
Simpson Direct Vent Pro: www.duravent.com
Selkirk Direct-Temp: www.selkirkcorp.com
American Metal Products: www.americanmetalproducts.com
Metal-Fab Sure Seal: www.mtlfab.com
Security Secure Vent: www.securitychimneys.com
Industrial Chimney Company: www.icc-rsf.com
Olympia Ventis DV: www.olympiachimney.com
installation
*Security *ICC Excel *Olympia
Ventis DV*
Secure- Vent® Direct
SV4RSA N/A VDV-AIS04
N/A TM-4AS N/A
SV-SHK TM4-HTK VDV-KW04
SV-HK TM4-HTK VDV-K04
SV-FK N/A N/A
N/A TM-4VT VDV-VCHW04
N/A TM-4DHT N/A
SV4CHC-1 TM-4HT VDV-HC04
SV4CGV-1 N/A N/A
SV4FC TM-SC VDV-SC04
N/A N/A N/A
SV4STC14 TF-4FA VDV-F0406
SV4STC36 TF-4FB VDV-SSO
TM-VSS N/A
N/A N/A
N/A TM-4ST14 N/A
N/A TM-4ST36 N/A
N/A TM-4TR VDV-FS04
