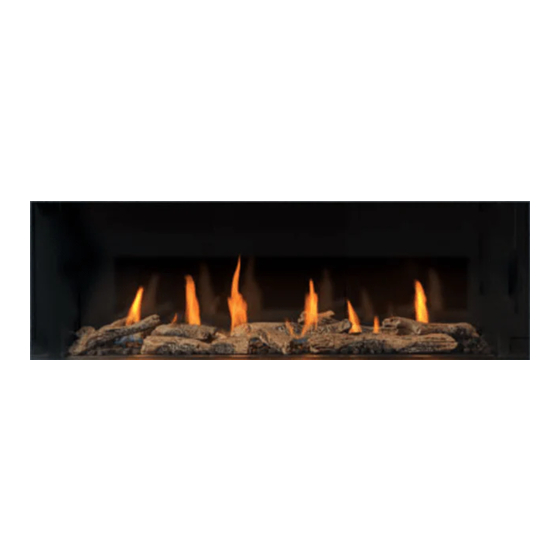

City Series CV50E Direct Vent Gas Fireplace
MODEL
Fuel Type
Minimum Supply Pressure
Manifold Pressure - High
Manifold Pressure - Low
Orifice Size -Altitude 0-4500 ft
Minimum Input
Altitude 0-4500 ft. (0-1372m)
Maximum Input
Altitude 0-4500 ft. (0-1372m)
Vent Sizing
CSA P.4.1.
NOTE: This model comes with a 5" inner and 8" outer collar (127 mm x 203 mm) which must be reduced to 4" inner x 6-5/8" outer
(102 mm x 168 mm) in all applications when used as a power vent system. See power vent manual for details.

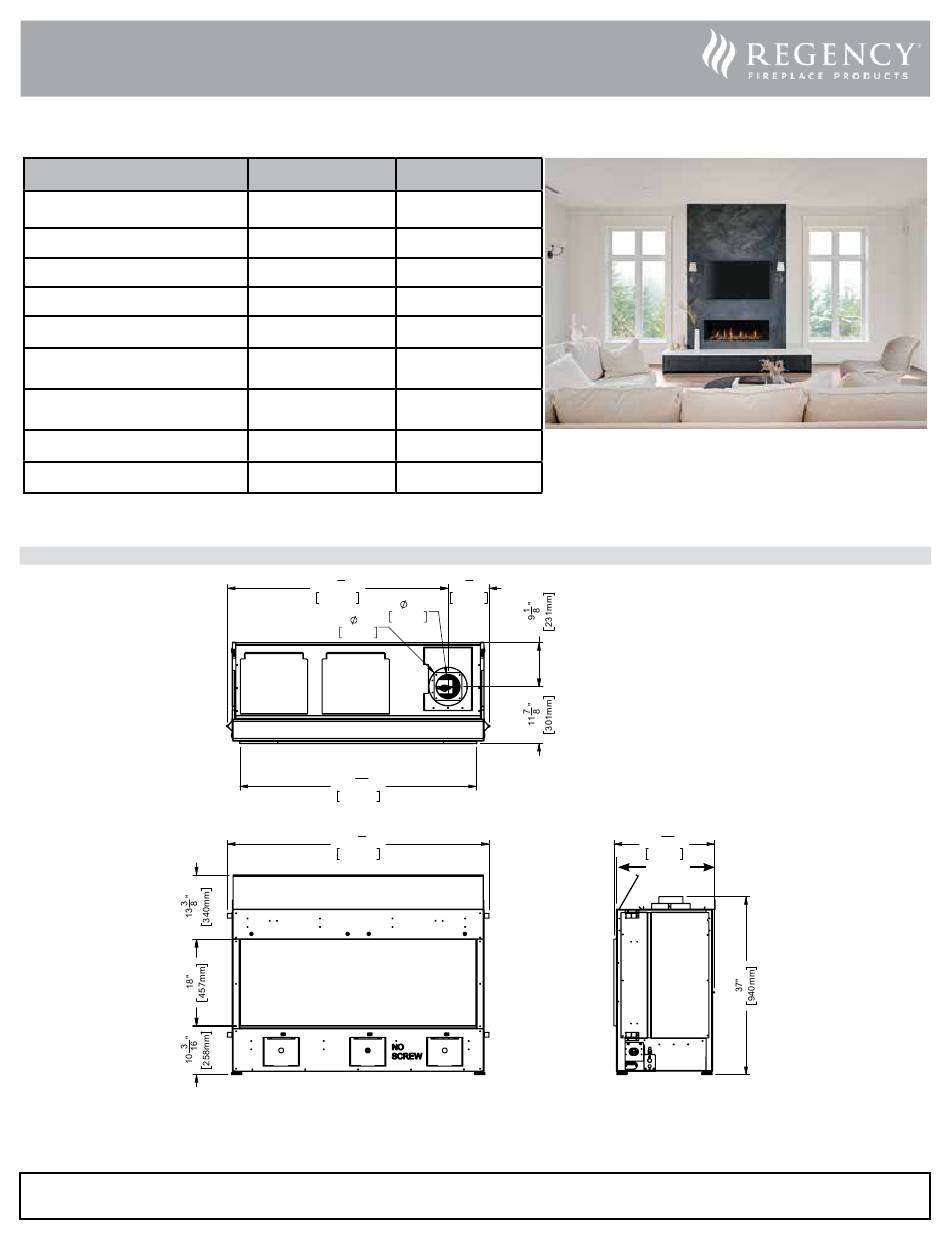

Dimensions
DIMENSIONS
PAGE 7
Note: Height Dimension is taken with leveling legs fully inserted and may vary depending on the height of the leveling legs, when unscrewed or extended.
Dimensions will appear as (inches)" / (metric) mm throughout this manual. The inches are rounded to the nearest 1/16" when converted, when greater
accuracy is required, use the metric dimensions.
Note: These units are non-load bearing.
ALL PICTURES / DIAGRAMS SHOWN THROUGHOUT THIS MANUAL ARE FOR ILLUSTRATION PURPOSES ONLY. ACTUAL PRODUCT MAY
VARY DUE TO PRODUCT ENHANCEMENTS.
CV50E-NG
CV50E-LP
Natural Gas
5" W.C. (1.25 kPa)
11" W.C. (2.73 kPa)
3.8" W.C. (0.94 kPa)
10.5" W.C. (2.62 kPa)
1.1" W.C. (0.27 kPa)
2.9" W.C. (0.72 kPa)
# 36 DMS
# 52 DMS
19,000 Btu/h
17,000 Btu/h
(5.56 kW)
(4.98 kW)
35,000 Btu/h
33,000 Btu/h
(10.25 kW)
(9.66 kW)
5" Inner / 8" Outer
5" Inner / 8" Outer
57.49%
7
45
"
8
1165mm
5"
127mm
8"
203mm
3
49
"
16
1249mm
3
54
"
8
1382mm
Propane
60.55%
1
8
"
2
216mm
City Series CV50E Direct Vent Gas Fireplace |
15
20
"
16
532mm
20-7/16''
(519 mm)
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the City Series and is the answer not in the manual?

Questions and answers

Ben
March 21, 2025

What is the eletrical specification for Cityseries cb50e direct vent go fireplace. Is it 15am 110v, circuit? Does it require a dedicated circuit?

Summary of Contents for Regency City Series

  • Page 1 Note: These units are non-load bearing. ALL PICTURES / DIAGRAMS SHOWN THROUGHOUT THIS MANUAL ARE FOR ILLUSTRATION PURPOSES ONLY. ACTUAL PRODUCT MAY VARY DUE TO PRODUCT ENHANCEMENTS. City Series CV50E Direct Vent Gas Fireplace |...
  • Page 2: Gas Connection - Bottom Of Unit

    " " " " 15mm 15mm 15mm " " 15mm " " " " " " 409mm 95mm 409mm 95mm 95mm 409mm 95mm 409mm RIGHT SIDE RIGHT SIDE LEFT SIDE LEFT SIDE | City Series CV50E Direct Vent Gas Fireplace...
  • Page 3 Electrical Connection - Side of Unit Electrical Connection - Side of Unit Electrical Connection - Side of Unit " 60mm " 145mm " " 314mm 60mm " RIGHT SIDE 145mm City Series CV50E Direct Vent Gas Fireplace | " 314mm...
  • Page 4 It is of greatest importance that this Sprinkler Side view fireplace and vent system be installed only in accordance with these instructions. Chase grill Side view Sprinkler Chase grill Side view Alcove Alcove Alcove | City Series CV50E Direct Vent Gas Fireplace City Series CV60E...
  • Page 5 Full framing with vents in front or 2 sides. The ventilation opening may only be placed above, on both sides and in front as shown above. Ventilation grills can never be placed behind the appliance. City Series CV50E Direct Vent Gas Fireplace |...
  • Page 6: Installation

    10” (254 mm) 10” (254 mm) 10” (254 mm) Allowable mantel 10” (254 mm) leg projection Allowable mantel leg projection Allowable mantel | City Series CV50E Direct Vent Gas Fireplace leg projection Allowable mantel leg projection | City Series CV60E...
  • Page 7: Framing Dimensions

    The framing depth will need to change based on the thickness of the material. Example: B - 54-3/8" framing width +1/2" drywall per side = 55-3/8") Example: C - 20-7/16" framing depth +1/2" drywall = 20-15/16") City Series CV50E Direct Vent Gas Fireplace |...
  • Page 8: City Series

    (76 mm - 89 mm) Ceiling Ceiling Stud Max 2” (51 mm) Top of chase enclosure Max 2” (51 mm) 51-1/2” (1308 mm) Chase Vent 51-1/2” (1308 mm) Stud Chase Vent Stud | City Series CV50E Direct Vent Gas Fireplace...
  • Page 9: Recessed Install

    See Mantel clearance in manual Screws must not penetrate unit more MAX DEPTH 36" (914 MM) than 1/2". HEARTH Adhere to "No Screw" zones painted on unit Glue can be used as an alternative City Series CV50E Direct Vent Gas Fireplace |...
  • Page 10 Note: The TV mounting bracket cannot be secured directly to the appliance. It must be secured to framing. The TV depicted in the picture may need to be higher depending on the style of TV mounting bracket used. | City Series CV50E Direct Vent Gas Fireplace...
  • Page 11 5. Flex system can only be used up to a maximum Vent Guard - if required* continuous vent length of up to 10 feet. If longer runs (Part #946-604/P) are required, rigid pipe must be used. 5" (127 mm) 8" (203 mm) City Series CV50E Direct Vent Gas Fireplace |...
  • Page 12 1-3/8"(35mm) french Vinyl Siding and fasten with the 3 screws. Wall Thimble Screws Fourrures en bois Diagram 2 | City Series CV50E Direct Vent Gas Fireplace...
  • Page 13 • Must use optional rigid pipe adapter (part# 770-994) when using rigid pipe venting systems. • For horizontal terminations, the Regency direct vent flex system may be used for installations with a maximum continuous vent length of up to 10 feet.
  • Page 14: Flat Wall Installation

    Metal Products Ameri Vent Direct Vent, Security Secure Vent , ICC Excel, Selkirk Direct-Temp. AstroCap is a proprietary trademark ® of FPI Fireplace Products International Ltd. Dura-Vent® and Direct Vent are registered and/or proprietary trademarks of Simpson Dura-Vent Co. Inc. | City Series CV50E Direct Vent Gas Fireplace...
  • Page 15 Failure to do so may Diagram 4 result in drafting or performance issues not covered under warranty. *As specified in CSA B149 Installation Code. Local codes or regulations may require different clearances. City Series CV50E Direct Vent Gas Fireplace |...
  • Page 16: Horizontal Terminations

    Restrictor Set 0 - Factory Setting 6' Min. 5' Max. 11' Min. 8' Max. required. 7' Min. 6' Max. 12' Min. 9' Max. Restrictor Set 0 - Factory Setting | City Series CV50E Direct Vent Gas Fireplace...
  • Page 17: Vertical Terminations

    , ICC Excel, Olympia Ventis DV, Selkirk Direct-Temp. AstroCap is a proprietary trademark ® of FPI Fireplace Products International Ltd. Dura-Vent® and Direct Vent are registered and/or proprietary trademarks of Simpson Dura-Vent Co. Inc. City Series CV50E Direct Vent Gas Fireplace |...
  • Page 18 Set 0 through to Set 5, if required. For vertical terminations, the Regency Direct Vent Flex System may be used for installations with a maximum vent length of up to 40 feet including offsets. If longer runs are required, Vent restrictor on rigid pipe must be used.
  • Page 19 Please note min. 1 foot between 6' Min. 7' Max 9' Min. elbows is 7' Min. 8' Max 10' Min. required. Lengths do not include elbow indicated Restrictor Set 0 - Factory Setting City Series CV50E Direct Vent Gas Fireplace |...
  • Page 20: Vertical Termination

    4 screws/nails. If more than one is required, these can be purchased separately. The ceiling firestop/firestop spacer may be cut down to size if this shield is too high for the application. 11" Ceiling firestop Diagram 2 920-385 Page 1 04.29.21 | City Series CV50E Direct Vent Gas Fireplace...
  • Page 21 Note: Any closets or storage spaces which the vent passes through must be enclosed. Diagram 3a Diagram 3a Diagram 3a 920-328 09.18.20 City Series ACB60E | 61 920-328 09.18.20 City Series ACB60E | 61 920-385 Page 2 04.29.21 City Series CV50E Direct Vent Gas Fireplace |...
  • Page 22 (0.91 m) to avoid excessive stress and sagging of the vent pipe. Wall straps are provided (3 in total) for this purpose. All round/plumbers strapping may also be used if further supports are required. | City Series CV50E Direct Vent Gas Fireplace...
  • Page 23 Diagram 1a The ceiling firestop/firestop spacer may be cut Diagram 1a Ceiling firestop down to size if it is too high for the application. Diagram 1a City Series CV50E Direct Vent Gas Fireplace | 920-328 920-337 10.05.20 10.05.20 920-338 10.05.20...
  • Page 24 * Clearance in accordance with local installation codes and the requirements of the gas supplier 3 feet (91cm) within a height of 15 feet (4.5m) above the meter / regulator assembly 3 feet (91cm) above - if within 10 feet (3m) horizontally | City Series CV50E Direct Vent Gas Fireplace...
  • Page 25 Vertical Terminations (Inline): Only Simpson Duravent rigid pipe is approved for use. Must use the 46DVA-VCH vertical high wind cap as this is the only approved cap. Components from different Manufacturers may not be mixed. Not all rigid pipe components are available directly from Regency.
  • Page 26 Metal-Fab Sure Seal: www.mtlfab.com 24” (610mm) 20-5/8” (524mm) 29-1/8” (740mm) Security Secure Vent: www.securitychimneys.com 36” (914mm) 29” (737mm) 37-1/2” (953mm) Industrial Chimney Company: www.icc-rsf.com 48” (1219mm) 37-7/16” (951mm) 45-15/16” (1167mm) Olympia Ventic DV: www.olympiachimney.com | City Series CV50E Direct Vent Gas Fireplace...
  • Page 27: Vent Restrictor Position

    Part # of the Power Vent System manual is 920-544. Minimum Vent Clearances to Combustibles Horizontal Top 3" (76mm) Horizontal Side 2 " (51mm) Horizontal Bottom 2" (51mm) Vertical Vent 2" (51mm) Power Vent System Manual City Series CV50E Direct Vent Gas Fireplace |...
  • Page 28 Vent Restrictor Position No vent restrictor required. No vent restrictor required. Set 0 Set 0 Fully open Fully open Factory Set Factory Set 3 1 8 " | City Series CV50E Direct Vent Gas Fireplace 920-210b 09.22.20 3 1 8 "...
  • Page 29 • • Minimum 4' (1.2 m) from the unit prior to terminating. Minimum 4' (1.2 m) from the unit prior to terminating. Vent Restrictor Position No vent restrictor required. Set 0 Fully open Factory Set City Series CV50E Direct Vent Gas Fireplace | 3 1 8 "...
  • Page 30 THIS DRAWING IS THE PROPERTY OF FPI LTD., IT MAY NOT BE COPIED IN W nit to inline PV Min. 2' (0,61 m) from inline PV to termination cap Min. 4' (1.22 m) from top of unit to inline PV | City Series CV50E Direct Vent Gas Fireplace 920-210b 09.22.20...
