Extended View Panel Installation

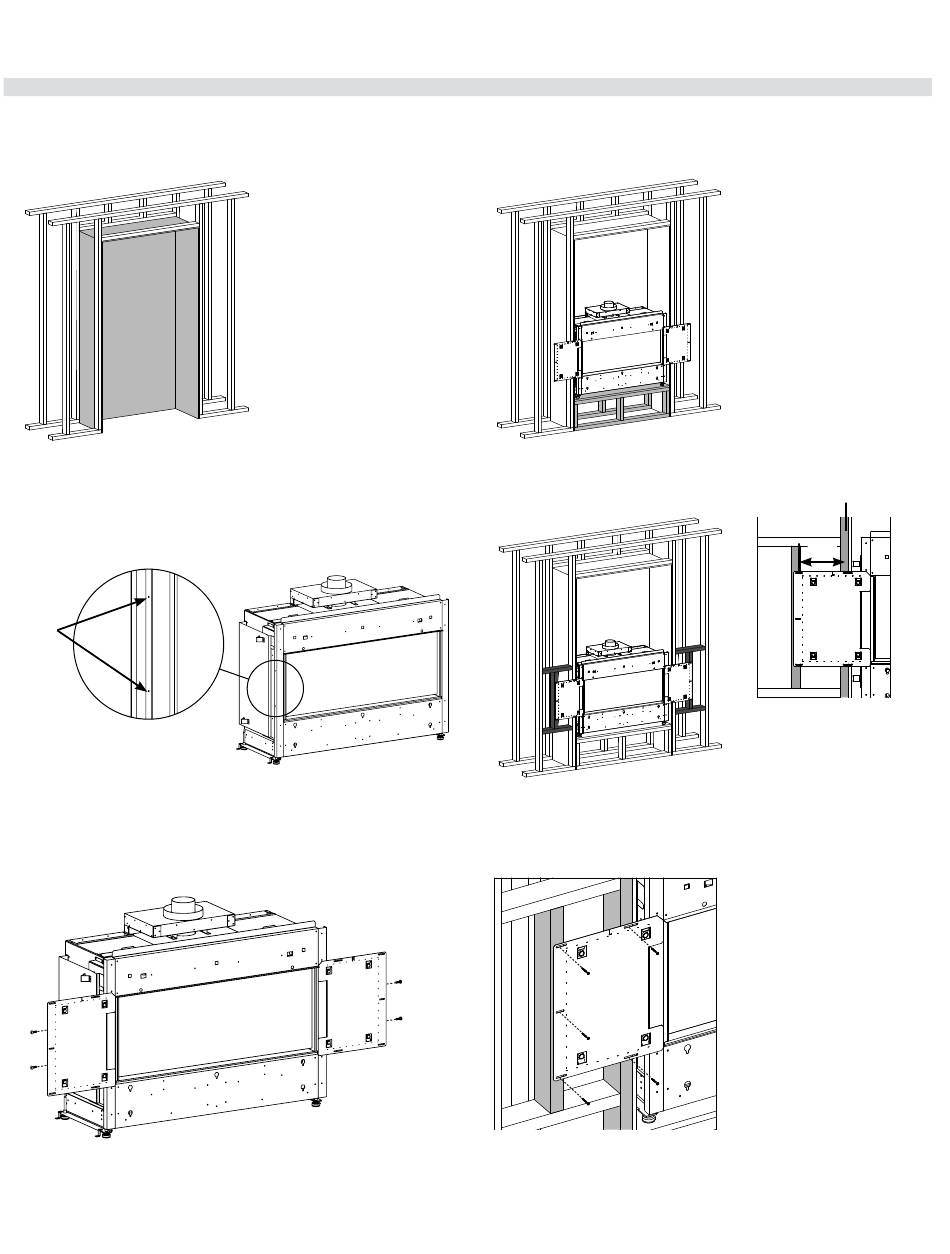

EXTENDED VIEW PANEL INSTALLATION
1. Construct the sealed rear enclosure to specified width shown below
and desired height (see unit manual for detailed framing instructions).
2. Locate mounting holes in locations shown below and remove nailing
strips (if already installed). Remove drywall finishing edge from right
and left side of window opening, using supplied right-angle screw-
driver.
Mounting
holes
3. Attach left and right base panels using 2 screws on each side. Re-
move drywall finishing edge from right and left side of window open-
ing using supplied right-angle screwdriver.
Attach base panels
Enclosure width:
CV40E - 46-3/4"
CV72E - 78"
4. Move unit into framed opening at desired height and level unit on all
sides. Connect gas and electrical (see manual).
5. Install a second stud as shown. The distance from first to second
stud should be 8-1/2".
Install second stud--8.5" out from first stud
6. Secure base panels in place with 5 screws on each side.
Secure base panels
CITY SERIES
installation
8-1/2"
8.5" from stud center to
stud center
City Series CV40E-12 |
69
