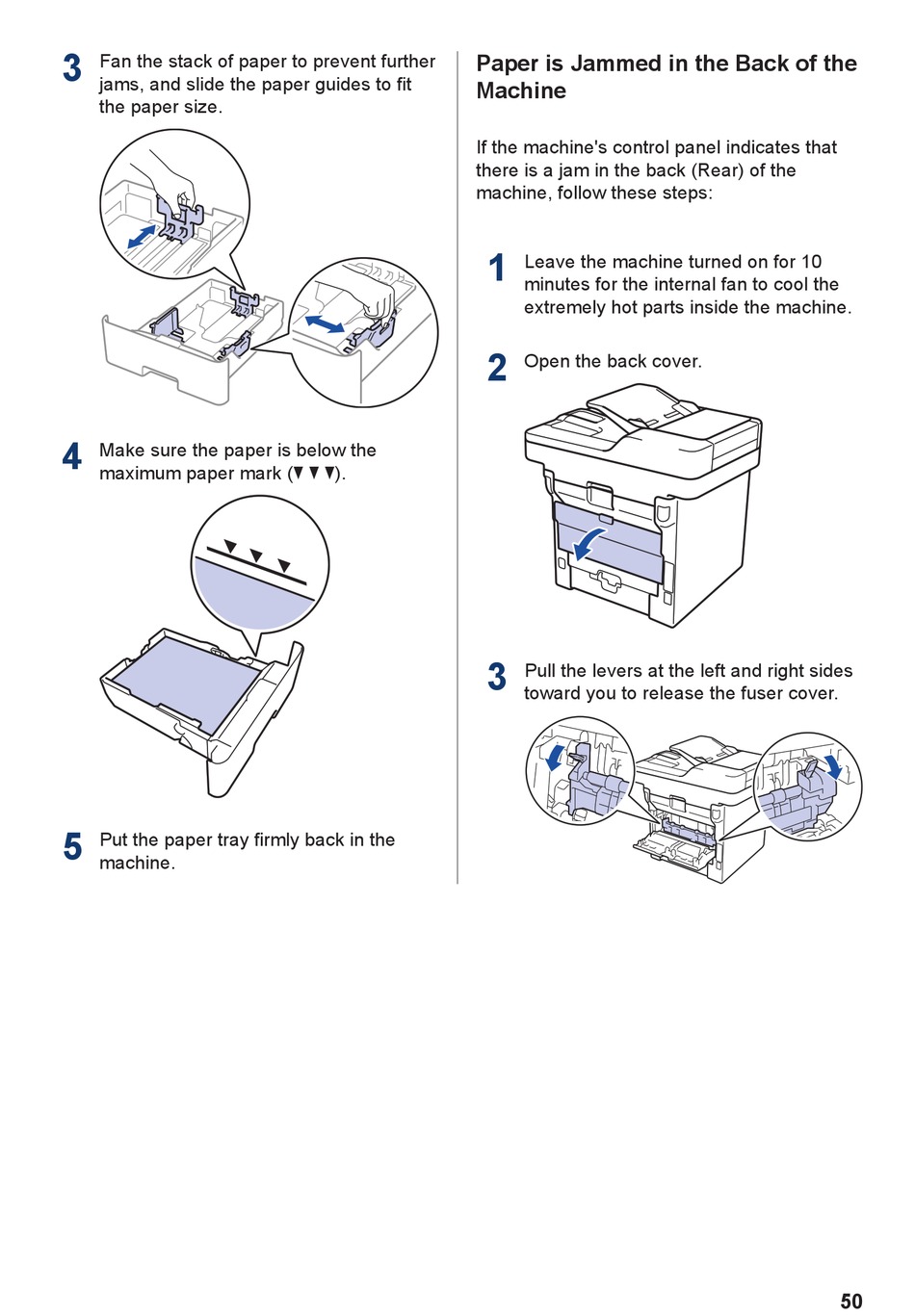

Develop ineo 5020i User Manual page 56

3
Fan the stack of paper to prevent further
jams, and slide the paper guides to fit
the paper size.
4
Make sure the paper is below the
maximum paper mark (b b b).
5
Put the paper tray firmly back in the
machine.
Paper is Jammed in the Back of the
Machine
If the machine's control panel indicates that
there is a jam in the back (Rear) of the
machine, follow these steps:
1
Leave the machine turned on for 10
minutes for the internal fan to cool the
extremely hot parts inside the machine.
2
Open the back cover.
3
Pull the levers at the left and right sides
toward you to release the fuser cover.
50
