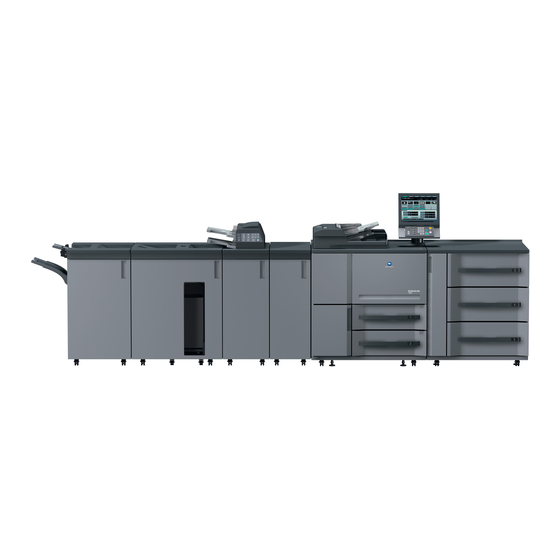

Develop ineo 1051 Product Manual
  1. Manuals
  2. Brands
  3. Develop Manuals
  4. All in One Printer
  5. ineo 1051
  6. Product manual

Develop ineo 1051 Product Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Product Guide
ineo 1051/1200
15.10.09

Advertisement

Table of Contents
loading

Related Manuals for Develop ineo 1051

Summary of Contents for Develop ineo 1051

  • Page 1 Product Guide ineo 1051/1200 15.10.09...

  • Page 2: Table Of Contents

    Product Guide ineo 1051/1200 Table of contents Product Basic ......................... 3 System Configuration ......................4 Engine Specifications ......................7 Print Controller........................12 Scanner Function ........................ 14 System Options Specifications ..................15 Consumables........................37 Article Numbers ........................38 Service Part........................... 40...

  • Page 3: Product Basic

    Product Guide ineo 1051/1200 Mirage-M2 Mirage-M1 Development Code Monochrome digital MFP Classification Console type Type ineo 1051 ineo 1200 Proposed model name Successor model for 09/09 Estimated sales start KM bizhub PRO 1051 KM bizhub PRO 1200 Also available as Max.

  • Page 4: System Configuration

    Product Guide ineo 1051/1200 Approved configurations...
  • Page 5 FS-521 – PB-503 – SD-506 – FD-503 – RU-506 – PI-PFU – ineo 1200(1051) – PF-703 – PF-702/703 FS-521 – LS-505 – FD-503 – ineo 1051 – PF-702/703 FS-521 – LS-505 – RU-506 – GP-501 – PI-PFU – ineo 1200(1051) – PF-702/703...
  • Page 6 FS-521 – SD-506 – RU-506 – GP-501 – PI-PFU – ineo 1200(1051) – PF-703 – PF-702/703 PB-502 – LS-505 – FD-503 – ineo 1051 – PF-702/703 PB-502 – SD-506 – LS-505 – RU-506 – PI-PFU – ineo 1200(1051) – PF-703 – PF-702/703...

  • Page 7: Engine Specifications

    Product Guide ineo 1051/1200 Engine Specifications Print process Print method LED electrostatic copying system Type of drum OPC (Organic Photo Conductor) Dry, 2 component Development method Turnover magnetic brush developing Image transfer method Belt transfer Fusing method Heat roller fusing...
  • Page 8 Product Guide ineo 1051/1200 Main trays Paper Standard size: SRA3, A3, B4, A4, SRA4S, A4S, B5, B5S, A5, Postcard, 12”x18”, 11”x17”, 8.5”x14”, 8.5”x11”, 8.5”x11”S, 9”x11”, 8.5”x13”, 8.25”x13”, 8.125”x13.25”, 8”x13”, 5.5”x8.5” Wide size: A3W, B4W, A4W, A4SW, B5W, B5SW, A5W, 12”x18”W, 11”x17”W, 8.5”x11”W, 8.5”x11”SW, 5.5”x8.5”W...
  • Page 9 Product Guide ineo 1051/1200 Leading edge: 3 mm or less, trailing edge: 2 mm or less, Void area (Frame area) Right / left edge: 2 mm or less CD direction: 313.9 mm (1200 dpi: 14834 dot, 600 dpi: 7417 dot)
  • Page 10 Product Guide ineo 1051/1200 Operation panel Vertical type, 10-key / function keys / 15 inch 38cm colour LCD touch panel Image memory 768 MB (DRAM) + 160 GB (HDD) Memory size HDD: 160 GB (40 GB used for RawHDD, 120 GB for Box storage.)
  • Page 11 Power Consumption in 550 W or less ineo 1200: 400 W or less Low Power mode Ineo 1051: 355 W or less Transition time to Low (adjustable between 5 and 240 min) 15 min Power mode Recovery time from Low...

  • Page 12: Print Controller

    Product Guide ineo 1051/1200 Document Feeder (ADF) General Type Sheet through type Face-up setting Automatic Feeder Applied machine ineo 1051/1200 Installation Standard with main body Specifications Power source DC24 ( ±10% ); 5,1V ( ±10% ) (Supplied from the main frame)
  • Page 13 Product Guide ineo 1051/1200 Build-in type Type 1200 x 1200 dpi Resolution Ethernet 1000BASE-T / 100BASE-TX / 10BASE-T Interface IPv6, USB2.0 (not for printing) Port 9100 Ethernet port TCP/IP (LPR, RAW socket), IPX/SPX (NDS, Bindery), NetBEUI, IPP, Ether Network protocol...

  • Page 14: Scanner Function

    Product Guide ineo 1051/1200 Network Scanner function Original type Sheet / Book / Solid objects Max. original size A3 (297 x 420 mm) / 11”x17” (279.4 x 432 mm) Thickness: Max. 30 mm Solid object Weight: Max. 6.8 kg Original feed base...

  • Page 15: System Options Specifications

    Product Guide ineo 1051/1200 PF-702 – Paper Feed Unit PF-702 Product Name Large Capacity Tray with friction feed technology, installation to main body Type Plain, High Quality, Colour, Coated, Rough, Label, Recycle (40 – 350g/m²) Kinds of Paper Middle tray: 301-350g/m²...
  • Page 16 Product Guide ineo 1051/1200 PF-703 - Paper Feed Unit PF-703 Product Name Large Capacity Tray with vacuum feed technology, installation to main body Type Plain, High Quality, Color, Coated, Rough, Label, Recycle (40 - 350g/m²) Kinds of Paper Middle tray: 301-350g/m²...
  • Page 17 Durability RU-506 - Relay Unit Conveyor unit with paper cooling functionality Type ineo 1200 Configuration ineo 1051 (systems with PI-PFU and/or GP-501) Other specifications Power supply DC24V,5V (from main engine) Power Consumption Dimensions (WxHxD) 350 x 1020 x 775 mm...
  • Page 18 Product Guide ineo 1051/1200 FS-521 Staple Finishing Unit 100-sheet staple finisher with staple cutting mechanism and large capacity Type output tray 2 output trays Modes: Staple Configuration Straight, Shift, Sub-tray output Consumables: Staple needles (1 cartridge, 5000 needles) Other specifications...
  • Page 19 Product Guide ineo 1051/1200 <Uncoated paper> 50 – 71 g/m²: 100 sheets (50 sheets, if length ≥400) 72 – 81 g/m²: 100 sheets (50 sheets, if length ≥400) 82 – 91 g/m²: 60 sheets (50 sheets, if length ≥400) 92 –130 g/m²: 50 sheets 131 -161 g/m²:...
  • Page 20 Product Guide ineo 1051/1200 40 to 350 g/m² Media weight g/m² / Size Big size Small size Minimum size 41 to 71 g/m² 72 to 81 g/m² 1500 3000 (1500) 82 to 91 g/m² 1000 2000 (1500) 92 to 130 g/m²...
  • Page 21 Product Guide ineo 1051/1200 SD-506 Booklet Making Unit Saddle stitch/fold and staple device Type 2 output trays Modes: Staple Configuration Straight, Shift, Sub-tray output Consumables: Staple needles (1 cartridge, 5000 needles) Other specifications Internal Power supply 5V (supplied by Main engine)
  • Page 22 Product Guide ineo 1051/1200 Trim functionality A3, B4, A4S, B5S, SRA3, SRA4S, Foolscap (8”x13”), (8-1/4”x13”), (8-1/2”x13”), (8-1/8”x13-1/4”), 12”x18”, Ledger (11”x17”), Legal (8-1/2”x14”), Letter (8-1/2”x11”)S, Executive (7-1/4”x10-1/2”)S, Media size 8K, 16KS, ISOB4, Free paper, Wide paper Min: 182 x 257 mm / Max: 324 x 463 mm Media weight 50 to 244 g/m²...
  • Page 23 Product Guide ineo 1051/1200 Straight output functionality (Sub-tray) A3, B4, A4, A4S, B5, B5S, A5, A5S, B6S, A6S, Postcard-S, SRA3, SRA4, SRA4S, Foolscap (8”x13”), (8-1/4”x13”), (8-1/2”x13”), (8-1/8”x13-1/4”), 13”x19”, 12”x18”, Ledger (11”x17”), Legal (8-1/2”x14”), Letter (8-1/2”x11”), Letter (8-1/2”x11”)S, Media size Invoice (5-1/2”x8-1/2”), Invoice (5-1/2”x8-1/2”)S, 9”x11”, Executive (7-1/4”x10-1/2”), Executive (7-1/4”x10-1/2”)S,...
  • Page 24 Product Guide ineo 1051/1200 FD-503 Folding and Punching Unit Punch and multi-fold finishing device with Post inserter function Type Punch / Fold / Post inserter function Configuration Other specifications Internal Power supply 5V (supplied by Main engine) Power Consumption 180VA (WxHxD) 400 x 1231 x 723 mm (excl.
  • Page 25 Product Guide ineo 1051/1200 Fold functionality Center fold / letter-fold-in / letter-fold-out / Z-fold / Double-parallel fold / gate Fold types fold A3, B4, A4S, SRA4S, 12”x18”, Ledger (11”x17”), Legal (8-1/2”x14”), Letter (8-1/2”x11”)S, Media size Free paper Min: 210 x 279 mm / Max: 305 x 458 mm Center fold / letter-fold-in / letter-fold-out / Z-fold: 50 to 130 g/m²...
  • Page 26 Product Guide ineo 1051/1200 Straight output functionality (Main tray) A3, B4, A4, A4S, B5, B5S, A5, A5S, B6S, SRA3, SRA4, SRA4S, Foolscap (8”x13”), (8-1/4”x13”), (8-1/2”x13”), (8-1/8”x13-1/4”), 13”x19”, 12”x18”, Ledger (11”x17”), Legal (8-1/2”x14”), Letter (8-1/2”x11”), Letter (8-1/2”x11”)S, Invoice (5-1/2”x8-1/2”), Invoice (5-1/2”x8-1/2”)S, 9”x11”, Media sizes Executive (7-1/4”x10-1/2”), Executive (7-1/4”x10-1/2”)S,...
  • Page 27 Product Guide ineo 1051/1200 Straight output functionality (Sub-tray) A3, B4, A4, A4S, B5, B5S, A5, A5S, B6S, A6S, Postcard-S, SRA3, SRA4, SRA4S, Foolscap (8”x13”), (8-1/4”x13”), (8-1/2”x13”), (8-1/8”x13-1/4”), 13”x19”, 12”x18”, Ledger (11”x17”), Legal (8-1/2”x14”), Letter (8-1/2”x11”), Letter (8-1/2”x11”)S, Invoice (5-1/2”x8-1/2”), Invoice (5-1/2”x8-1/2”)S, 9”x11”, Executive (7-1/4”x10-1/2”), Executive (7-1/4”x10-1/2”)S,...
  • Page 28 Product Guide ineo 1051/1200 LS-505 Large Stacking Unit Large capacity, horizontal stacker type with gripper conveyor Type Other specifications Internal Power supply 5V (supplied by Main engine) Power Consumption 143VA Dimensions (WxHxD) 785 x 1020 x 723 mm (excl. Main tray)
  • Page 29 Product Guide ineo 1051/1200 By trolley, after opening front door. Paper take-out Sub-tray functionality A3, B4, A4, A4S, B5, B5S, A5, A5S, B6S, A6S, Postcard-S, SRA3, SRA4, SRA4S, Foolscap (8”x13”), (8-1/4”x13”), (8-1/2”x13”), (8-1/8”x13-1/4”), 13”x19”, 12”x18”, Ledger (11”x17”), Legal (8-1/2”x14”), Letter (8-1/2”x11”), Letter (8-1/2”x11”)S, Media size Invoice (5-1/2”x8-1/2”), Invoice (5-1/2”x8-1/2”)S, 9”x11”,...
  • Page 30 Product Guide ineo 1051/1200 GP-501 - Smart (GBC) Punch Unit Optional stream punch unit for installation Type Configuration Installed to main unit (requires RU-506 also for ineo 1051) Other specifications Power supply 230V/50Hz Power Consumption 220-240V/1.8A Dimensions (WxHxD) 305 x 1,020 x 775 mm...
  • Page 31 Product Guide ineo 1051/1200 GP-501 - Die Sets Ring Binder 4-Hole, DS-508 5/16” Diameter Plastic Bind Cerlox DS-509 Standard 21 Hole WireBind –3:1 Square DS-510 34 Hole WireBind –2:1 DS-511 Rectangular 23 Hole Color Coil – 4:1 Round DS-512 47 Hole VeloBind –1:1 Round 12...
  • Page 32 Product Guide ineo 1051/1200 PB-502 Perfect Binding Unit Hot-melt glue book binder with cover trim function General Type Power source Self-powered type Binding Unit : 712(W)mm x 1,230(H)mm x 722(D)mm Dimensions Stacker Unit : 515(W)mm x 600(H)mm x 700(D)mm Weight Approx. 210kg...
  • Page 33 Product Guide ineo 1051/1200 Hot-Melt type Supply of Glue Glue capacity Approx. 1kg * * Equivalent to approx. 110 books or approx. 33,000 sheets (Glue thickness 1.0mm and 30.0mm book thickness of A4 size) Glue melt tank Capacity Approx. 150g <Temperature in the tank>...
  • Page 34 Product Guide ineo 1051/1200 PB-503 Perfect Binding Unit Hot-melt glue book binder with trim function. Type 2 Way output: Bookbind mode, Sub-tray mode Configuration Consumable: Hot-melt glue (Nitta Gelatin Inc. HL-701L (white)) Other specifications Power supply AC230V, 50Hz Power Consumption...
  • Page 35 Product Guide ineo 1051/1200 1000 sheet (82 g/m² ) Cover tray capacity 500 sheet (161 g/m² ) Max: 30 mm thick books x 11 pc x 2 rows (responds to about 6600 sheets) To prevent stacking problems, capacity is limited by book thickness: Book tray capacity 10 to 30 sheet booklet: 50 pc.
  • Page 36 Product Guide ineo 1051/1200 RH-101 - Removable HDD Kit Housing with 2 racks to make the original HDD’s removable Type Other specifications Power supply 12V, 5V (from Main engine) Power Consumption 5W or less Dimensions 260 x 150 x 110 mm Weight 2.4 kg...

  • Page 37: Consumables

    Product Guide ineo 1051/1200 Drum Type OPC Diameter 100mm Life 1.000.000 Developer Capacity 2000g Life 1.000.000 Toner Supply Type Rotating cartridge Capacity 2100g Yield (at 6% coverage) 119.300 copies/prints Toner collecting box Yield 750,000 copies/prints SK-701 Staples for FS-521 Yield 5000 pins per cartridge...

  • Page 38: Article Numbers

    Used to turn sheets (e.g. for GBC punching and PI-PFU). Adapts 120ppm to 105ppm finishing speed by piling 2 RU-506 Relay unit A0GEWY1 sheets. For ineo 1051 only required in combination with GP-501 and/or PF-703 PI-PFU Saddle stitch finisher with folding and trimming SD-506 Booklet making unit...
  • Page 39 Product Guide ineo 1051/1200 Accessories cont. Contains a HDD housing with two racks to be mounted on top of the main body. The two original HDD’s are removed RH-101 Removable HDD A0W6WY1 from their initial location inside the main body and installed in the above mentioned racks so that users can remove them.

  • Page 40: Service Part

    Product Guide ineo 1051/1200 Service Training / Educational (Germany) ineo 1051/1200 is the fastest flagship machine in BW MFP for the purpose of maintaining and enlarging the market developed by D 1050 series. Accordingly, classroom training is planned for sales companies and distributors as basic training policy for this product.
  • Page 41 Product Guide ineo 1051/1200 Recommended Part List *REC.QTY:Based on 1-50 units NO.* PARTS NO. DESCRIPTION /UNIT QTY* MODELS 55VAR74900 FEEDING ROLLER ASSY B 500K ineo 950 55VAR75000 FEEDING ROLLER ASSY A 500K ineo 950 A0G6R72800 Collection Box Assy 750K NEW PART...
  • Page 42 Product Guide ineo 1051/1200 A0G6118100 Dust-proof Filter 3,000K NEW PART A0G6846400 Regulating Belt 4,500K NEW PART 56UA11220 DEVELOPING SUCTION FILTER 4,500K D 1050e 56UA11290 CONVEYANCE SUCTION FILTER 4,500K D 1050e A0G6112300 Ozone Filter /12 4,500K NEW PART A0G6R70500 DEVEIOPING ASSY...
  • Page 43 Product Guide ineo 1051/1200 HD-511(A0W5) A0W5M70000 Interface Unit /T NEW PART A0Y5M72001 ineo 950 PB-502(A0V9) A075623000 Cutter /Assy 1,000K PB-502 55VAR74900 FEEDING ROLLER ASSY B 500K LU-407 55VAR75000 FEEDING ROLLER ASSY A 500K LU-407 13GQ45191 PAPER EXIT DRIVING ROLLER A...
  • Page 44 Depending on the product quality status, the period may be extended. During this period, PP Support Dept. 2 strengthens the cooperation system with the sales companies and Develop internal organizations, and focuses on collection and correction of problems. Information tool Tool...

  • Page 45: Consumables List

    Toner 2,100g 119K* (5%) TN011 A0TH0D0 Drum 1,000K* DR011 A0THP60 Developer 2,000g 1,000K* DV011 A0TH560 *All exclusively used on ineo 1051/1200. Installation Time This item will be filled out later. Main body and Options installation See installation manual for details.
  • Page 46 Product Guide ineo 1051/1200 Firmware updating procedure (ISW In-System Writer) This is an operation in which a control program stored in the flush ROM that is built in each control board in the copier is rewritten with the board built in the copier main body. Conducting the ISW allows the version up of control program without changing the board and the installation of the up to date program when replacing the board.

  • Page 47: Appendix

    Product Guide ineo 1051/1200 Technology General Base position of original Left rear Paper output Face- down (default, Face-up selectable) (Paper exit to left side.) Page order First-page system OPC drum PC-Drum Negative Corona drum charge method (Scorotron) Drum charging method...
  • Page 48 Product Guide ineo 1051/1200 Rubber cleaning plate + rotational brush PC-Drum cleaning Screw pipe conveyor + collecting box (for drums and belt cleaning) Toner recycle Platen CD direction: Readings of static exposure by CCD sensor Original size detection FD direction:...

  • Page 49: Product Guide Ineo

    Product Guide ineo 1051/1200 Copy Specifications When max density chart is copied in default mode: Max Copy Density 1.45 or higher Back ground 1.00% or less When KGS-20-Grade Gray Chart is copied: Gradation reproducibility Text & Photo mode: 8 grades or more...

  • Page 50: Product Guide Ineo

    Product Guide ineo 1051/1200 Following skew to be satisfied, when chart is copied Platen copy: 0±0.5% / deviation of each feed source 3σ 0.3% Skew ADF copy: 0±0.5% / deviation of each feed source 3σ 0.3% Following values to be satisfied, when chart is copied: Platen copy: 0±1.5 mm / deviation of each feed source...

  • Page 51: Operating Conditions

    Product Guide ineo 1051/1200 Operating Conditions 300k to 500k Copy or Print per month Average CV / PV Q-zone: 3000k Copy or Print per month 100k Copy or Print per day B, C-zone: 2400k Copy or Print per month ineo 1200...
  • Page 52 Product Guide ineo 1051/1200 Power range Rated voltage Europe: -14 to +10.6% Power sag Continuing max 100ms: 10% Impulse noise Within twice the peak value of Line voltage, pulse width 50 to 1000ns Range of Power supply 3% or less, for voltage when machine under full-load compared to no-load...
  • Page 53 Product Guide ineo 1051/1200 Speed Table ineo 1200 Weight 40-49 50-61 62-71 72-91 92-130 131-161 162-216 217-244 245-300 301-350 (g/m²) /Type Coated Line Speed Pressure Weak Weak Weak Weak Medium Medium Medium Medium Medium Medium Temperature Stand. Stand. Stand. Stand.
  • Page 54 Product Guide ineo 1051/1200 RU-506 Sheet Feeding Matrix Paper weight (g/m²) Machine Functions 40 to 50 to 62 to 72 to 92 to 131 to 162 to 217 to 245 to type 1200 single double double double double double double...
  • Page 55 Product Guide ineo 1051/1200 RU-506 Speed Table Continuous Face-up Face-down Line Speed RU-506 speed (mm/s) Main body RU-506 Main body RU-506 A4 (ppm) Double Double Reverse sheets Straight sheets paper exit reverse paper paper exit reverse paper exit exit Single sheet...
  • Page 56 Product Guide ineo 1051/1200 Speeds per Paper Size (simplex) Tray PFU LS570mm/s LS490mm/s LS330mm/s Size 68 62,8 65,4 0,500 120,0 103,0 0,571 105,0 98,0 0,854 70,3 99,8 68 62,8 65,4 0,500 120,0 75,0 0,571 105,0 70,0 0,854 70,3 71,8 68 62,8 65,4 0,500 120,0 137,0 0,571 105,0...

  • Page 57: Product Guide Ineo

    Product Guide ineo 1051/1200 Speeds per Paper Size (reverse) Tray PFU 570mm/sec 490mm/sec 330mm/sec 0,500 120,0 103,0 0,571 105,0 98,0 0,854 70,3 99,8 0,500 120,0 75,0 0,571 105,0 70,0 0,854 70,3 71,8 0,500 120,0 137,0 0,571 105,0 132,0 0,854 70,3...

  • Page 58: Product Guide Ineo

    Product Guide ineo 1051/1200 Speeds per Paper Size (duplex) Tray PFU 570mm/sec 490mm/sec 330mm/sec 0,500 120,0 103,0 0,571 105,0 97,9 0,854 70,3 99,8 0,500 120,0 75,0 0,571 105,0 69,9 0,854 70,3 71,8 0,500 120,0 137,0 0,571 105,0 131,9 0,854 70,3...
  • Page 59 Product Guide ineo 1051/1200 Main body power connection Since the electrical current of the system internal power lines exceeds 24 Ampere (depending on the system configuration), a 1-phase, 230V, 32A connection is required. Please see the pictures below for the required CEE...
  • Page 60 Specifications refer to maximum performance under standard conditions. No guarantee is provided in relation to any of the data supplied. Your Develop Marketing Develop GmbH Hessenstr. 1 30855 Langenhagen Germany Phone +49 (0)511 5334-50...
