Printronix L7032 Programmer's Reference Manual page 306

Chapter 4
Practice Using VGL
,

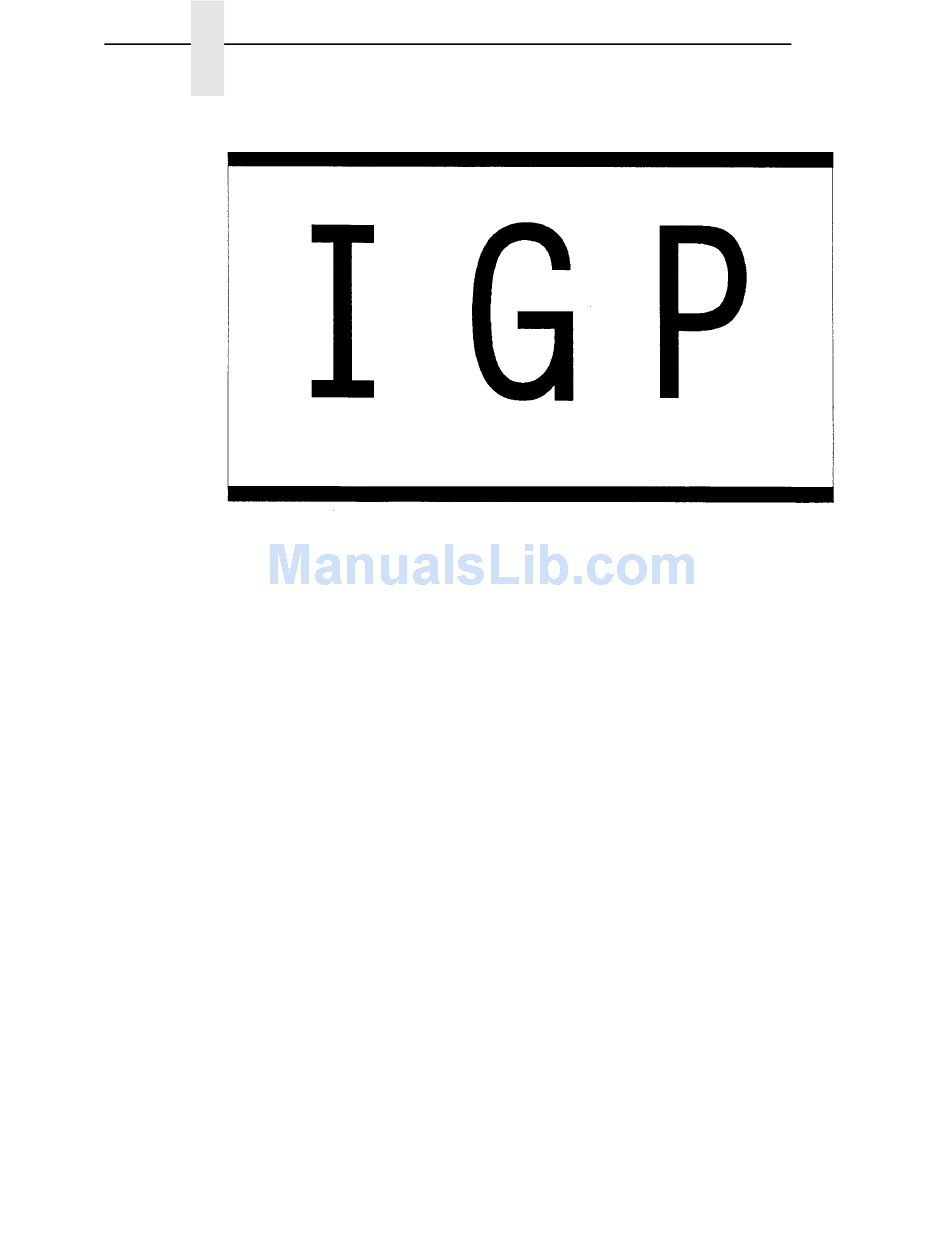

Figure 33. Practice Alphanumeric Commands With a Box in High
Creating Horizontal Lines
8. Use another Justification (J) and Horizontal Tab (T) sequence to place a
horizontal line under "IGP." Position the line 2.025 inches ( jus ) down,
which is 1.5. inches under the name. Tab the line to 1.525 inches ( dis )
from the left margin which begins the line just inside the left edge of the
box. Use a Solid Line (LS) command to create a line 2.925 inches long
horizontally ( horz ) and 0.005 inches wide vertically ( vert ). Add this data to
the file before the sequence terminator. The printed result is shown in
Figure 34.
Format:
Enter:
306
Resolution
(cc)J jus (cc)T dis
(cc)LS horz vert h v
^J02025^T01525
^LS02925,00005
op
