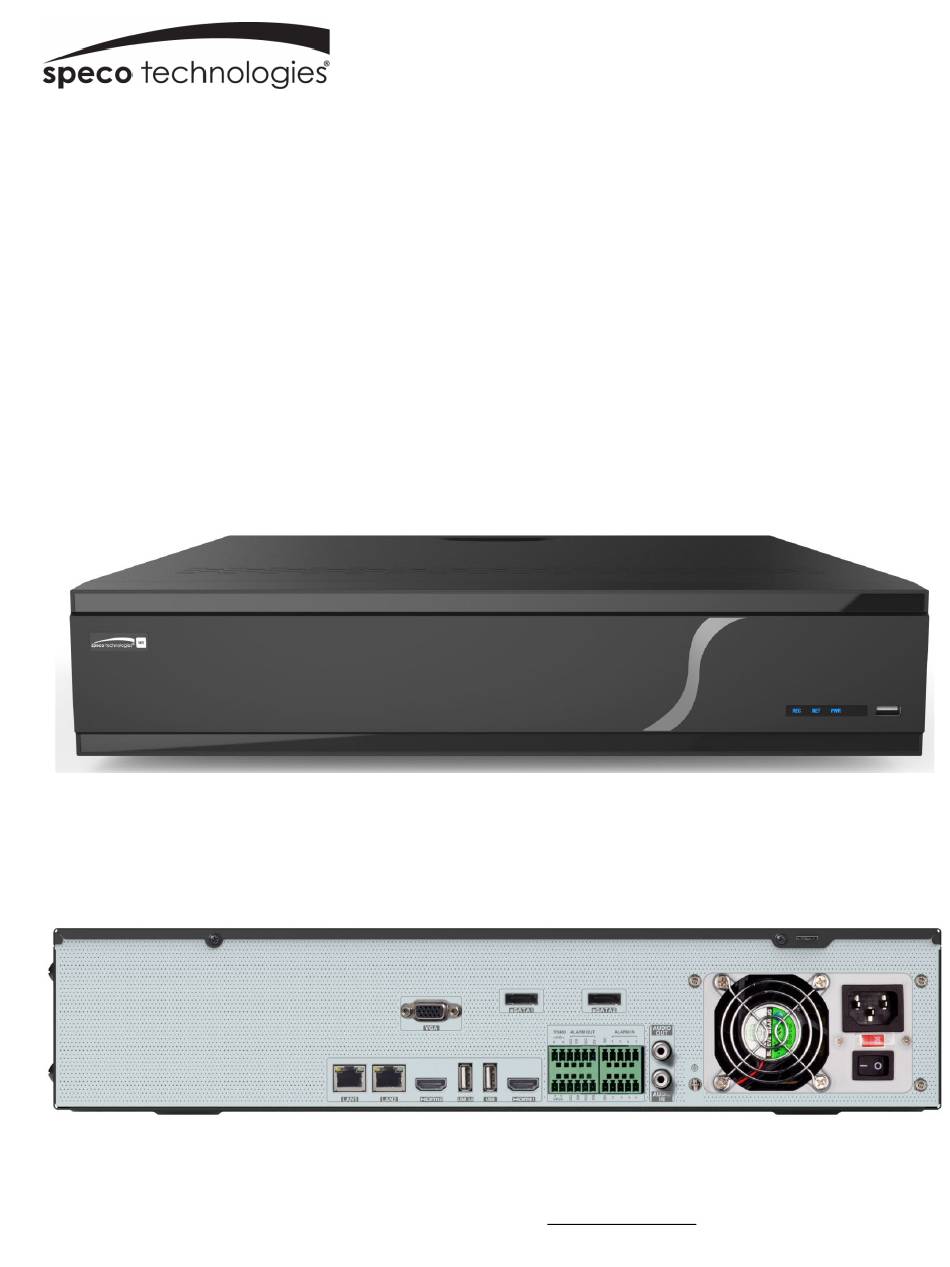

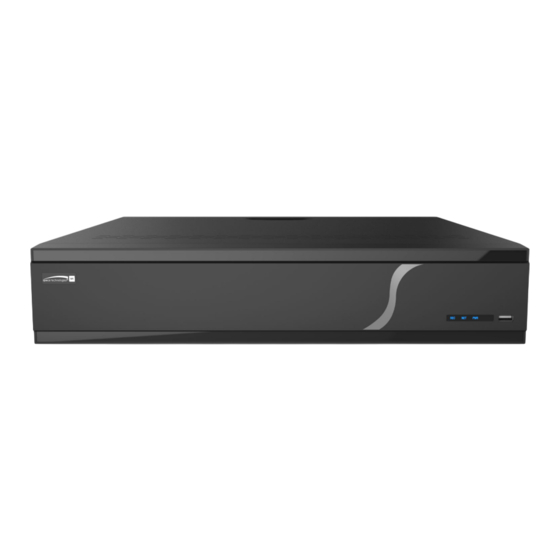

- Page 1 NR (64 Channel NVR) User Manual N64NR Version 1.0 Features and specifications are subject to change, please check www.specotech.com for firmware updates.
- Page 2 NVR User Manual Notes& Contents Notes Please read this user manual carefully to ensure that you can use the device correctly and safely. The contents of this manual are subject to change without notice. Do not install this device near any heat sources such as radiators, heat registers, stoves or other devices that produce heat. ...
-
Page 3: Table Of Contents
NVR User Manual Notes& Contents Contents 1 Introduction....................................... 1 1.1 Welcome ........................................... 1 1.2 Features ..........................................1 1.3 Front Panel Descriptions ....................................4 1.4 Rear Panel Descriptions ..................................... 4 1.5 Connections........................................4 Basic Operation Guide ....................................5 2.1 Startup & Shutdown ......................................5 2.1.1 Startup ........................................ - Page 4 NVR User Manual Notes& Contents 5.2.4 Scheme View In Sequence ..................................25 5.3 Image Configuration ......................................26 5.3.1 OSD Settings ......................................26 5.3.2 Image Settings ...................................... 27 5.3.3 Mask Settings ....................................... 27 5.3.4 Fisheye Settings ....................................28 5.3.5 Image Adjustment ....................................28 PTZ ..........................................
- Page 5 NVR User Manual Notes& Contents 8.4.3 Event Search ......................................53 8.4.4 Bookmark Search ....................................54 8.4.5 Snapshots ......................................54 8.4.6 View Export Status ....................................55 8.4.7 Behavior Search ....................................55 Alarm Management ....................................56 9.1 Sensor Alarm ........................................56 9.2 Motion Alarm ........................................57 9.2.1 Motion Configuration ...................................
- Page 6 NVR User Manual Notes& Contents 10.2 User Login & Logout ...................................... 73 10.3 Permission Management....................................74 10.3.1 Add Permission Group ..................................74 10.3.2 Edit Permission Group ..................................74 10.4 Block and Allow List ....................................... 74 10.5 Preview On Logout ......................................75 10.6 Network Security ......................................
- Page 7 NVR User Manual Notes& Contents 12.4.2 Remote Playback ....................................93 12.4.3 Remote Export ....................................94 12.4.4 Intelligent Analysis ....................................94 12.4.5 Remote Configuration ..................................94 Appendix A FAQ ....................................... 95 Appendix B Calculate Recording Capacity ................................100 Appendix C Specifications ..................................101...
-
Page 8: Introduction
NVR User Manual Introduction 1 Introduction 1.1 Welcome Thank you for purchasing this NVR. If technical assistance is needed, please contact Speco Technologies Technical Support. Phone: 1-800-645-5516 option 3 Email: techsupport@specotech.com 1.2 Features Basic Functions Supports network device access including IP camera/dome and the Onvif IP cameras ... - Page 9 NVR User Manual Introduction Supports single camera image to be zoomed by sliding the scroll wheel of the mouse Supports any area of the image to be zoomed in to a maximum of 16 times of the current size ...
- Page 10 NVR User Manual Introduction Supports record cutting for exporting when playing back Supports a maximum of 10 export tasks in background and export status viewing Alarm Management Supports alarm schedule setting Supports enabling or disabling of the motion detection, external sensor alarm input, intelligence alarm and exception alarms including IP ...
-
Page 11: Front Panel Descriptions
NVR User Manual Introduction Press and hold the right mouse button for 5 seconds in any interface to switch the output to VGA and the NVR will display the video at the lowest resolution which the NVR supports 1.3 Front Panel Descriptions The following descriptions are for reference only. -
Page 12: Basic Operation Guide
NVR User Manual Basic Operation Guide 2 Basic Operation Guide 2.1 Startup & Shutdown Please make sure all the connections are done properly before you power on the unit. Proper startup and shutdown are crucial to extending the life of your device. 2.1.1 Startup ①... -
Page 13: Mouse Control
NVR User Manual Basic Operation Guide Button Function Switch off—to stop the device Power Button Record Button To start recording -/-- /0-9 Input number or choose camera Fn1 Button Unavailable temporarily Multi Button To choose multi screen display mode Next Button To switch the live image To go to sequence view mode Audio... -
Page 14: Common Button Operation
NVR User Manual Basic Operation Guide The system includes two input boxes. Refer to the above pictures. The left box is the number input box and the right box is the input box which provides inputs of numbers, letters and punctuation characters. The introductions of keys on the input boxes are shown below. Button Meaning Button... -
Page 15: Ez Setup & Main Interface
NVR User Manual EZ Setup & Main Interface 3 EZ Setup & Main Interface 3.1 EZ Setup The disk icons will be shown on the top of the startup interface. You can view the number and status of each disk quickly and conveniently through these icons ( : no disk;... - Page 16 NVR User Manual EZ Setup & Main Interface next time. Enable pattern lock and click “Edit” to set the pattern lock. Click “Edit Security Question” to set questions and answers for password security of admin. If you forget the password, please refer to Q4 in Appendix A FAQ for details.
- Page 17 NVR User Manual EZ Setup & Main Interface Click “Next” to continue or click “Cancel” to exit the wizard. ② Network Settings. Select the network work pattern as required. Check “Obtain an IP address automatically” and “Obtain DNS automatically” to get the IP address and DNS automatically (the DHCP function of the router in the same LAN should also be enabled), or manually enter them. Enter the HTTP port, RTSP port and Server port (please see 12.1.2 Port Configuration for details).
- Page 18 EZ Setup & Main Interface ④ Add Camera. Add cameras via PoE first before adding any cameras from the LAN. Speco cameras added via the PoE ports will automatically be added to the corresponding channel. To add cameras from the LAN, make sure all cameras are set to DHCP. Click “Refresh” to refresh the list of online IP cameras which are in the same local network with NVR and then click to add the searched camera.
-
Page 19: Main Interface
⑦ QRCode. Enable the NAT function in the interface or set it in the network configuration after exiting the wizard (please refer to 12.1.8 NAT Configuration for details). You can scan the QRCode through the Speco Blue App available for iOS and Android to easily and securely view your cameras. - Page 20 NVR User Manual EZ Setup & Main Interface The buttons in area ① are introduced in the table below. Button Meaning Start button. Click it to pop up area ③. Full screen button. Click it to show full screen; click it again to exit the full screen. Screen mode button.
-
Page 21: Setup Panel
NVR User Manual EZ Setup & Main Interface one camera in the list to preview the camera image in the selected window. Click “Single Channel Sequences” to view all the added groups in the group list; click one group in the list to view all the added cameras in the group (refer to 4.2 Add/Edit Camera Group for detail configuration of the camera group). - Page 22 NVR User Manual EZ Setup & Main Interface The setup panel includes seven modules. Each module provides some function entries with links for convenient operation. Here we take Camera module as an example. The Camera module provides convenient links such as “Add Camera”, “Edit Camera”, “Image Settings”, “Motion”, “Intelligence Analysis”...
-
Page 23: Main Functions
NVR User Manual EZ Setup & Main Interface Click the main menus on the top of the camera management interface to go to corresponding interfaces. Refer to the picture below. For instance, you can go to the system setup interface by clicking “System” tag. 3.2.3 Main Functions Camera ... -
Page 24: Camera Management
Camera Management NVR User Manual 4 Camera Management 4.1 Add/Edit Camera 4.1.1 Add Camera The network of the NVR should be set before adding IP camera (see 11.1.1 TCP/IP Configuration for details). Refer to the pictures below. Click Add Camera in the setup panel or in the top right corner of the preview window to pop up the “Add Camera”... - Page 25 Camera Management NVR User Manual Add Manually Enter the IP address or domain name (click in the IP address column to pop up the domain name input window, enter the domain name of the IPC in the window and then click “OK” button), port, username and password of the camera and then select the protocol. Click “Test” to test the effectiveness of the input information and then click “Add”...
-
Page 26: Edit Camera
Camera Management NVR User Manual Manually Add：Click “Manual Add” and then enter the IP address or domain name, port, username and password of the NVR/DVR. Check the added remote channel number and click “Test” to test the effectiveness of the input information. Then click “OK” button to return to the previous interface. -
Page 27: Add/Edit Camera Group
Camera Management NVR User Manual to the picture below. The IP camera which occupies the PoE resource has a prefix shown before its camera name. The prefix consists of PoE plus PoE port number. The IP camera which connects to the PoE port cannot be deleted from the camera list manually. The IP camera directly connected to the PoE port of the NVR through private protocol will be shown automatically in the camera list. -
Page 28: Ip Planning
Camera Management NVR User Manual Click to modify the group information such as group name and dwell time. Click to delete the group. 4.2.3 IP Planning Some models may not support this function. Click “IP Planning” to go to the interface as shown below. This function supports searching other NVRs/DVRs that is in the same local network as the local NVR. -
Page 29: Live View Introduction
NVR User Manual Live View Introduction 5 Live View Introduction 5.1 Live View Interface Introduction You should add a camera first after logging on to the system (see 4.1.1 Add Camera for details). Refer to the interface as shown below, drag one camera in the preview window to another window for camera window exchanging. -
Page 30: View Mode
NVR User Manual Live View Introduction The single channel zoom interface is as shown below. Press and drag the blue box to select the zoom in area. Click to zoom the image. Click the camera selection box to select other cameras for amplification. Click “Back” to return to the live view interface. 5.2 View Mode 5.2.1 Display Mode Set different screen modes and cameras’... -
Page 31: Quick Sequence View
NVR User Manual Live View Introduction ① Click “Customize Layout” in the above interface ② Click to add a display mode name and then set the screen mode. ③ Add the cameras and adjust the cameras’ display sequence as required. ④... -
Page 32: Camera Group View In Sequence
NVR User Manual Live View Introduction 5.2.3 Camera Group View In Sequence You can start camera group view in sequence if camera group has been created (see 4.2.1 Add Camera Group for details). ① Go to the live view interface and then select a camera window. ②... -
Page 33: Image Configuration
NVR User Manual Live View Introduction Add Scheme Click in area ① to create a new scheme. Click on the top right corner of the scheme to delete it. Configure Scheme Select a scheme in area ① and then click the screen mode button on the tool bar to set the screen mode of the scheme. Select a camera window in area ②... -
Page 34: Image Settings
NVR User Manual Live View Introduction 5.3.2 Image Settings Click StartSettingsCameraImageImage Settings to go to the following interface. Select the camera and then set the brightness, contrast, saturation and hue of the camera. Click “Advanced” button or in the camera list on the right side of the interface to pop up “Image Adjust” interface and then set the relevant setting items. -
Page 35: Fisheye Settings
NVR User Manual Live View Introduction 5.3.4 Fisheye Settings Some models may not support this function. Click StartSettingsCameraImageFisheye Settings to go to the interface as shown below. Select the camera and the mode of fisheye and installation. 5.3.5 Image Adjustment Go to the live view interface and then click button on the tool bar under the camera window to go to the image adjustment interface. - Page 36 NVR User Manual Live View Introduction Image Adjustment Select the camera and then click “Image Adjustment” to go to image adjustment tab. Refer to the above picture. Drag the slider to set the camera’s brightness, contrast, saturation and hue value. Check sharpen, wide dynamic and denoise and then drag the slider to set the value. Click “Default” button to set these parameters to default values.
- Page 37 NVR User Manual Live View Introduction The introductions of these parameters and buttons are as follows. Button/Parameter Meaning Click to zoom in/out the image. If manual mode is selected, focus button & “One Key Focus” & “Day/night mode switch Focus Mode autofocus”...
-
Page 38: Ptz
NVR User Manual 6 PTZ 6.1 PTZ Control Interface Introduction You can control the IP dome or PTZ which connects to the IP camera for PTZ control. Click on the tool bar at the bottom of the live view window to go to the PTZ control interface as shown below. You can select another IP dome or PTZ which connects to the IP camera on the top right of the interface for PTZ control. - Page 39 NVR User Manual farther you drag the analog joystick from the middle of the image, the faster the dome or PTZ rotates. The dome or PTZ will stop rotating when you stop dragging the analog joystick. 3D Control Click the camera image on any area and then the image will be centered on the clicked point. Refer to the picture as shown below.
- Page 40 NVR User Manual Press and hold the left button of the mouse on any area of the camera image to zoom in the image; press and hold the right button to zoom out the image. Move the cursor of the mouse to the camera image and then slide the scroll wheel of the mouse forward to zoom in the image, slide the scroll wheel of the mouse backward to zoom out the image.
-
Page 41: Preset Setting
NVR User Manual Click to start the cruise and click to stop the cruise in the cruise list of the cruise operation tab; click “Delete” button to delete the selected cruise. You can also go to cruise setting interface for cruise setting, see 6.3 Cruise Setting for details. 6.2 Preset Setting Click StartSettingsCameraPTZPreset to go to the interface as shown below. - Page 42 NVR User Manual Add Cruise Click in the camera list on the right side of the interface to display the cruise information of the dome and then click to add cruise. The operations of the “Add Cruise” window are similar to that of the PTZ control interface; please see 6.1 PTZ Control Interface Introduction for details.
-
Page 43: Record& Disk Management
NVR User Manual Record & Disk Management 7 Record& Disk Management 7.1 Record Configuration 7.1.1 Mode Configuration Please format the HDDs before recording (refer to 7.5 Disk Management for details). Click StartSettingsRecordMode Settings to go to the mode settings interface. You can set the record time under the “Manual Record Settings” and then click “Apply” to save the settings. There are two record modes: auto mode and manual mode. -
Page 44: Advanced Configuration
NVR User Manual Record & Disk Management Select one auto mode to pop up the corresponding window. Set the encode, GOP, resolution, FPS, bitrate type, quality, max bitrate and audio of each camera and then click “OK” to save the settings. Please adjust the parameters according to the actual condition. Video Encode: the available options will be H.265 and H.264 if the connected IP camera supports H.265, or the option will be H.264 only. -
Page 45: Encode Parameters Setting
NVR User Manual Record & Disk Management Pre-alarm Record Time: set the time to record before the actual recording begins. Post-alarm Record Time: set the time to record after the actual recording is finished. Expiration Time: set the expiration time for recorded video. If the set date is overdue, the recorded data will be deleted automatically. 7.2 Encode Parameters Setting Click StartSettingsRecordEncode Parameters to go to the interface as shown below. - Page 46 NVR User Manual Record & Disk Management Click to add a new schedule. Refer to the picture below. Set the schedule name and schedule time and then click “Add” to save the schedule. You can set day schedule or week schedule. : add button;...
-
Page 47: Record Schedule Configuration
NVR User Manual Record & Disk Management Click “All” to set all day recording; click “Reverse” to swap the selected and unselected time in a day; click “Clear All” to clear all the selected area in a day. Click “Copy To” to copy the schedule of the day to other days. Refer to the picture below. Check the days in the window and then click “OK” to save the settings. -
Page 48: Record Mode
NVR User Manual Record & Disk Management Go to “Edit Schedules” interface and then click to edit the schedule. The settings of “Edit Schedule” are similar to that of the “Add Schedule”. Click to delete the schedule. 7.4 Record Mode 7.4.1 Manual Recording Method One: Click on the tool bar at the bottom of the live view interface to enable recording of the camera. -
Page 49: Disk
NVR User Manual Record & Disk Management The camera will start analytics recording once you finish the above settings. This function is only available for some IPCs. 7.5 Disk 7.5.1 Disk Management Disk Management Click StartSettingsDiskDisk Management to go to disk management interface. You can view the NVR’s disk number and disk status and so on in the interface. - Page 50 NVR User Manual Record & Disk Management ② Create an array. (Go to StartSettingsDiskPhysical Disk) a. Click “Physical Disk” tab and then click “Create an array”. b. Enter the user name and password which has the authority of Disk Management. c.
-
Page 51: Storage Mode Configuration
NVR User Manual Record & Disk Management e. Select a hot spare. In the physical disk interface, select the disk that is not in the array and click as shown in the following pictures. RAID Rebuilding If one of your disks is broken, the disk indicator on the front panel will turn red. Of course, a warning tip will pop up if the relevant HDD exception alarm is set. -
Page 52: View Disk And S.m.a.r.t. Information
NVR User Manual Record & Disk Management There are all four disk groups. By using disk group, you can correspond the camera to disk (the record data of the camera in the group will be stored into the disks in the same group). The NVR with e-SATA interface supports e-SATA recording. The added disks and cameras will be added into group one automatically. -
Page 53: Playback& Backup
NVR User Manual Playback & Backup 8 Playback& Backup 8.1 Instant Playback Click on the tool bar at the bottom of the preview camera window to play back the record (click on the tool bar at the bottom of the live view interface to set the default playback time). - Page 54 NVR User Manual Playback & Backup prompts. You can export single or multiple channels at the same time. The added cameras will playback their records in the playback interface automatically. You can also add the playback camera manually. Click in the playback window to pop up the “Add Camera” window. Check the cameras in the window and then click “Add” to add playback camera. The system supports a maximum of 16 synchronous playback cameras.
- Page 55 NVR User Manual Playback & Backup Button Meaning Click it to go to the intelligent analytics interface. Click it to go to record search and export interface; see 8.4 Record Search, Playback & Backup for details. Click it to Go to the live view interface; see Chapter 5 Live View Introduction for details.
-
Page 56: Smart Playback
NVR User Manual Playback & Backup Drag the color block on the time scale to select the backup area and then right click the area or click to pop up an export information window. Click button in the window to pop up the export window. Select the device, export path and format and then click “Export” button to start the backup. -
Page 57: Record Search, Playback &Export
NVR User Manual Playback & Backup Smart Playback by Drawing Line Click and draw a line in the desired area. Then the system will automatically search the record files about crossing this line. The cyan blocks indicate that there are intelligent recording files. Move the cursor to such block and click to play the record. Smart Playback by Drawing Quadrilateral ... - Page 58 NVR User Manual Playback & Backup view mode will be disabled and the camera view mode will be available only. ② Select one camera in the interface and then click “Open” button. ③ Click the image box to play the record in the small playback box on the left side of the interface (the box which has image inside indicates that the record data exist).
-
Page 59: Time Search
NVR User Manual Playback & Backup Time Slice Search: Method One: Click “Year”, “Month” or “Day” button under the record time scale to select the time slice mode. In “Day” mode, click on the left/right side of the time scale to view the record of the last/next day; click “Minute” in the “Picture” option under the time scale to select “Minute”... -
Page 60: Event Search
NVR User Manual Playback & Backup 8.4.3 Event Search ① Click StartSearch and ExportEvent Search to go to “Event Search” tab as shown below. ② Check the event type in the interface as required. ③ Click to set the start time and end time on the top left of the interface. ④... -
Page 61: Bookmark Search
NVR User Manual Playback & Backup 8.4.4 Bookmark Search Only if you add the tags can you play the record by tag search. Click StartPlayback to go to the playback interface and then click on the bottom of the camera window to add bookmarks when you want to mark the playback time point of the selected camera. Click StartSearch and ExportBookmarks to go to “Bookmarks”... -
Page 62: View Export Status
NVR User Manual Playback & Backup 8.4.6 View Export Status Click StartSearch and ExportExport Status or click on the tool bar at the bottom of the playback interface to view the export status. 8.4.7 Behavior Search ① Click StartIntelligent AnalyticsMuseum SearchBehavior to go to the following tab as shown below. Behavior Detection: when you select the smart playback mode, the system will analyze the video containing the object detection, exception, tripwire and intrusion detection. -
Page 63: Alarm Management
NVR User Manual Alarm Management 9 Alarm Management 9.1 Sensor Alarm To complete the entire sensor alarm settings, you should enable the sensor alarm of each camera and then set up the alarm handling of each camera. ① Click StartSettingsAlarmSensor Alarm to go to the following interface. ②... -
Page 64: Motion Alarm
NVR User Manual Alarm Management Pop-up Video: After camera setting, the system will pop up the corresponding video automatically when the sensor alarm is triggered. To set the duration time of the video, please see 9.6.3 Display for details. Pop-up Message Box: if enabled, the system will pop up the corresponding alarm message box automatically when the sensor alarm is triggered. To set the duration time of the message box, please see 9.6.3 Display for details. -
Page 65: Combination Alarm
NVR User Manual Alarm Management ② Enable or disable “Record”, “Snapshot”, “Push”, “Alarm-out”, “Preset”, “Buzzer”, “Pop-up Video” and “E-mail”. The alarm handling settings of motion alarm the same as the sensor alarm (see 9.1 Sensor Alarm for details). ③ Click “Apply” to save the settings. You can click “Motion Settings” to go to the motion configuration interface. 9.3 Combination Alarm ①... - Page 66 NVR User Manual Alarm Management ② Select the camera, enable the face detection and set the duration. If the added cameras are face detection cameras, on (front) or off (front) can be selected. ③ Enable save source information and save face information. ④...
-
Page 67: Crowd Density Detection
NVR User Manual Alarm Management 9.4.2 Crowd Density Detection Only some versions may support this function. If your NVR doesn’t support this function, please skip the following instructions. Crowd Density Configuration: Alarms will be triggered if the crowd density exceeds the set threshold value in the pre-defined area. ①... -
Page 68: People Intrusion Detection
NVR User Manual Alarm Management 9.4.3 People Intrusion Detection Only some versions may support this function. If your NVR doesn’t support this function, please skip the following instructions. People Intrusion Configuration: Alarms will be triggered if someone enters into the detection area. ①... - Page 69 NVR User Manual Alarm Management This function is to calculate the number of people entering or exiting in the detected area on the video by detecting, tracking and counting the head shapes of people. ① Click StartSettingsCamera Smart SettingsPeople Counting to go to the following interface. ②...
-
Page 70: Object Detection
NVR User Manual Alarm Management 9.4.5 Object Detection Object Detection Configuration: ① Click StartSettingsCameraSmart SettingsObject Detection to go to the following interface. ② Select the camera, enable the object detection and set the detect type. There are two detect types: Abandoned object and missing object. Abandoned object: Alarms will be triggered if there are articles left in the pre-defined detection area. -
Page 71: Tampering
NVR User Manual Alarm Management 9.4.6 Tampering Tampering Configuration: ① Click StartSettingsCamera Smart SettingsTampering to go to the following interface. ② Select the camera and enable the relevant detection as needed. Scene Change: Alarms will be triggered if the scene of the monitor video has changed. Video Blurred: Alarms will be triggered if the video becomes blurry. -
Page 72: Intrusion Detection
NVR User Manual Alarm Management ② Select the camera, enable the line crossing detection. ③ Select the direction. Direction: A<->B, A->B and A<-B optional. It is the crossing direction of the intruder who crosses over the alert line. A<->B: the alarm triggers when the intruder crosses over the alert line from B to A or from A to B. A->B: the alarm triggers when the intruder crosses over the alert line from A to B. -
Page 73: Exception Alarm
NVR User Manual Alarm Management ① Click StartSettingsCamera Smart SettingsIntrusion Detection to go to the following interface. ② Select the camera, enable the intrusion detection. ③ Select the alarm area. Up to 4 alarm areas can be set up. ④ Draw the alarm area of the intrusion detection. Refer to the interface as shown below. Check “Draw Area” and then click around the area where you want to set as the alarm area in the image (the alarm area should be a closed area). -
Page 74: Warning Handling Settings
NVR User Manual Alarm Management ③ Click “Apply” to save the settings. 9.5.2 Warning Handling Settings ① Click StartSettingsAlarmExceptionWarning Handling Settings to go to the interface as shown below. ② Enable or disable “Push”, “Alarm-out”, “Buzzer”, “Pop-up Message Box” and “E-mail”. The exception handling settings are similar to that of the sensor alarm (see 9.1 Sensor Alarm for details). -
Page 75: E-Mail
NVR User Manual Alarm Management ② Set the delay time and the schedule of each alarm-out. You can click “Edit Schedules” to edit the schedules (see 7.3.1 Add Schedule for details). ③ Click “Apply” to save the settings. You can click “Test” to test the alarm output. 9.6.2 E-mail Click StartSettingsAlarmEvent NotificationE-mail to go to the e-mail configuration interface. -
Page 76: Push Message
NVR User Manual Alarm Management 9.6.5 Push Message Click StartSettingsAlarmEvent NotificationPush Message to go to the interface as shown below. Check “Enable” and then click “Apply” button to save the settings. If Push Server is online, it will push messages to the mobile clients. 9.6.6 Alarm Server Go to AlarmAlarm Server interface as shown below. -
Page 77: View Alarm Status
NVR User Manual Alarm Management 9.8 View Alarm Status Click StartSettingsAlarmAlarm Status or click on the tool bar at the bottom of the live view interfaceto view the alarm status. Click “Clear” button to stop the buzzer when the buzzer alarm happens. Click to view the detail information as shown below. -
Page 78: Account & Permission Management
NVR User Manual Account & Permission Management 10 Account & Permission Management 10.1 Account Management Click StartSettingsAccount and AuthorityAccountEdit User to go to the interface as shown below. Area ① displays the user permissions. Area ② displays the user list. Click the user in the list to display its user permissions in area ①. There are three default permission groups (“Administrator”, “Advanced”... -
Page 79: Edit User
NVR User Manual Account & Permission Management ② Set the username, password and group. User can also set the pattern lock here. The e-mail address is optional. Click “Add” to add the user. 10.1.2 Edit User Click StartSettingsAccount and AuthorityAccountEdit User and then click in the user list or double click the user to edit the user information. -
Page 80: User Login & Logout
NVR User Manual Account & Permission Management Enter current password and then check “Enable” to input pattern lock. Recover Password Click “Recover Password” to reset the password. Edit User Click “Edit User” to pop up the window as shown below. The admin is enabled, its permission control is closed and permission group cannot be changed by default. -
Page 81: Permission Management
NVR User Manual Account & Permission Management 10.3 Permission Management 10.3.1 Add Permission Group Click StartSettingsAccount and AuthorityAccountEdit Permission Group to go to the interface as shown below. Click to add permission group. Set the group name, check the permissions as needed and then set the “Local” and “Remote” permissions. Click “Add”... -
Page 82: Preview On Logout
NVR User Manual Account & Permission Management ② Check “Enable” and then choose “Enable Allow List” or “Enable Block List” (the PC client of which the IP address is in the allow list can access NVR remotely while the PC client in the block list cannot). ③... -
Page 83: Password Security
NVR User Manual Account & Permission Management you can enable auto gateway MAC or manually set gateway MAC. Additionally, detection defense also can be enabled as needed. 10.7 Password Security Click StartSettingsAccount and AuthoritySecurityPassword Security to go to the following interface. In this interface, you can set the level and expiration time of the password. -
Page 84: Device Management
NVR User Manual Device Management 11 Device Management 11.1 Network Configuration 11.1.1 TCP/IP Configuration Click StartSettingsNetworkTCP/IP to go to the following interface. If the NVR has two network ports or above, you can select the network work pattern as required. TOE: It is a technology for improving the network transmission speed. -
Page 85: Port Configuration
NVR User Manual Device Management 11.1.2 Port Configuration Click StartSettingsNetworkPort to go to the interface as shown below. Enter the HTTP port, HTTPS port, server port and RTSP port of the NVR, enable “Anonymous” as needed and then click “Apply” button to save the settings. HTTP Port: the default HTTP port of the NVR is 80. - Page 86 NVR User Manual Device Management ② Install a certificate. * You can create a private certificate here. Click the “Create” button to create a private certificate. Enter the country (only two letters available), domain (NVR’s IP address/domain), validity date, password, province/state, region and so on. Then click “OK” to save the settings. * If there is a signed certificate, click “Browse”...
-
Page 87: Pppoe Configuration
11.1.4 DDNS Configuration The DDNS is used to control the dynamic IP address through domain name.Speco Technologies provides free DDNS service with US-based servers. You can access the NVR easily if the DDNS is enabled and configured. Click StartSettingsNetworkDDNS to go to the interface as shown below. The default DDNS type will be “specoddns.net”. -
Page 88: E-Mail Configuration
NVR User Manual Device Management 11.1.5 E-mail Configuration Click StartSettingsNetworkE-mail to go to the following interface. Enter the sender’s name, e-mail address, SMTP server and SMTP port (you can click “Default” to reset the SMTP port to the default value) and then enable or disable the SSL and attaching image. Select the username (the username list will be updated automatically according to the email address you input) and enter the password of the sender and then click “Apply”... -
Page 89: Upnp Configuration
NVR User Manual Device Management Click “Add” and then enter the recipient’s e-mail address and select the schedule (if a schedule is selected, the system will send the alarm email and the recipient will receive it only in the selected schedule time) in the popup window. Click “Add” in the window to add the recipient. You can also change the recipient’s receiving schedule by clicking in the “Schedule”... -
Page 90: Nat Configuration
NVR User Manual Device Management To use this function, the NVR shall be connected to a switch supporting 802.1x protocol. The switch can be considered as an authentication system to identify the device in a local network. If the NVR connected to the network interface of the switch has passed the authentication of the switch, it can be accessed via the local network. -
Page 91: Date And Time Configuration
NVR User Manual Device Management Device Name: The name of the device. It may display on the client end or CMS that help user to recognize the device remotely. Video Format: Two modes: PAL and NTSC. Select the video format according to the camera. Sequence Automatically: Check it and set “wait time”. -
Page 92: Recorder Osd Settings
NVR User Manual Device Management 11.2.3 Recorder OSD Settings Click StartSettingsSystemBasicRecorder OSD settings to go to the following interface. OSD name and icon can be enabled here. 11.3 Factory Default Click StartSettingsSystemMaintenanceFactory Default and then click “Reset to factory default” button in the interface to reset to the factory default settings (check “Reset retain Network Configuration”... -
Page 93: Backup And Restore
NVR User Manual Device Management to the path where the upgrade software exists. Select the upgrade software and then click “Upgrade”. The system may automatically restart during upgrading. Please wait for a while and do not power off the NVR during upgrading. Note: The file system of the USB mobile device which is used for upgrading, backing up and restoring should be FAT32 format. -
Page 94: Restart Automatically
NVR User Manual Device Management 11.6 Restart Automatically You can set the automatic restart time for the NVR to maintain it regularly. Click StartSettingsSystemMaintenanceAuto Maintenance to go to the interface as shown below. Enable auto maintenance, set the interval days and point of time and then click “Apply” to save the settings. The NVR will restart automatically at the pointed time every interval days. -
Page 95: Remote Surveillance
① Enable NAT in the NVR. Refer to 11.1.8 NAT Configuration for details. ② Scan the QRCode through the Speco Blue App available for iOS and Android to easily and securely view your cameras. ③ Run the mobile client, go to the “Add Device” interface and then click to scan the QRCode of the NVR (Go to StartSettingsSystemInformationBasic to view the QRCode of the NVR). -
Page 96: Web Wan Access
NVR User Manual Remote Surveillance 12.3 Web WAN Access ① Set the network of the NVR. Please refer to 11.1.1 TCP/IP Configuration for details. ② Click Start→Settings→Network→NAT to go to the interface for NAT configuration and check “Enable”. Click “Apply” to save the settings and make note of the QR code number under the QR code. -
Page 97: Remote Preview
NVR User Manual Remote Surveillance admin: the current login username. Logout: click it to log out and return to the login interface. Modify Password: click it to change the password of the current login user. Enter the current password and then set a new password in the popup window. - Page 98 NVR User Manual Remote Surveillance View Group Click to view the groups. All groups and all cameras in the group can be shown in the left panel. View Scheme Click to view the scheme (or planning). All schemes can be shown in the left panel. Double click the scheme name to invoke it quickly Tool Bar Introduction ...
- Page 99 NVR User Manual Remote Surveillance Click one camera window in the preview area and then click to set the camera’s live view stream and record stream to main stream in manual record mode; click to set the camera’s live view stream and record stream to sub stream. In sub stream tab, set the resolution, FPS and bitrate and then click “Apply”...
-
Page 100: Remote Playback
NVR User Manual Remote Surveillance Button Meaning Click to rotate the dome; click to stop rotating the dome. Drag the slider to adjust the rotating speed of dome. Click to zoom in/out camera image. Click to increase/ decrease the focal length. Click to increase/decrease the iris of the dome. -
Page 101: Remote Export
NVR User Manual Remote Surveillance 12.4.3 Remote Export Click “Export” in the remote interface to go to the export interface. You can export the record by event search or by time search. Event Search Check the record type on the left side of the interface and then click to set the start time and end time;... -
Page 102: Appendix Afaq
NVR User Manual Appendix A FAQ Q1. Why can’t I find the HDD? Please check the power and SATA data cables of the HDD to make sure they are well connected. For some NVRs with the 1U or small 1U case, the power of the adapter may be not enough for operating them. Please use the power adaptor supplied along with the NVR. - Page 103 NVR User Manual Q6. The system cannot record, why? Make sure the HDD was formatted prior to use. The record schedule has not been set in manual record mode. Please refer to 7.3.2 Record Schedule Configuration for details. Maybe HDD is full and thus the NVR is not able to record. Check HDD information from Disk Management and if required, please enable the recycle function (please see 7.1.2 Advanced Configuration for details).
- Page 104 NVR User Manual ② Select SecurityCustom Level. Refer to Fig 10-1. ③ Enable all the sub options under “ActiveX controls and plug-ins”. Refer to Fig 10-2. ④ Then click “OK” to finish setup. Other plug-ins or anti-virus may block ActiveX. Please disable or do the required settings. Fig 10-1 Fig 10-2 Q9.
- Page 105 NVR User Manual Select camera in the resource tree on the left side of the interface to play the camera record. Click on the tool bar under the camera image to enable audio. Refer to Fig 11-2. Note: The record will not have audio output if you disable the audio when recording by NVR. Please see 7.1.1 Mode Configuration and 7.2 Encode Parameters Setting for details.
- Page 106 NVR User Manual Fig 11-2...
-
Page 107: Appendix B Calculate Recording Capacity
NVR User Manual Calculate Recording Capacity Appendix B Calculate Recording Capacity The recording capacity is mainly up to the record resolution, record stream and bitrate. Different image quality parameters decide different disk capacity occupation in equal times. The bigger the record resolution, record stream and record bitrate is, the more disk capacity is taken up in equal times. -
Page 108: Appendix C Specifications
NVR User Manual Specifications Appendix C Specifications Model N64NR Compression Standard H.265 System Embedded Linux IPC Input 64CH Network Access Bandwidth 320Mbps Video Network Access Format 8MP/6MP/5MP/4MP/3MP/1080P/960P/720P@25/30fps HDMI×1: 4K×2K/1920x1080/1280×1024， Output VGA×1：1920x1080/1280×1024 Network Input 64CH IPC audio input Audio 2-way Audio RCA×1 Local Output RCA×1... - Page 109 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC Responsible Party: Speco Technologies 200 New Highway Amityville, NY 11701...
