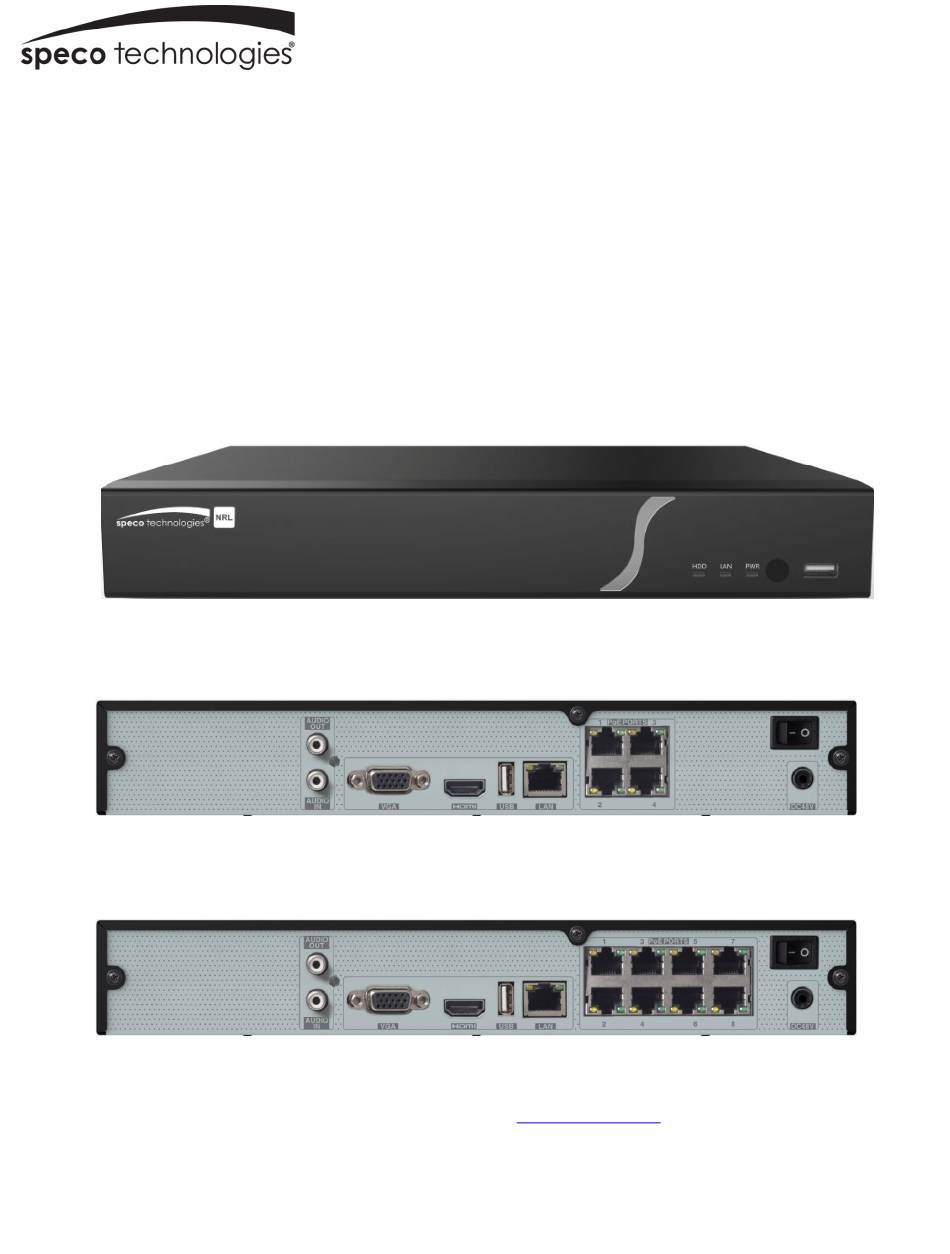

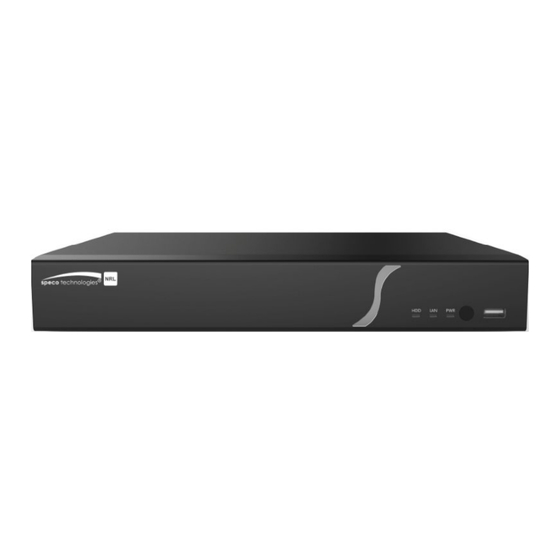

- Page 1 NRL (4 and 8 Channel) Quick Start Guide N4NRL N8NRL Version 1.0 Features and specifications are subject to change, please check www.specotech.com for firmware updates.
- Page 2 Phone: 1-800-645-5516 option 3 Email: techsupport@specotech.com Important Safeguards and Warnings Speco Technologies assumes no liability or responsibility for any fires or electrical shock caused by improper handling or installation. Speco Technologies is not liable for any problems caused by unauthorized modifications or attempted repair.
- Page 3 1.2 Connections To quickly get started, connect the following to your recorder in the following order, please refer to Figure 1-2 (N8NRL shown for reference). 1. Connect IP cameras to the PoE ports of the recorder. 2. Connect a monitor to the recorder via VGA or HDMI cable (not included). 3.
- Page 4 2. Set and Security Questions 2.1 Enter a password Note: You will be prompted to set a Password and security questions upon initial bootup. see Fig 2-1 The default login ID and administrator username is: admin The password strength indicator can be used as a reference. Re-enter the password to confirm. Remember this password.
- Page 5 3. Update Firmware (if necessary) Speco will continuously make improvements, please check the website to ensure you are running the latest firmware version. 3.1 Check firmware version on recorder You can click Start→Settings→System→Information→Basic go to “About this machine” and click on “view”. You will then be able to see the firmware version number and build date.
-
Page 6: Updating Firmware
3.2 Updating Firmware 1. Copy the upgrade software into the USB storage device. 2. Insert the USB storage device into the USB interface of the NVR. 3. Click Start→Settings→System→Maintenance→Upgrade to go to “Upgrade” interface. Select the USB device in “Device Name” option and go to the path where the upgrade software exists. Select the upgrade software and then click “Upgrade”. - Page 7 4.1 General Settings – Date & Time When booting up the for the first time, the device will prompt you for time settings or go to Settings→System→Date and Time for Figure 4-1 System Time: Set the time and date format of the system ...
-
Page 8: Upnp Configuration
4.2 EZ Network Setup Next, set the network of the NVR. Go to Start → Settings → Network →TCP/IP. Input IP address, subnet mask, • gateway, etc. If using DHCP, please enable DHCP in both the NVR and the router. Go to Start →... -
Page 9: Ddns Settings
4.4 DDNS Settings The DDNS is used to control the dynamic IP address through domain name. Speco Technologies provides free DDNS service with US-based servers. You can access to the NVR easily if the DDNS is enabled and configured. Click Start→... -
Page 10: Disk Settings
Figure 4-2 Click to edit an IP camera as shown on the below left. Input the new IP address, subnet mask, gateway, username and the password of the camera. You can check “Sync to IPC” to modify the IP address of the IP camera via different network segments for being in the same network segment with the NVR. -
Page 11: Record Settings
4.7 Record Settings Record Settings. Two record modes are available: auto and manual. Auto Mode: Select one auto mode in the interface as shown below and then click “Next” button to save the settings. Click “Advanced” to self-define record mode. Manual: Set the “Sensor Record”, “Motion Record”... -
Page 12: Web Browser Access
QRCode. Enable the NAT function in the interface or set it in the network configuration after exiting the wizard (please refer to manual for details). You can scan the QRCode through the Speco Blue App available for iOS and Android to easily and securely view your cameras. Mobile viewing is also available on our SecureGuard client app. - Page 13 On panel on the right will show you’re the channel number and their recorded data coded by color. The bar that runs across them represents the playback time being viewed. You can move this bar around. To export, highlight a section of the desired recording, click export and follow the prompts.
- Page 14 5. EZ Search 2.0 EZ Search - Quickly search an instance using video thumbnails • Click Start→Search and Export →EZ search. There are two view modes: by time and by camera. In the time view mode, a maximum of 64 camera thumbnails can be showed. •...
