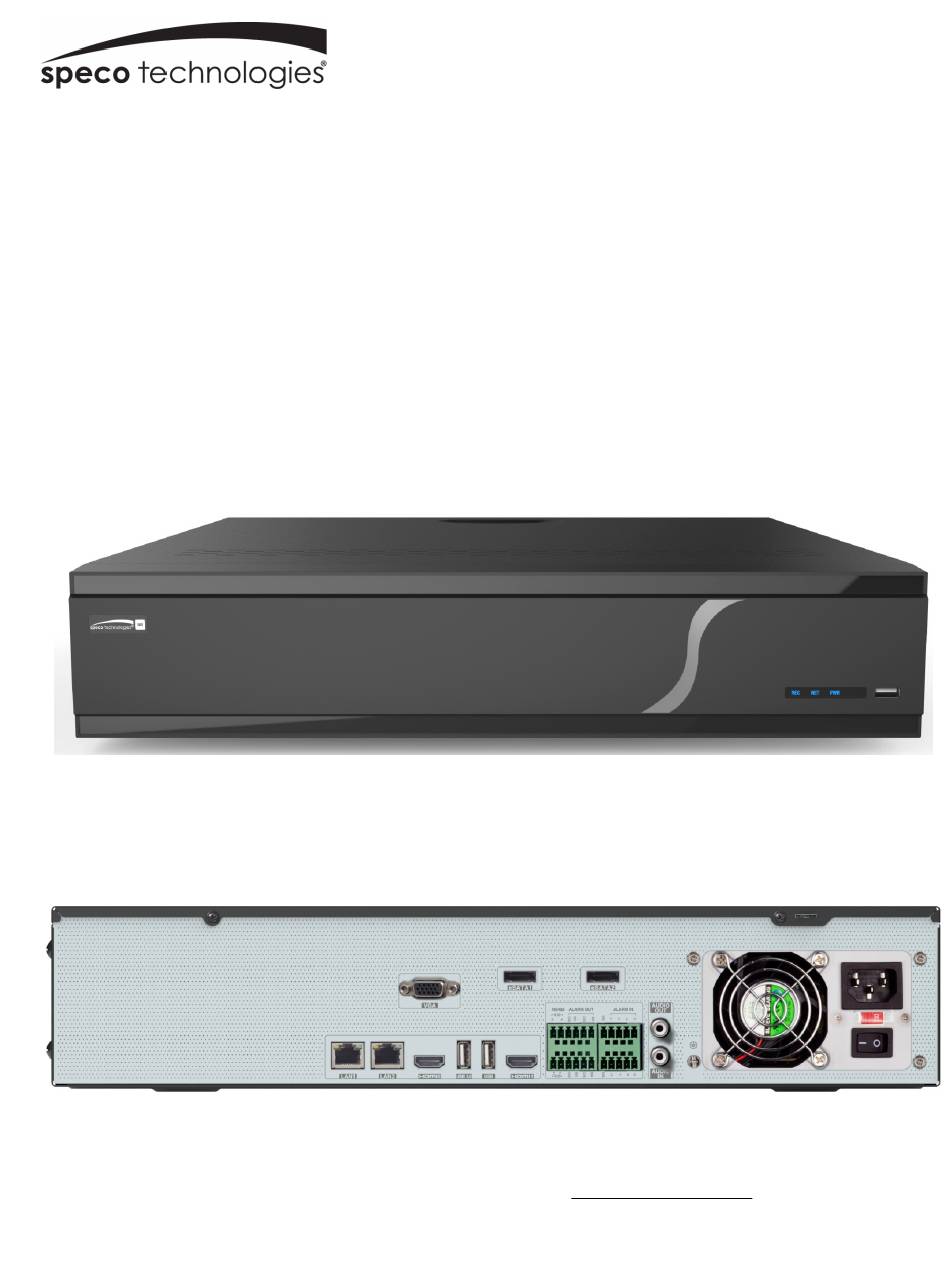

NR (64 Channel NVR)
User Manual
N64NR
Version 1.0
Features and specifications are subject to change, please check
www.specotech.com
for firmware updates.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the N64NR24TB and is the answer not in the manual?

Questions and answers

Related Manuals for Speco N64NR24TB

Summary of Contents for Speco N64NR24TB

  • Page 1 NR (64 Channel NVR) User Manual N64NR Version 1.0 Features and specifications are subject to change, please check www.specotech.com for firmware updates.
  • Page 2 Notes& NVR User Manual Contents Notes Please read this user manual carefully to ensure that you can use the device correctly and safely.  The contents of this manual are subject to change without notice.  Do not install this device near any heat sources such as radiators, heat registers, stoves or other devices that ...

  • Page 3: Table Of Contents

    Notes& NVR User Manual Contents Contents Introduction..........................1 Welcome..............................1 Features..............................1 1.3 Front Panel Descriptions..........................4 1.4 Rear Panel Descriptions..........................4 Connections..............................4 ........................Basic Operation Guide 2.1 Startup & Shutdown............................ 5 2.1.1 Startup.............................. 5 2.1.2 Shutdown............................5 2.2 Remote Control............................
  • Page 4 Notes& NVR User Manual Contents 5.2.3 Camera Group View In Sequence..................... 25 5.2.4 Scheme View In Sequence....................... 25 5.3 Image Configuration..........................26 5.3.1 OSD Settings............................ 26 5.3.2 Image Settings..........................27 5.3.3 Mask Settings..........................27 5.3.4 Fisheye Settings..........................28 5.3.5 Image Adjustment..........................
  • Page 5 Notes& NVR User Manual Contents 8.4.1 EZ Search............................50 8.4.2 Time Search............................. 52 8.4.3 Event Search............................ 53 8.4.4 Bookmark Search..........................54 8.4.5 Snapshots............................54 8.4.6 View Export Status........................... 55 8.4.7 Behavior Search..........................55 ..........................Alarm Management 9.1 Sensor Alarm............................56 9.2 Motion Alarm.............................
  • Page 6 Notes& NVR User Manual Contents 10.1.1 Add User............................71 10.1.2 Edit User............................72 10.2 User Login & Logout..........................73 10.3 Permission Management......................... 74 10.3.1 Add Permission Group........................74 10.3.2 Edit Permission Group........................74 10.4 Block and Allow List..........................74 10.5 Preview On Logout..........................
  • Page 7 Notes& NVR User Manual Contents 12.4 Web Remote Control..........................89 12.4.1 Remote Preview..........................90 12.4.2 Remote Playback........................... 93 12.4.3 Remote Export..........................94 12.4.4 Intelligent Analysis......................... 94 12.4.5 Remote Configuration........................94 Appendix A FAQ...........................95 Appendix B Calculate Recording Capacity..................100 Appendix C Specifications......................101...

  • Page 8: Introduction

    NVR User Manual Introduction Introduction 1.1 Welcome Thank you for purchasing this NVR. If technical assistance is needed, please contact Speco Technologies Technical Support. Phone: 1-800-645-5516 option 3 Email: techsupport@specotech.com 1.2 Features Basic Functions  Supports network device access including IP camera/dome and the Onvif IP cameras ...
  • Page 9 NVR User Manual Introduction  Supports any area of the image to be zoomed in to a maximum of 16 times of the current size  Supports image and lens adjustment (only available for some cameras)  Supports quick camera adding in the camera window of the live view interface ...
  • Page 10 NVR User Manual Introduction  Supports record cutting for exporting when playing back  Supports a maximum of 10 export tasks in background and export status viewing Alarm Management  Supports alarm schedule setting  Supports enabling or disabling of the motion detection, external sensor alarm input, intelligence alarm and exception alarms including IP address conflict alarm, disk IO error alarm, disk full alarm, no disk alarm, illegal access alarm, network disconnection alarm, IPC offline alarm and so on, alarm trigger configuration supportable ...

  • Page 11: Front Panel Descriptions

    NVR User Manual Introduction  You can click the mouse wheel at any interface to go to the live view interface  The display language and video format of the NVR will not be changed and the system logs will be reserved if you reset the NVR to factory default ...
  • Page 12 NVR User Manual Introduction  Audio Connections Audio Input: Connect to microphone, pickup, etc. Audio Output: Connect to headphone, sound box or other audio output devices.

  • Page 13: Basic Operation Guide

    NVR User Manual Basic Operation Guide Basic Operation Guide 2.1 Startup & Shutdown Please make sure all the connections are done properly before you power on the unit. Proper startup and shutdown are crucial to extending the life of your device. 2.1.1 Startup Connect the output display device to the VGA/HDMI interface of the NVR.
  • Page 14 Button Function NVR User Manual Basic Operation Guide Switch off—to stop the device Power Button Record Button To start recording -/-- /0-9 Input number or choose camera Fn1 Button Unavailable temporarily Multi Button To choose multi screen display mode Next Button To switch the live image To go to sequence view mode Audio...

  • Page 15: Text-Input Instruction

    NVR User Manual Basic Operation Guide Move the mouse to the text-input box and then click the box. The input keyboard will pop up automatically. Note: Mouse is the default tool for all operations unless an exception as indicated. 2.4 Text-input Instruction The system includes two input boxes.

  • Page 16: Ez Setup & Main Interface

    NVR User Manual EZ Setup & Main Interface EZ Setup & Main Interface 3.1 EZ Setup The disk icons will be shown on the top of the startup interface. You can view the number and status of each disk quickly and conveniently through these icons ( : no disk; : unavailable disk;...
  • Page 17 NVR User Manual EZ Setup & Main Interface Enable pattern lock and click “Edit” to set the pattern lock. Click “Edit Security Question” to set questions and answers for password security of admin. If you forget the password, please refer to Q4 in Appendix A FAQ for details.
  • Page 18 NVR User Manual EZ Setup & Main Interface Click “Next” to continue or click “Cancel” to exit the wizard. Network Settings . Select the network work pattern as required. Check “Obtain an IP address automatically” and “Obtain DNS automatically” to get the IP address and DNS automatically (the DHCP function of the router in the same LAN should also be enabled), or manually enter them.
  • Page 19 EZ Setup & Main Interface Add Camera . Add cameras via PoE first before adding any cameras from the LAN. Speco cameras added via the PoE ports will automatically be added to the corresponding channel. To add cameras from the LAN, make sure all cameras are set to DHCP.

  • Page 20: Main Interface

    (please refer to 1 2 .1. 8 NAT Configuration for details). You can scan the QRCode through the Speco Blue App available for iOS and Android to easily and securely view your cameras. Please refer to 1 3 .1 Mobile Client Surveillance details.
  • Page 21 NVR User Manual EZ Setup & Main Interface The buttons in area ① are introduced in the table below. Button Meaning Start button. Click it to pop up area ③. Full screen button. Click it to show full screen; click it again to exit the full screen.

  • Page 22: Setup Panel

    NVR User Manual EZ Setup & Main Interface Click “Camera” to view all the added cameras in the camera list. Select one camera window on the left side of the interface and then double click one camera in the list to preview the camera image in the selected window. Click “Single Channel Sequences”...
  • Page 23 NVR User Manual EZ Setup & Main Interface The setup panel includes seven modules. Each module provides some function entries with links for convenient operation. Here we take Camera module as an example. The Camera module provides convenient links such as “Add Camera”, “Edit Camera”, “Image Settings”, “Motion”, “Intelligence Analysis”...

  • Page 24: Main Functions

    NVR User Manual EZ Setup & Main Interface Click the main menus on the top of the camera management interface to go to corresponding interfaces. Refer to the picture below. For instance, you can go to the system setup interface by clicking “System” tag. 3.2.3 Main Functions Camera ...

  • Page 25: Camera Management

    Camera Management NVR User Manual Camera Management 4.1 Add/Edit Camera 4.1.1 Add Camera The network of the NVR should be set before adding IP camera (see 1 1 .1.1 TCP/IP Configuration for details). Refer to the pictures below. Click Add Camera in the setup panel or in the top right corner of the preview window to pop up the “Add Camera”...
  • Page 26 Camera Management NVR User Manual Add Manually  Enter the IP address or domain name (click in the IP address column to pop up the domain name input window, enter the domain name of the IPC in the window and then click “OK” button), port, username and password of the camera and then select the protocol.

  • Page 27: Edit Camera

    Camera Management NVR User Manual password of the NVR/DVR. Check the added remote channel number and click “Test” to test the effectiveness of the input information. Then click “OK” button to return to the previous interface. Note: Only the local NVR has unoccupied channels, may the IPC of other NVR/DVR in the same local network be added.

  • Page 28: Add/Edit Camera Group

    Camera Management NVR User Manual automatically in the camera list. Refer to the picture below. The IP camera which occupies the PoE resource has a prefix shown before its camera name. The prefix consists of PoE plus PoE port number. The IP camera which connects to the PoE port cannot be deleted from the camera list manually.

  • Page 29: Ip Planning

    Camera Management NVR User Manual Click to modify the group information such as group name and dwell time. Click to delete the group. 4.2.3 IP Planning Some models may not support this function. Click “IP Planning” to go to the interface as shown below. This function supports searching other NVRs/DVRs that is in the same local network as the local NVR.

  • Page 30: Live View Introduction

    Live View NVR User Manual Introduction Live View Introduction 5.1 Live View Interface Introduction You should add a camera first after logging on to the system (see 4.1.1 Add Camera for details). Refer to the interface as shown below, drag one camera in the preview window to another window for camera window exchanging. The record symbols with different colors in the live view window refer to different record types when recording: green stands for manual record, red stands for sensor based record, yellow stands for motion based record, blue stands for schedule record and cyan stands for intelligence record.

  • Page 31: View Mode

    Live View NVR User Manual Introduction The single channel zoom interface is as shown below. Press and drag the blue box to select the zoom in area. Click to zoom the image. Click the camera selection box to select other cameras for amplification. Click “Back” to return to the live view interface.

  • Page 32: Quick Sequence View

    Live View NVR User Manual Introduction Add Display Mode  Method One: Click “Customize Layout” in the above interface Click to add a display mode name and then set the screen mode. Add the cameras and adjust the cameras’ display sequence as required. Click under the display mode list.

  • Page 33: Camera Group View In Sequence

    Live View NVR User Manual Introduction click to view the live group by group according to the camera number of the current screen mode. Double click the sequence view interface to pause the view; double click again to restore the view. Click to stop the view.

  • Page 34: Image Configuration

    Live View NVR User Manual Introduction Add Scheme  Click in area ① to create a new scheme. Click on the top right corner of the scheme to delete it. Configure Scheme  a) Select a scheme in area ① and then click the screen mode button on the tool bar to set the screen mode of the scheme.

  • Page 35: Image Settings

    Live View NVR User Manual Introduction 5.3.2 Image Settings Click StartSettingsCameraImageImage Settings to go to the following interface. Select the camera and then set the brightness, contrast, saturation and hue of the camera. Click “Advanced” button or in the camera list on the right side of the interface to pop up “Image Adjust”...

  • Page 36: Fisheye Settings

    Live View NVR User Manual Introduction 5.3.4 Fisheye Settings Some models may not support this function. Click StartSettingsCameraImageFisheye Settings to go to the interface as shown below. Select the camera and the mode of fisheye and installation. 5.3.5 Image Adjustment Go to the live view interface and then click button on the tool bar under the camera window to go to the image adjustment interface.
  • Page 37 Live View NVR User Manual Introduction Image Adjustment  Select the camera and then click “Image Adjustment” to go to image adjustment tab. Refer to the above picture. Drag the slider to set the camera’s brightness, contrast, saturation and hue value. Check sharpen, wide dynamic and denoise and then drag the slider to set the value.
  • Page 38 Live View NVR User Manual Introduction The introductions of these parameters and buttons are as follows. Button/Paramet Meaning Click to zoom in/out the image. If manual mode is selected, focus button & “One Key Focus” & Focus Mode “Day/night mode switch autofocus” will be available; if auto mode is selected, the time interval setup will be available.

  • Page 39: Ptz

    NVR User Manual 6.1 PTZ Control Interface Introduction You can control the IP dome or PTZ which connects to the IP camera for PTZ control. Click on the tool bar at the bottom of the live view window to go to the PTZ control interface as shown below. You can select another IP dome or PTZ which connects to the IP camera on the top right of the interface for PTZ control.
  • Page 40 NVR User Manual drag the analog joystick. The farther you drag the analog joystick from the middle of the image, the faster the dome or PTZ rotates. The dome or PTZ will stop rotating when you stop dragging the analog joystick. 3D Control ...
  • Page 41 NVR User Manual Press and hold the left button of the mouse on any area of the camera image to zoom in the image; press and hold the right button to zoom out the image. Move the cursor of the mouse to the camera image and then slide the scroll wheel of the mouse forward to zoom in the image, slide the scroll wheel of the mouse backward to zoom out the image.

  • Page 42: Preset Setting

    NVR User Manual button to delete the selected cruise. You can also go to cruise setting interface for cruise setting, see 6.3 Cruise Setting for details. 6.2 Preset Setting Click StartSettingsCameraPTZPreset to go to the interface as shown below. Add preset ...
  • Page 43 NVR User Manual Add Cruise  Click in the camera list on the right side of the interface to display the cruise information of the dome and then click to add cruise. The operations of the “Add Cruise” window are similar to that of the PTZ control interface; please see 6.1 PTZ Control Interface Introduction for details.

  • Page 44: Record& Disk Management

    NVR User Manual Record & Disk Management Record& Disk Management 7.1 Record Configuration 7.1.1 Mode Configuration Please format HDDs before recording (refer Disk Management details). Click StartSettingsRecordMode Settings to go to the mode settings interface. You can set the record time under the “Manual Record Settings”...

  • Page 45: Advanced Configuration

    NVR User Manual Record & Disk Management Select one auto mode to pop up the corresponding window. Set the encode, GOP, resolution, FPS, bitrate type, quality, max bitrate and audio of each camera and then click “OK” to save the settings. Please adjust the parameters according to the actual condition.

  • Page 46: Encode Parameters Setting

    NVR User Manual Record & Disk Management (Overwrite record: the earliest record data will be replaced by the latest when the disks are full). Set the pre-alarm record time, post-alarm record time and expiration time of each camera and then click “Apply” to save the settings. Pre-alarm Record Time : set the time to record before the actual recording begins.
  • Page 47 NVR User Manual Record & Disk Management and deleted. Click the schedule name to display the detailed schedule information on the left side of the interface. The seven rows stand for the seven days in a week and each row stands for 24 hours in a day. Blue stands for the selected time and gray stands for unselected time.

  • Page 48: Record Schedule Configuration

    NVR User Manual Record & Disk Management Click “All” to set all day recording; click “Reverse” to swap the selected and unselected time in a day; click “Clear All” to clear all the selected area in a day. Click “Copy To” to copy the schedule of the day to other days. Refer to the picture below. Check the days in the window and then click “OK”...

  • Page 49: Record Mode

    NVR User Manual Record & Disk Management Go to “Edit Schedules” interface and then click to edit the schedule. The settings of “Edit Schedule” are similar to that of the “Add Schedule”. Click to delete the schedule. 7.4 Record Mode 7.4.1 Manual Recording Method One: Click on the tool bar at the bottom of the live view interface to enable recording of the camera.

  • Page 50: Disk

    NVR User Manual Record & Disk Management The camera will start analytics recording once you finish the above settings. This function is only available for some IPCs. 7.5 Disk 7.5.1 Disk Management Disk Management  Click StartSettingsDiskDisk Management to go to disk management interface. You can view the NVR’s disk number and disk status and so on in the interface.
  • Page 51 NVR User Manual Record & Disk Management ② Create an array. (Go to StartSettingsDiskPhysical Disk) a. Click “Physical Disk” tab and then click “Create an array”. b. Enter the user name and password which has the authority of Disk Management. c.

  • Page 52: Storage Mode Configuration

    NVR User Manual Record & Disk Management e. Select a hot spare. In the physical disk interface, select the disk that is not in the array and click as shown in the following pictures. RAID Rebuilding  If one of your disks is broken, the disk indicator on the front panel will turn red. Of course, a warning tip will pop up if the relevant HDD exception alarm is set.

  • Page 53: View Disk And S.m.a.r.t. Information

    NVR User Manual Record & Disk Management There are all four disk groups. By using disk group, you can correspond the camera to disk (the record data of the camera in the group will be stored into the disks in the same group). The NVR with e-SATA interface supports e-SATA recording.

  • Page 54: Playback& Backup

    NVR User Manual Playback & Backup Playback& Backup 8.1 Instant Playback Click on the tool bar at the bottom of the preview camera window to play back the record (click on the tool bar at the bottom of the live view interface to set the default playback time). Refer to the picture below. Drag the playback progress bar to change the playback time.
  • Page 55 NVR User Manual Playback & Backup On the panel on the right you will see the channel number and the recorded data coded by color. The bar that runs across them represents the playback time being viewed. You can move this bar around to export, highlight a section of the desired recording, click export and follow the prompts.
  • Page 56 NVR User Manual Playback & Backup Button Meaning Previous frame button. It works only when the forward playing is paused in single screen mode. Next frame button. It works only when the forward playing is paused in single screen mode. Click to step backward 30s and click to step forward 30s.

  • Page 57: Smart Playback

    NVR User Manual Playback & Backup Click it to go to the zoom in interface. The zoom in interface is similar to that of the camera window in the live view interface. Click to pause the Zoom In record playing; click to play the record.
  • Page 58 NVR User Manual Playback & Backup Smart Playback by Drawing Rectangle  Click and draw a rectangle in the desired area. Then the system will automatically search the record files of this area. The cyan blocks indicate that there are intelligent recording files. Move the cursor to such block and click to play the record.

  • Page 59: Record Search, Playback &Export

    NVR User Manual Playback & Backup Smart Playback by Drawing Quadrilateral  Click and draw a quadrangle in the desired area. Then the system will automatically search the record files of this area. The cyan blocks indicate that there are intelligent recording files. Move the cursor to such block and click to play the record.
  • Page 60 NVR User Manual Playback & Backup Select one camera in the interface and then click “Open” button. Click the image box to play the record in the small playback box on the left side of the interface (the box which has image inside indicates that the record data exist).

  • Page 61: Time Search

    NVR User Manual Playback & Backup Time Slice Search: Method One: Click “Year”, “Month” or “Day” button under the record time scale to select the time slice mode. In “Day” mode, click on the left/right side of the time scale to view the record of the last/next day; click “Minute”...

  • Page 62: Event Search

    NVR User Manual Playback & Backup 8.4.3 Event Search Click StartSearch and ExportEvent Search to go to “Event Search” tab as shown below. Check the event type in the interface as required. Click to set the start time and end time on the top left of the interface. Check cameras on the left side of the interface or check “All”...

  • Page 63: Bookmark Search

    NVR User Manual Playback & Backup 8.4.4 Bookmark Search Only if you add the tags can you play the record by tag search. Click StartPlayback to go to the playback interface and then click on the bottom of the camera window to add bookmarks when you want to mark the playback time point of the selected camera.

  • Page 64: View Export Status

    NVR User Manual Playback & Backup 8.4.6 View Export Status Click StartSearch and ExportExport Status or click on the tool bar at the bottom of the playback interface to view the export status. 8.4.7 Behavior Search Click StartIntelligent AnalyticsMuseum SearchBehavior to go to the following tab as shown below. Behavior Detection: when you select the smart playback mode, the system will analyze the video containing the object detection, exception, tripwire and intrusion detection.

  • Page 65: Alarm Management

    NVR User Manual Alarm Management Alarm Management 9.1 Sensor Alarm To complete the entire sensor alarm settings, you should enable the sensor alarm of each camera and then set up the alarm handling of each camera. Click StartSettingsAlarmSensor Alarm to go to the following interface. Select schedule and the alarm type (NO or NC) according to trigger type of the sensor.

  • Page 66: Motion Alarm

    NVR User Manual Alarm Management alarm is triggered. To set the duration time of the video, please see 9. 6 .3 Display for details. Pop-up Message Box : if enabled, the system will pop up the corresponding alarm message box automatically when the sensor alarm is triggered.

  • Page 67: Combination Alarm

    NVR User Manual Alarm Management Enable or disable “Record”, “Snapshot”, “Push”, “Alarm-out”, “Preset”, “Buzzer”, “Pop-up Video” and “E-mail”. The alarm handling settings of motion alarm the same as the sensor alarm (see 9.1 Sensor Alarm for details). Click “Apply” to save the settings. You can click “Motion Settings” to go to the motion configuration interface. 9.3 Combination Alarm ①...
  • Page 68 NVR User Manual Alarm Management Select the camera, enable the face detection and set the duration. If the added cameras are face detection cameras, on (front) or off (front) can be selected. Enable save source information and save face information. Select the alarm area.

  • Page 69: Crowd Density Detection

    NVR User Manual Alarm Management 9.4.2 Crowd Density Detection Only some versions may support this function. If your NVR doesn’t support this function, please skip the following instructions. Crowd Density Configuration: Alarms will be triggered if the crowd density exceeds the set threshold value in the pre-defined area. ①...

  • Page 70: People Intrusion Detection

    NVR User Manual Alarm Management ③ Click “Apply” to save the settings. You can click “Crowd Density Config” to go to the crowd density detection configuration interface. 9.4.3 People Intrusion Detection Only some versions may support this function. If your NVR doesn’t support this function, please skip the following instructions.

  • Page 71: People Counting

    NVR User Manual Alarm Management 9.4.4 People Counting Only some versions may support this function. People Counting Configuration: This function is to calculate the number of people entering or exiting in the detected area on the video by detecting, tracking and counting the head shapes of people. ①...

  • Page 72: Object Detection

    NVR User Manual Alarm Management for details). ③ Click “Apply” to save the settings. You can click “People Counting Config” to go to the people counting detection configuration interface. 9.4.5 Object Detection Object Detection Configuration: Click StartSettingsCameraSmart SettingsObject Detection to go to the following interface. Select the camera, enable the object detection and set the detect type.

  • Page 73: Tampering

    NVR User Manual Alarm Management handling setting of object detection alarm is similar to that of the sensor alarm (see 9.1 Sensor Alarm for details). Click “Apply” to save the settings. You can click “Object Config” to go to the object detection configuration interface.

  • Page 74: Tripwire

    NVR User Manual Alarm Management 9.4.7 Tripwire Line Crossing Configuration: Alarms will be triggered if someone or something crosses the pre-defined alarm line. Click StartSettingsCamera Smart SettingsTripwire to go to the following interface. Select the camera, enable the line crossing detection. Select the direction.

  • Page 75: Intrusion Detection

    NVR User Manual Alarm Management 9.4.8 Intrusion Detection Intrusion Configuration: Alarms will be triggered if someone or something intrudes into the pre-defined area. Click StartSettingsCamera Smart SettingsIntrusion Detection to go to the following interface. Select the camera, enable the intrusion detection. Select the alarm area.

  • Page 76: Warning Handling Settings

    NVR User Manual Alarm Management Enable or disable “Snapshot”, “Push”, “Alarm-out”, “Preset”, “Buzzer”, “Pop-up Video”, “Pop-up Message Box” and “E-mail”. The IPC Offline Settings are similar to that of the sensor alarm (see 9.1 Sensor Alarm for details). Click “Apply” to save the settings. 9.5.2 Warning Handling Settings Click StartSettingsAlarmExceptionWarning Handling Settings to go to the interface as shown below.

  • Page 77: E-Mail

    NVR User Manual Alarm Management Set the delay time and the schedule of each alarm-out. You can click “Edit Schedules” to edit the schedules (see 7.3.1 Add Schedule for details). Click “Apply” to save the settings. You can click “Test” to test the alarm output. 9.6.2 E-mail Click StartSettingsAlarmEvent NotificationE-mail to go to the e-mail configuration interface.

  • Page 78: Push Message

    NVR User Manual Alarm Management 9.6.5 Push Message Click StartSettingsAlarmEvent NotificationPush Message to go to the interface as shown below. Check “Enable” and then click “Apply” button to save the settings. If Push Server is online, it will push messages to the mobile clients.
  • Page 79 NVR User Manual Alarm Management Click “Clear” button to stop the buzzer when the buzzer alarm happens. Click to view the detail information as shown below. If the exception information is more than one page, you can enter the number in the box and then click to jump to the specified page.

  • Page 80: Account & Permission Management

    NVR User Manual Account & Permission Management Account & Permission Management 10.1 Account Management Click StartSettingsAccount and AuthorityAccountEdit User to go to the interface as shown below. Area ① displays the user permissions. Area ② displays the user list. Click the user in the list to display its user permissions in area ①.

  • Page 81: Edit User

    NVR User Manual Account & Permission Management Set the username, password and group. User can also set the pattern lock here. The e-mail address is optional. Click “Add” to add the user. 10.1.2 Edit User Click StartSettingsAccount and AuthorityAccountEdit User and then click in the user list or double click the user to edit the user information.

  • Page 82: User Login & Logout

    NVR User Manual Account & Permission Management Enter current password and then check “Enable” to input pattern lock. Recover Password  Click “Recover Password” to reset the password. Edit User  Click “Edit User” to pop up the window as shown below. The admin is enabled, its permission control is closed and permission group cannot be changed by default.

  • Page 83: Permission Management

    NVR User Manual Account & Permission Management window and then click “OK” button to log out the system. 10.3 Permission Management 10.3.1 Add Permission Group Click StartSettingsAccount and AuthorityAccountEdit Permission Group to go to the interface as shown below. Click to add permission group.

  • Page 84: Preview On Logout

    NVR User Manual Account & Permission Management Check “Enable” and then choose “Enable Allow List” or “Enable Block List” (the PC client of which the IP address is in the allow list can access NVR remotely while the PC client in the block list cannot). Add IP/IP segment/MAC.

  • Page 85: Password Security

    NVR User Manual Account & Permission Management ARP Guard: Address Resolution Protocol Guard. This function can protect the LAN from APR attack and make the network run stably. If it is enabled, you can enable auto gateway MAC or manually set gateway MAC. Additionally, detection defense also can be enabled as needed.

  • Page 86: Device Management

    NVR User Manual Device Management Device Management 11.1 Network Configuration 11.1.1 TCP/IP Configuration Click StartSettingsNetworkTCP/IP to go to the following interface. If the NVR has two network ports or above, you can select the network work pattern as required. TOE: It is a technology for improving the network transmission speed. Please enable it according to the actual network situation.

  • Page 87: Port Configuration

    NVR User Manual Device Management 11.1.2 Port Configuration Click StartSettingsNetworkPort to go to the interface as shown below. Enter the HTTP port, HTTPS port, server port and RTSP port of the NVR, enable “Anonymous” as needed and then click “Apply” button to save the settings. HTTP Port : the default HTTP port of the NVR is 80.
  • Page 88 NVR User Manual Device Management ② Install a certificate. * You can create a private certificate here. Click the “Create” button to create a private certificate. Enter the country (only two letters available), domain (NVR’s IP address/domain), validity date, password, province/state, region and so on.

  • Page 89: Pppoe Configuration

    Click “Apply” to save the settings. 11.1.4 DDNS Configuration The DDNS is used to control the dynamic IP address through domain name.Speco Technologies provides free DDNS service with US-based servers. You can access the NVR easily if the DDNS is enabled and configured. Click StartSettingsNetworkDDNS to go to the interface as shown below.

  • Page 90: E-Mail Configuration

    NVR User Manual Device Management 11.1.5 E-mail Configuration Click StartSettingsNetworkE-mail to go to the following interface. Enter the sender’s name, e-mail address, SMTP server and SMTP port (you can click “Default” to reset the SMTP port to the default value) and then enable or disable the SSL and attaching image.

  • Page 91: Upnp Configuration

    NVR User Manual Device Management Click “Add” and then enter the recipient’s e-mail address and select the schedule (if a schedule is selected, the system will send the alarm email and the recipient will receive it only in the selected schedule time) in the popup window. Click “Add”...

  • Page 92: Nat Configuration

    NVR User Manual Device Management To use this function, the NVR shall be connected to a switch supporting 802.1x protocol. The switch can be considered as an authentication system to identify the device in a local network. If the NVR connected to the network interface of the switch has passed the authentication of the switch, it can be accessed via the local network.

  • Page 93: Date And Time Configuration

    NVR User Manual Device Management Device Name : The name of the device. It may display on the client end or CMS that help user to recognize the device remotely. Video Format : Two modes: PAL and NTSC. Select the video format according to the camera. Sequence Automatically: Check it and set “wait time”.

  • Page 94: Recorder Osd Settings

    NVR User Manual Device Management 11.2.3 Recorder OSD Settings Click StartSettingsSystemBasicRecorder OSD settings to go to the following interface. OSD name and icon can be enabled here. 11.3 Factory Default Click StartSettingsSystemMaintenanceFactory Default and then click “Reset to factory default” button in the interface to reset to the factory default settings (check “Reset retain Network Configuration”...

  • Page 95: Backup And Restore

    NVR User Manual Device Management “Device Name” option and go to the path where the upgrade software exists. Select the upgrade software and then click “Upgrade”. The system may automatically restart during upgrading. Please wait for a while and do not power off the NVR during upgrading.

  • Page 96: Restart Automatically

    NVR User Manual Device Management 11.6 Restart Automatically automatic restart time maintain regularly. Click StartSettingsSystemMaintenanceAuto Maintenance to go to the interface as shown below. Enable auto maintenance, set the interval days and point of time and then click “Apply” to save the settings. The NVR will restart automatically at the pointed time every interval days.

  • Page 97: Remote Surveillance

    1 1 .1. 8 NAT Configuration for details. Scan the QRCode through the Speco Blue App available for iOS and Android to easily and securely view your cameras. Run the mobile client, go to the “Add Device” interface and then click to scan the QRCode of the NVR (Go to StartSettingsSystemInformationBasic to view the QRCode of the NVR).

  • Page 98: Web Wan Access

    NVR User Manual Remote Surveillance 12.3 Web WAN Access Set the network of the NVR. Please refer to 1 1 .1.1 TCP/IP Configuration for details. Click Start→Settings→Network→NAT to go to the interface for NAT configuration and check “Enable”. Click “Apply” to save the settings and make note of the QR code number under the QR code.

  • Page 99: Remote Preview

    NVR User Manual Remote Surveillance and playback. Please refer to the tips in the remote interfaces for details. The buttons and icons on the top right corner of the remote interface are introduced as follows. admin : the current login username. Logout : click it to log out and return to the login interface.
  • Page 100 NVR User Manual Remote Surveillance instance, the left number 3 in on the left panel stands for the number of online cameras; the right number 4 stands for the number of all the added cameras. Enter the camera name in the search box and then click search the camera.
  • Page 101 NVR User Manual Remote Surveillance Click one camera window in the preview area and then click to set the camera’s live view stream and record stream to main stream in manual record mode; click to set the camera’s live view stream and record stream to sub stream.

  • Page 102: Remote Playback

    NVR User Manual Remote Surveillance Button Meaning Click to rotate the dome; click to stop rotating the dome. Drag the slider to adjust the rotating speed of dome. Click to zoom in/out camera image. Click to increase/ decrease the focal length. Click to increase/decrease the iris of the dome.

  • Page 103: Remote Export

    NVR User Manual Remote Surveillance Button Meaning Previous frame button. It works only when the forward playing is paused in single screen mode. Next frame button. It works only when the forward playing is paused in single screen mode. Click to step backward 30s and click to step forward 30s.

  • Page 104: Remote Configuration

    NVR User Manual Remote Surveillance details. 12.4.5 Remote Configuration Click “Function Panel” in the remote interface and then configure the camera, record, alarm, disk, network, account and authority and system of the NVR remotely. All of these settings are the same as the settings of the NVR. See the configurations of the NVR for details.

  • Page 105: Appendix Afaq

    NVR User Manual Appendix A FAQ Q1. Why can’t I find the HDD? a. Please check the power and SATA data cables of the HDD to make sure they are well connected. b. For some NVRs with the 1U or small 1U case, the power of the adapter may be not enough for operating them. Please use the power adaptor supplied along with the NVR.
  • Page 106 NVR User Manual Q6. The system cannot record, why? a. Make sure the HDD was formatted prior to use. b. The record schedule has not been set in manual record mode. Please refer to 7.3.2 Record Schedule Configuration for details. Maybe HDD is full and thus the NVR is not able to record.
  • Page 107 NVR User Manual Select SecurityCustom Level. Refer to Fig 10-1. Enable all the sub options under “ActiveX controls and plug-ins”. Refer to Fig 10-2. Then click “OK” to finish setup. b. Other plug-ins or anti-virus may block ActiveX. Please disable or do the required settings. Fig 10-1 Fig 10-2 Q9.
  • Page 108 NVR User Manual Select camera in the resource tree on the left side of the interface to play the camera record. Click on the tool bar under the camera image to enable audio. Refer to Fig 11-2. Note: The record will not have audio output if you disable the audio when recording by NVR. Please 7.1.1 Mode Configuration 7.2 Encode Parameters Setting for details.
  • Page 109 NVR User Manual Fig 11-2...

  • Page 110: Appendix B Calculate Recording Capacity

    NVR User Manual Calculate Recording Capacity Appendix B Calculate Recording Capacity The recording capacity is mainly up to the record resolution, record stream and bitrate. Different image quality parameters decide different disk capacity occupation in equal times. The bigger the record resolution, record stream and record bitrate is, the more disk capacity is taken up in equal times.
  • Page 111 Compatible Device List NVR User Manual...

  • Page 112: Appendix C Specifications

    NVR User Manual Specifications Appendix C Specifications Model N64NR Compression Standard H.265 System Embedded Linux IPC Input 64CH Network Access 320Mbps Bandwidth Network Access Video 8MP/6MP/5MP/4MP/3MP/1080P/960P/720P@25/30fps Format HDMI×1: 4K×2K/1920x1080/1280×1024， Output VGA×1：1920x1080/1280×1024 Network Input 64CH IPC audio input Audio 2-way Audio RCA×1 Local Output RCA×1...
  • Page 113 NVR User Manual Specifications Protocol TCP/IP，PPPoE，DHCP，DNS，DDNS，UPnP，NTP，SMTP Web Client Multiple online users monitoring Mobile iOS, Android Device SATA×8，max 14TB per HDD Storage E-SATA E-SATA×2 Local By U disk，USB mobile HDD Export Network USB2.0×2（one in the front panel and the other in the rear panel） Remote Controller Interface Power Consumption...
  • Page 114 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC Responsible Party: Speco Technologies 200 New Highway Amityville, NY 11701 www.specotech.com...
