Polycom ReadiConvene Deployment Manual page 33

24 In the Circuit ID box, enter the Circuit ID defined for the IP Span in
the IP Network Service.
The name of the assigned Network Service is updated in the
appropriate field.
25 Click OK.
26 Reset the MCU.
The MGC unit (the IP card) is now registered with the LCS server.
To verify the registration status of the IP card with the SIP Server:
1
Expand the Cards tree.
2
Right-click the IP Card icon, and then click Properties.
3

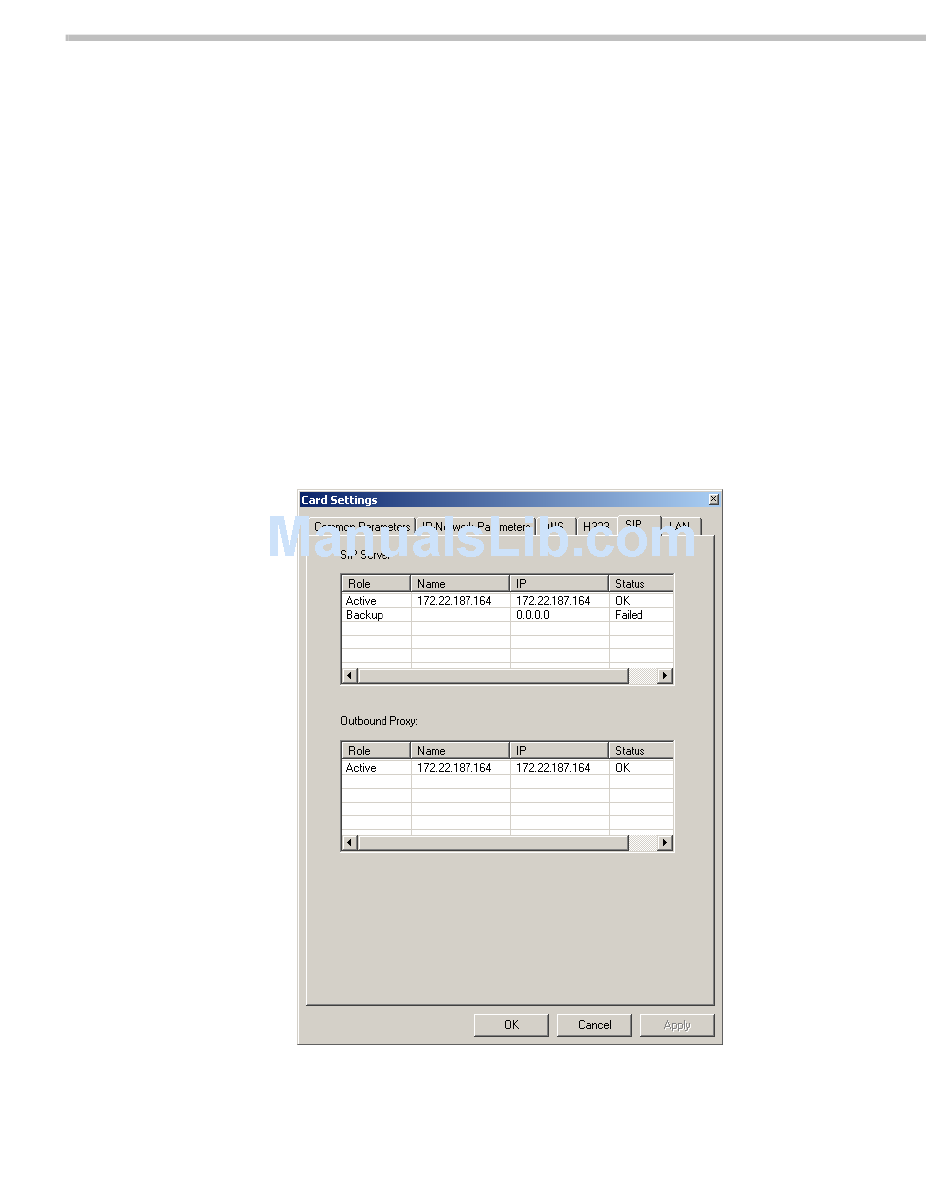

In the Card Settings dialog box, click the SIP tab.
4 In the Card Settings—SIP dialog box, the LCS Server should be
marked as Active (in the Role column) and its Status as OK.
Polycom-Microsoft Deployment Guide
2-21
