Polycom ReadiConvene Deployment Manual page 38

Microsoft—Polycom Environment Setting
2-26
6

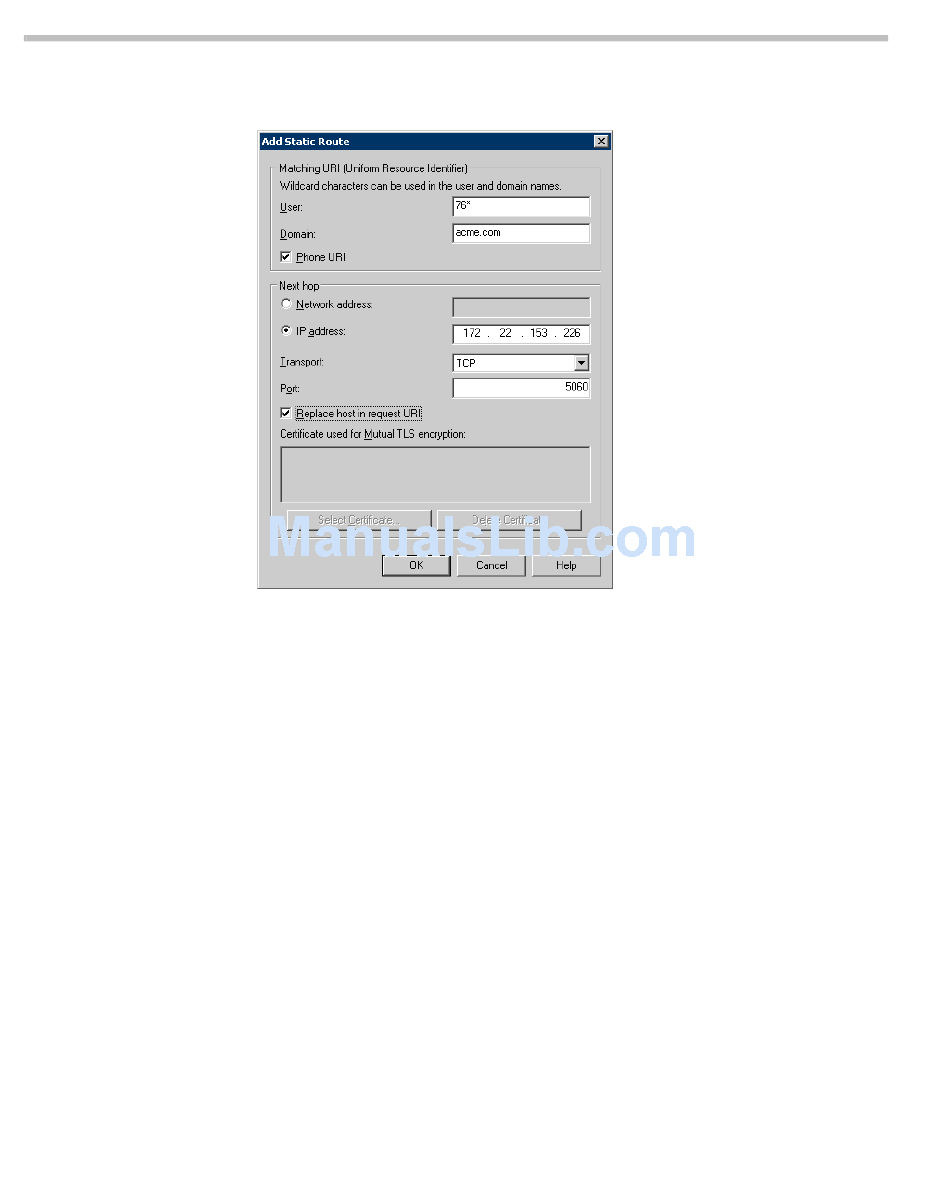

In the Add Static Route dialog box, define the following parameters:
a In the User box, define the wildcard characters that will be used
for the Meeting Rooms and Entry Queue names, using the
format xy*. For example, if you define 76*, the LCS will forward
all the calls that dialed 76 at the beginning of the URI string to
the MGC unit. Once the call arrives to the MGC unit, the system
looks for the appropriate conference or entry queue according to
the numeric ID added to the URI string.
b
In the Domain box, enter the name of the domain where the user
can be found. The domain name can be replaced by the wildcard
character (*).
c
In the Next Hop section, in the IP address box, enter the IP address
of the IP card to which the IP Network Service is assigned.
d
In the Next Hop section, in the Port box, enter the port number on
the MGC system side.
e
Click OK.
The new Static Route is added to the list of static routes defined
in the Routing tab.
7
Click OK.
