SmartNode 5540E & 4140E Series User Manual
Port
Gigabit Ethernet ports
ETH 0/0 & ETH 0/1
Analog voice ports,
FXS 0/0–0/7
Analog voice ports,
FXO 0/0–0/7
USB 2.0 port
12–48 VDC power terminal
block
POWER LED
VOIP LED
ETH 0/0 & ETH 0/1 ports
Link/Activity LED (green)
ETH 0/0 & ETH 0/1 ports
1 Gbps Link LED (yellow)
Reset button
On the products the following model code conventions apply:
JS stands for FXS ports
JO stands for FXO ports
V stands for the number of VoIP calls
For a complete listing of available models, refer to the SmartNode VoIP page
Note
at https://www.patton.com/products/voip-comparison.asp.
SmartNode devices overview

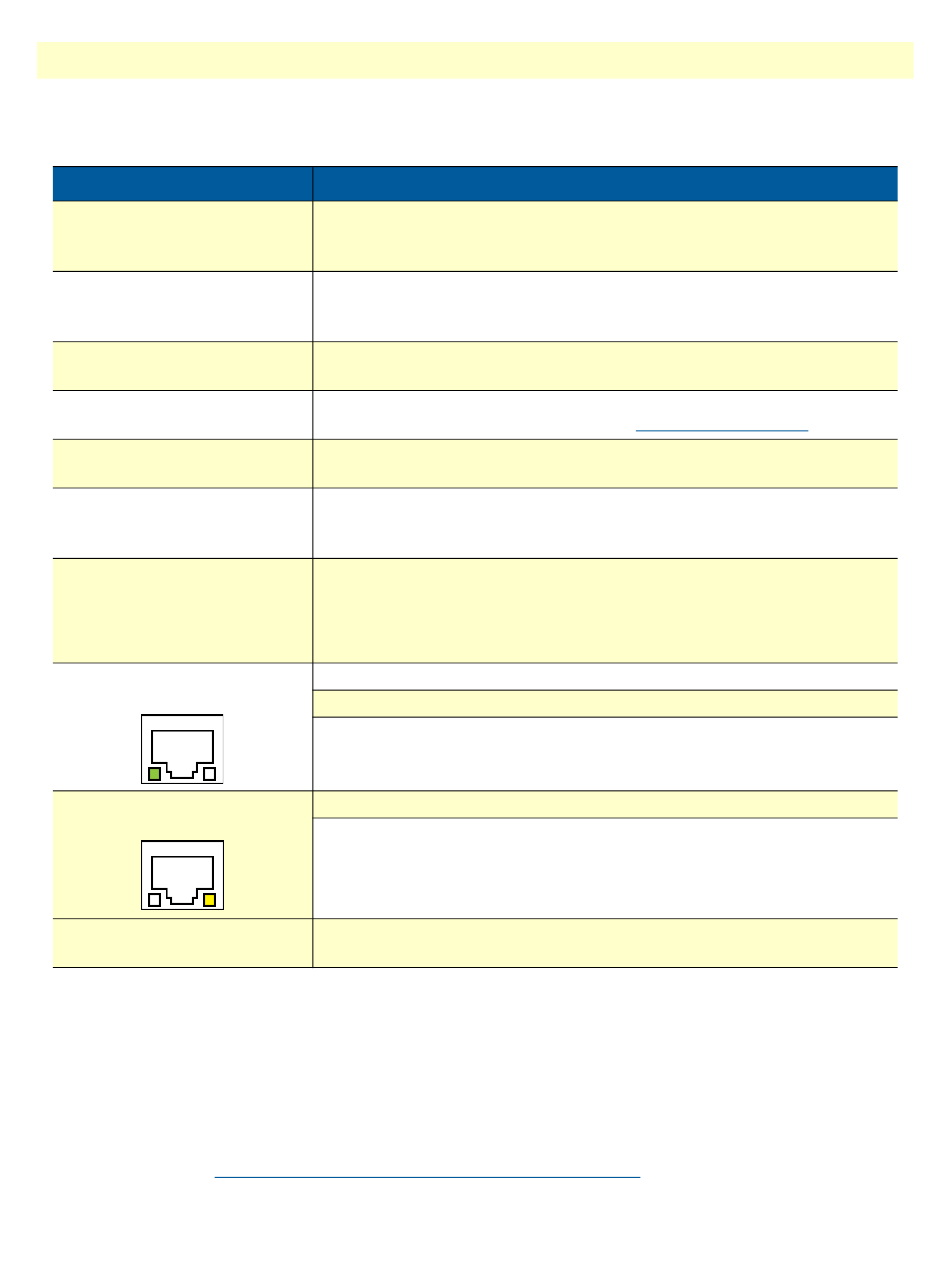

Table 3. SN5540E LEDs, ports, and button
RJ-45 connectors that connect the SmartNode device to an Ethernet device
(e.g., a cable or DSL modem, LAN hub or switch). These are LAN/WAN con-
figurable.
FXS RJ-11(6 position, 4 wire) connectors that connect the device with an
analog terminal (a telephone, for example). FXS on-hook voltage is 48V
for each FXS port.
FXO RJ-11 (6 position, 4 wire) connectors. These ports connect to FXS
devices such as the PSTN.
USB 2.0 host port used to connect a USB 3G/4G cellular modem. A list of
supported USB models can be found here
The SmartNode device requires 12 VDC, 1.25 A power for operation.
When lit, indicates power is applied. Blinks fast during bootloader phase
and blinks slow during the boot process. Constantly lit when the system
is up and running.
When lit, indicates the SmartNode device is registered to a SIP
server, or a SIP device has registered to the SmartNode device.
Off indicates the unit is not configured or registered, or has no active
directly routed VoIP connection.
On: Connected to network
Flashing: Data is received or transmitted
Off: Not connected to network
On: Connected to network at 1 Gbps
Off: Connected to network at 10/100 Mbps or not connected to network
The reset button has several functions, as described in appendix F,
"Reset Button Functions"
Description
Certified USB Modems
on page 63.
2 • General information
21
