SmartNode™ 4120
Single/Dual-Port ISDN BRI
VoIP Gateway
User Manual
Important
approved for use in an industrial environment
This device is approved for connection to the public ISDN telecommunication network, over BRI/S0-ISDN interfaces.
This is a Class B device and is intended for use in a light industrial or residential environment. It is not intended nor
—
.
Sales Office:
+1 (301) 975-1000
Technical Support:
+1 (301) 975-1007
E-mail:
support@patton.com
www.patton.com
Part Number: 07MSN4120-UM , Rev. B
Revised: February 9, 2012
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Patton Smart Node 4120
Summary of Contents for Patton Smart Node 4120
-

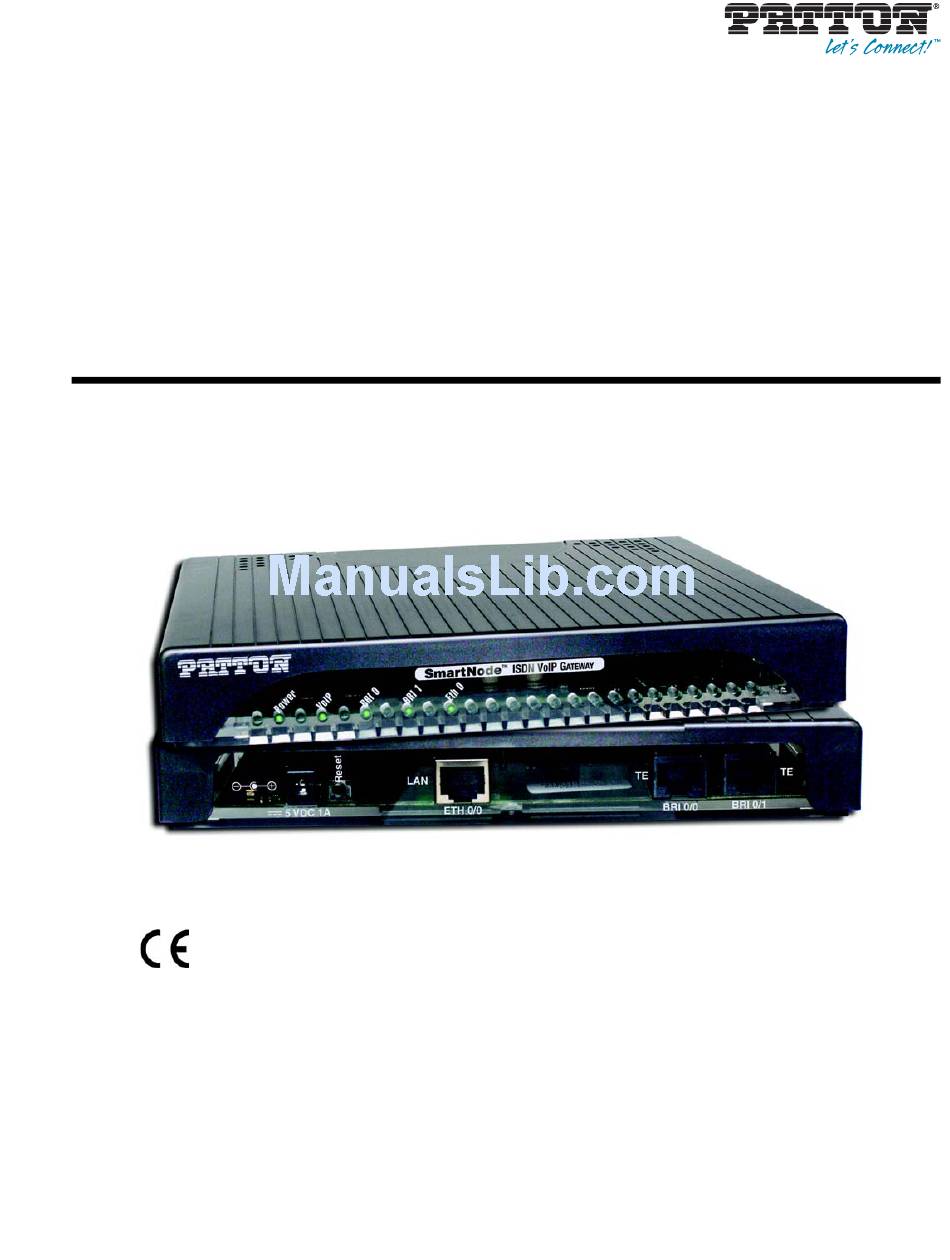

Page 1: User Manual
This device is approved for connection to the public ISDN telecommunication network, over BRI/S0-ISDN interfaces. Sales Office: +1 (301) 975-1000 Technical Support: +1 (301) 975-1007 E-mail: support@patton.com www.patton.com Part Number: 07MSN4120-UM , Rev. B Revised: February 9, 2012... - Page 2 Under no condition shall Patton Electronics be liable for any damages incurred by the use of this product. These damages include, but are not limited to, the following: lost profits, lost savings and incidental or consequential damages arising from the use of or inability to use this product.
-
Page 3: Summary Table Of Contents
Summary Table of Contents General information ............................14 SN4120 Applications overview........................18 SmartNode installation..........................20 SmartNode initial configuration ........................25 Contacting Patton for assistance ........................32 Compliance information ..........................35 Specifications ..............................38 Cabling ................................. 42 Port pin-outs ..............................45 SN4120 factory configuration ........................ -
Page 4: Table Of Contents
Table of Contents Summary Table of Contents ........................... 3 Table of Contents ............................4 List of Figures ..............................7 List of Tables ..............................8 About this guide ............................. 9 Audience................................. 9 Structure................................. 9 Precautions ................................10 Safety when working with electricity .......................11 General observations ............................12... - Page 5 Contacting Patton for assistance ........................32 Introduction ................................33 Contact information..............................33 Patton support headquarters in the USA ......................33 Alternate Patton support for Europe, Middle East, and Africa (EMEA) ............33 Warranty Service and Returned Merchandise Authorizations (RMAs)..............33 Warranty coverage ............................33 Out-of-warranty service ..........................34 Returns for credit ............................34...
- Page 6 SmartNode 4120 User Manual Port pin-outs ..............................45 Ethernet ................................46 ISDN BRI TE (User) port.............................46 SN4120 factory configuration ........................47 Introduction ................................48 End user license agreement ........................... 49 End User License Agreement ..........................50 1. Definitions ..............................50 2. Title ................................50 3. Term ................................50 4.
-
Page 7: List Of Figures
List of Figures SN4120 rear panel ..............16 SN4120 front panel . -
Page 8: List Of Tables
List of Tables General conventions ..............13 SmartNode 4120 BRI Ports and Voice Channels . -
Page 9: About This Guide
Chapter 4 on page 25 provides quick-start procedures for configuring the SN4120 • Chapter 5 on page 32 contains information on contacting Patton technical support for assistance • Appendix A on page 35 contains compliance information for the SN4120 •... -
Page 10: Precautions
SmartNode 4120 User Manual About this guide Precautions Notes, cautions, and warnings, which have the following meanings, are used throughout this guide to help you become aware of potential problems. Warnings are intended to prevent safety hazards that could result in per- sonal injury. -
Page 11: Safety When Working With Electricity
SmartNode 4120 User Manual About this guide Safety when working with electricity • Do not open the device when the power cord is connected. For systems without a power switch and without an external power adapter, line volt- ages are present within the device when the power cord is connected. •... -
Page 12: General Observations
SmartNode 4120 User Manual About this guide Always follow ESD prevention procedures when removing and replacing cards. CAUTION Wear an ESD-preventive wrist strap, ensuring that it makes good skin contact. Connect the clip to an unpainted surface of the chassis frame to safely channel unwanted ESD voltages to ground. -
Page 13: Typographical Conventions Used In This Document
SmartNode 4120 User Manual About this guide Typographical conventions used in this document This section describes the typographical conventions and terms used in this guide. General conventions The procedures described in this manual use the following text conventions: Table 1. General conventions Convention Meaning Indicates a cross-reference hyperlink that points to a figure, graphic, table, or sec-... -
Page 14: General Information
Chapter 1 General information Chapter contents SN4120 overview ..............................15 SN4120 model codes ............................15 SN4120 rear panel ............................16 SN4120 front panel ............................17... -
Page 15: Sn4120 Overview
4120 provides advanced ISDN functionality such as Explicit Call Transfer (ECT) support and Advice of Charge (AOC) over SIP. Patton CPEs are interoperable with most IP PBX and Unified Communication ven- dors such as Asterisk, 3CX, Elastix, Microsoft, IBM, Swyx, SNOM One and many others. -
Page 16: Sn4120 Rear Panel
SmartNode 4120 User Manual 1 • General information SN4120 rear panel The SN4120 is an ISDN BRI VoIP Gateway that supports two VoIP calls via a single ISDN BRI port (see figure 1). The SN4120 rear panel ports are described in table SN4120/2BIS4V/EUI (2x BRI/So + 4 voice/fax calls) -
Page 17: Sn4120 Front Panel
SmartNode 4120 User Manual 1 • General information SN4120 front panel Ethernet BRI/So 0/1 BRI/So 0/0 VoIP Power Figure 2. SN4120 front panel Figure 2 shows SN4120 LEDs, the LED definitions are listed in table Table 4. SN4120 LED definitions Description Note If an error occurs, all LEDs will flash once per second. -
Page 18: Sn4120 Applications Overview
Chapter 2 SN4120 Applications overview Chapter contents Typical application ..............................19... -
Page 19: Typical Application
SmartNode 4120 User Manual 2 • SN4120 Applications overview Typical application The SmartNode 4120 BRI VoIP Gateway enables any IP PBX to make calls to the ISDN PSTN. The com- pact, reliable stand-alone design allows enterprises to easily and flexibly integrate BRI lines into their VoIP sys- tem. -
Page 20: Smartnode Installation
Chapter 3 SmartNode installation Chapter contents Planning the installation............................21 Site log ................................21 Network information ............................21 Network Diagram ............................21 IP related information .............................22 Software tools ..............................22 Power source ..............................22 Location and mounting requirements ......................22 Installing the SN4120 ............................23 Placing the SN4120 ............................23 Installing cables ...............................23... -
Page 21: Planning The Installation
Site log Patton recommends that you maintain a site log to record all actions relevant to the system, if you do not already keep such a log. Site log entries should include information such as listed in table Table 5. -
Page 22: Ip Related Information
If you suspect that your AC power is not reliable, for example if room lights flicker often or there is machinery with large motors nearby, have a qualified professional test the power. Patton recommends that you include an uninterruptible power supply (UPS) in the installation to ensure that VoIP service is not impaired if the power fails. -
Page 23: Installing The Sn4120
SmartNode 4120 User Manual 3 • SmartNode installation Installing the SN4120 SN4120 hardware installation consists of the following: • Placing the device at the desired installation location (see section “Placing the SN4120”) • Connecting the interface and power cables (see section “Installing cables”) When you finish installing the SN4120, go to chapter 4,... -
Page 24: Connecting The Sn4120 To The Power Supply
2. Verify that the AC power cord included with your SN4120 is compatible with local standards. If it is not, refer to chapter 5, “Contacting Patton for assistance” on page 32 to find out how to replace it with a com- patible power cord. -
Page 25: Smartnode Initial Configuration
Chapter 4 SmartNode initial configuration Chapter contents Introduction ................................26 Start the SmartNode Discovery Tool........................26 Access the Web Browser (GUI) Interface.......................27 Configuring your SN4120.............................29 Accessing the Internet .............................29 Configuring the default gateway ........................31... -
Page 26: Introduction
The SmartNode discovery tool provides a quick and easy way to access the management interfaces residing within your SN4120. The tool identifies any Patton VoIP devices installed on your network and displays the model number, IP address and MAC address of each unit.To use the discovery tool, do the following: 1. -
Page 27: Access The Web Browser (Gui) Interface
SmartNode 4120 User Manual 4 • SmartNode initial configuration Access the Web Browser (GUI) Interface The SN4120 provides a web-browser-based graphical user interface (GUI) that makes it easy to configure, monitor and manage your SN4120. To access the web-browser interface, do the following: 1. -
Page 28: Main Gui Elements
SmartNode 4120 User Manual 4 • SmartNode initial configuration Navigation bar Current system path Configuration and status information Figure 6. Main GUI elements The GUI consists of the following main elements (see figure • The “Navigation Bar” on the left edge presents you with a menu listing giving access to the various configu- ration and status pages of the SN4120. -
Page 29: Configuring Your Sn4120
SmartNode 4120 User Manual 4 • SmartNode initial configuration Configuring your SN4120 Once you have logged in you can use the browser-based graphical user interface (GUI) to configure and man- age your SN4120. The information in this section is intended to introduce the configuration tools and get you started. -
Page 30: Ethernet Configuration Page
SmartNode 4120 User Manual 4 • SmartNode initial configuration Figure 7. Ethernet Configuration page The SN4120 supports two configuration options for the Ethernet connection (see figure 7), as described in the following paragraphs: • DHCP (client—factory default). The SN4120’s WAN port has a DHCP client enabled that uses an established Internet connection to get the Internet connectivity parameters (IP address, default gateway) automatically from a DHCP server. -
Page 31: Configuring The Default Gateway
SmartNode 4120 User Manual 4 • SmartNode initial configuration Configuring the default gateway To configure the default gateway on the SN4120: 1. In the configuration menu pane, click IP/DNS. Click on the Routes tab. The Configuration screen for Static Routes displays (figure Figure 8. -
Page 32: Contacting Patton For Assistance
Contacting Patton for assistance Chapter contents Introduction ................................33 Contact information..............................33 Patton support headquarters in the USA ......................33 Alternate Patton support for Europe, Middle East, and Africa (EMEA) ............33 Warranty Service and Returned Merchandise Authorizations (RMAs)..............33 Warranty coverage ............................33 Out-of-warranty service ..........................34 Returns for credit ............................34... -
Page 33: Introduction
RAS warranty and obtaining a return merchandise authorization (RMA). Contact information Patton Electronics offers a wide array of free technical services. If you have questions about any of our other products we recommend you begin your search for answers by using our technical knowledge base. Here, we have gathered together many of the more commonly asked questions and compiled them into a searchable database to help you quickly solve your problems. -
Page 34: Out-Of-Warranty Service
RMA#: xxxx 7622 Rickenbacker Dr. Gaithersburg, MD 20879-4773 USA Patton will ship the equipment back to you in the same manner you ship it to us. Patton will pay the return shipping costs. Warranty Service and Returned Merchandise Authorizations (RMAs) -
Page 35: A Compliance Information
Appendix A Compliance information Chapter contents Compliance ................................36 EMC Compliance ............................36 Safety Compliance ............................36 PSTN Compliance ............................36 CE Declaration of Conformity ..........................36 EG-Konformitätserklärung............................37 Authorized European Representative ........................37... -
Page 36: Compliance
• ACMA AS/ACIF S003:2008 CE Declaration of Conformity Patton Electronics, Inc declares that this device is in compliance with the essential requirements and other rel- evant provisions of: 2004/108/EC on the approximation of the laws of the member states relating to electromagnetic compati- bility. -
Page 37: Eg-Konformitätserklärung
Die Sicherheitshinweise in der mitgelieferten Produktdokumenta- tion sind zu beachten. Die Konformität mit der oben erwähnten Richtlinie wird durch das CE-Zeichen auf dem Gerät bestätigt. Die unterzeichnete Konformitätserklärung kann heruntergeladen werden von: www.patton.com/certifications/ Authorized European Representative D R M Green, European Compliance Services Limited. - Page 38 Appendix B Specifications Chapter contents DSP..................................39 Voice connectivity ..............................39 Data connectivity ..............................39 Voice processing (signaling dependent) .........................39 Fax and modem support............................39 Voice signalling ..............................39 Voice routing—session router..........................40 services................................40 Management .................................40 Operating environment ............................41 Operating temperature ............................41 Operating humidity ............................41 System...................................41 Dimensions ................................41 Weight and power dissipation...
-
Page 39: B Specifications
SmartNode 4120 User Manual B • Specifications One 2/4 channel DSP Voice connectivity Single/dual ISDN BRI So (TE), 4-wire RJ45 port labeled BRI Point-to-point, point-to-multipoint configurable Data connectivity 10/100Base-TX Ethernet WAN port Full duplex, autosensing, auto-MDX Voice processing (signaling dependent) 2/4 full-duplex channels of Voice CODECS: •... -
Page 40: Voice Routing-Session Router
SmartNode 4120 User Manual B • Specifications H.323v4 SIP call transfer, redirect Overlap or en-bloc dialing DTMF in-band, out-of-band Configurable progress tones Voice routing—session router Local switching Interface huntgroups Call-Distribution groups Call Routing Criteria: • Interface • Calling/called party number •... -
Page 41: Operating Environment
SmartNode 4120 User Manual B • Specifications TFTP configuration & firmware loading SNMP v1 agent (MIB II and private MIB) Built-in diagnostic tools (trace, debug) Operating environment Operating temperature 32–104°F (0–40°C) Operating humidity 5–80% (non condensing) System CPU Motorola MC870 operating at 66 MHz Memory: •... -
Page 42: Cabling
Appendix C Cabling Chapter contents Introduction ................................43 Ethernet ................................43 ISDN BRI ................................44... -
Page 43: Introduction
SmartNode 4120 User Manual C • Cabling Introduction This section provides information on the cables used to connect the SN4120 and the interface cards to the existing network infrastructure and to third party products. Ethernet Ethernet devices (10Base-T/100Base-T) are connected to the SN4120 over a cable with RJ-45 plugs. All Ether- net ports on the SN4120 are Auto-MDX and use any straight or crossover cable to connect to hubs, switches, PCs or other devices. -
Page 44: Isdn Bri
SmartNode 4120 User Manual C • Cabling ISDN BRI The ISDN port connects to ISDN terminals (phones, PBXs) or an ISDN S-BUS using cables terminated with RJ-45 connectors. Use straight-though cables to connect to the TE port of your phone, PBX, or residential S-BUS. -
Page 45: Port Pin-Outs
Appendix D Port pin-outs Chapter contents Ethernet ................................46 ISDN BRI TE (User) port.............................46... -
Page 46: Ethernet
SmartNode 4120 User Manual D • Port pin-outs Ethernet Table 7. RJ-45 socket Signal Note Pins not listed are not used. ISDN BRI TE (User) port The BRI TE port uses an 8-pin RJ-45 connector (the pinout is shown in table Table 8. -
Page 47: Sn4120 Factory Configuration
Appendix E SN4120 factory configuration Chapter contents Introduction ................................48... -
Page 48: Introduction
SmartNode 4120 User Manual E • SN4120 factory configuration Introduction The factory configuration settings for the SN4120 are shown below. #----------------------------------------------------------------# # Factory configuration file #----------------------------------------------------------------# sntp-client sntp-client server primary 129.132.2.21 port 123 version 4 system ic voice 0 low-bitrate-codec g729 context ip router interface eth0 ipaddress dhcp... -
Page 49: F End User License Agreement
Appendix F End user license agreement Chapter contents End User License Agreement ..........................50 1. Definitions ..............................50 2. Title ................................50 3. Term ................................50 4. Grant of License ............................50 5. Warranty ..............................50 6. Termination ..............................51 7. Other licenses .............................51... -
Page 50: End User License Agreement
Program(s), even if Patton Electronics Company has been advised of the possibil- ity of such damages. Because some states do not allow the exclusion or limitation of liability for consequential or incidental damages, the above limitation may not apply to you. -
Page 51: Termination
The End User may terminate this agreement by returning the Designated Equipment and destroying all copies of the licensed Program(s). Patton Electronics Company may terminate this Agreement should End User violate any of the provi- sions of section “4. Grant of License”...
