Hardware Installations and Upgrades
Fan Connections
Use the figures below to determine the proper fan connections.

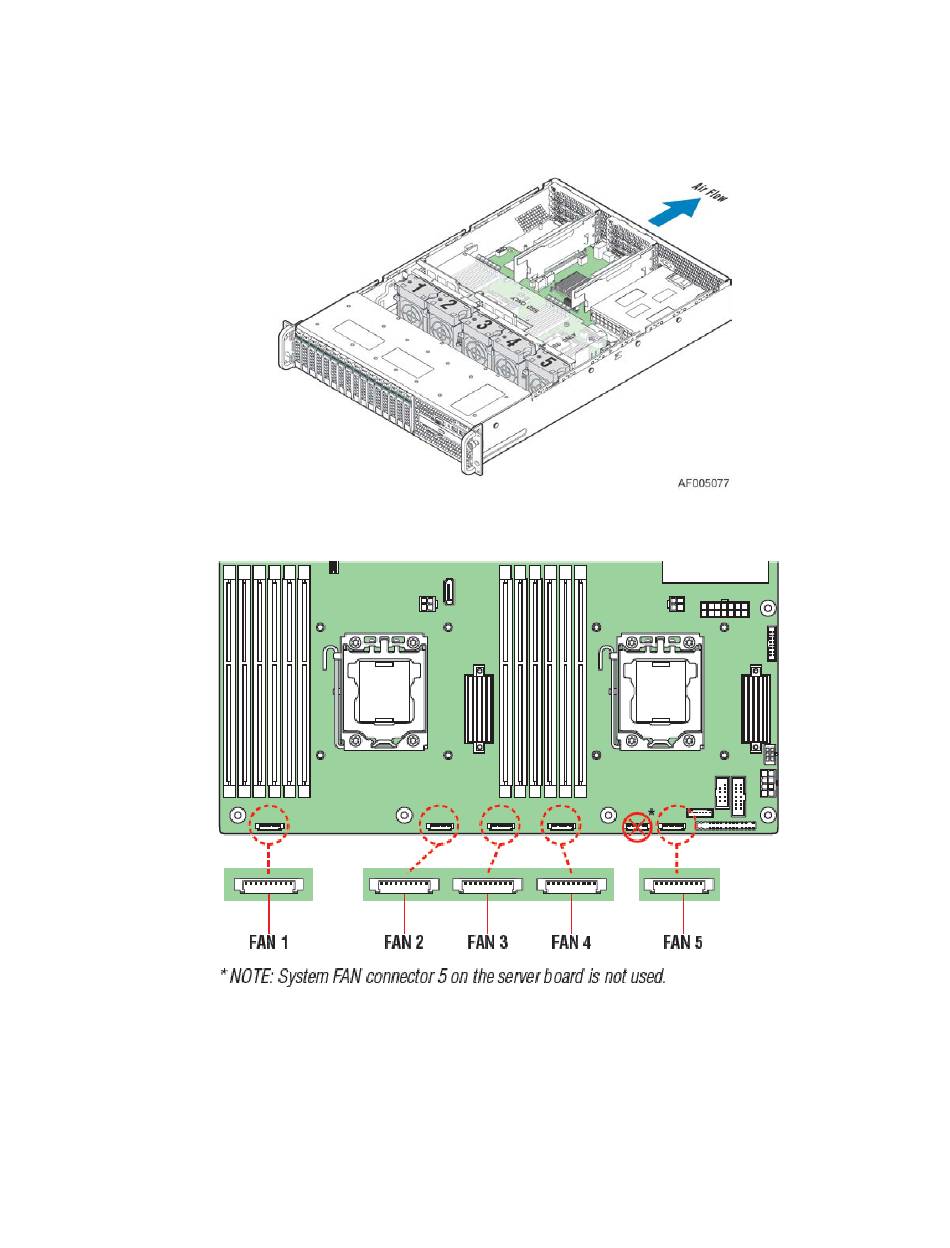

Figure 27. System Fan Order
Figure 28. Connecting the Fan Power Cables to the Mother Board
®
