KINTEX-7 FPGA Development Board AX7325B User Manual
BANK. The default is +2.5V. The 34 pairs of differential signals connected to
the FMC support LVDS data communication. The schematic of the FPGA and
FMC connectors is shown in Figure 13-1:

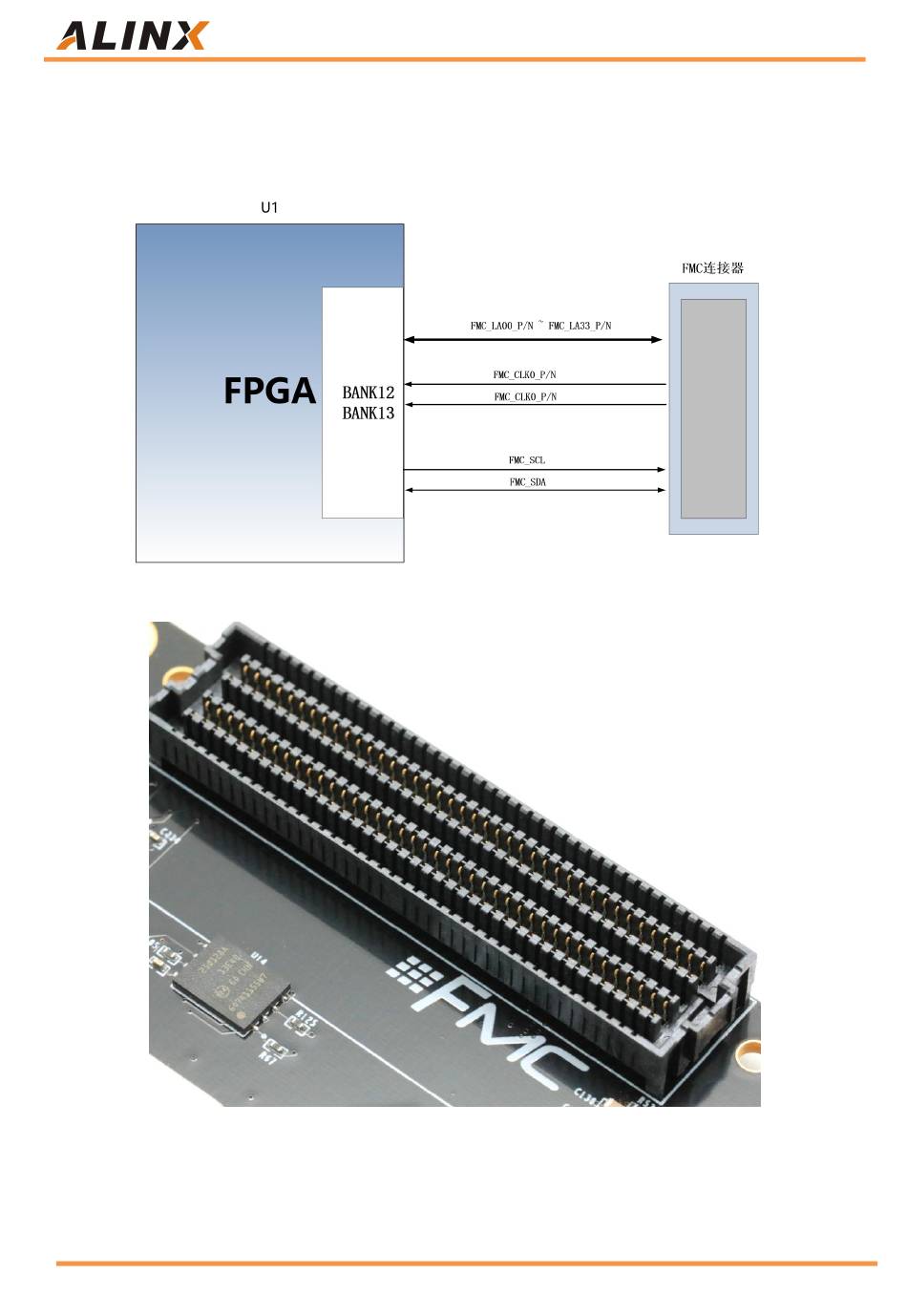

Figure 13-1：FMC Connector diagram
Figure 13-2：FMC Connector on the FPGA Board
FMC Connectors Pin Assignment
