SFP_CLK0_P
SFP_CLK0_N
QSFP_CLK_P
QSFP_CLK_N
SYS_CLK_P
SYS_CLK_N
Part7: USB to Serial Port
The AX7325B FPGA development board is equipped with a Uart to USB
interface for serial communication and debugging of the development board.
The conversion chip uses the USB-UAR chip of Silicon Labs CP2102GM. The
CP2102 serial chip and the FPGA are connected by a level-shifting chip to
adapt to different FPGA BANK voltages. The USB interface uses the MINI USB
interface, which can be connected to the USB port of the upper PC for serial
data communication on the FPGA development board with a USB cable. The

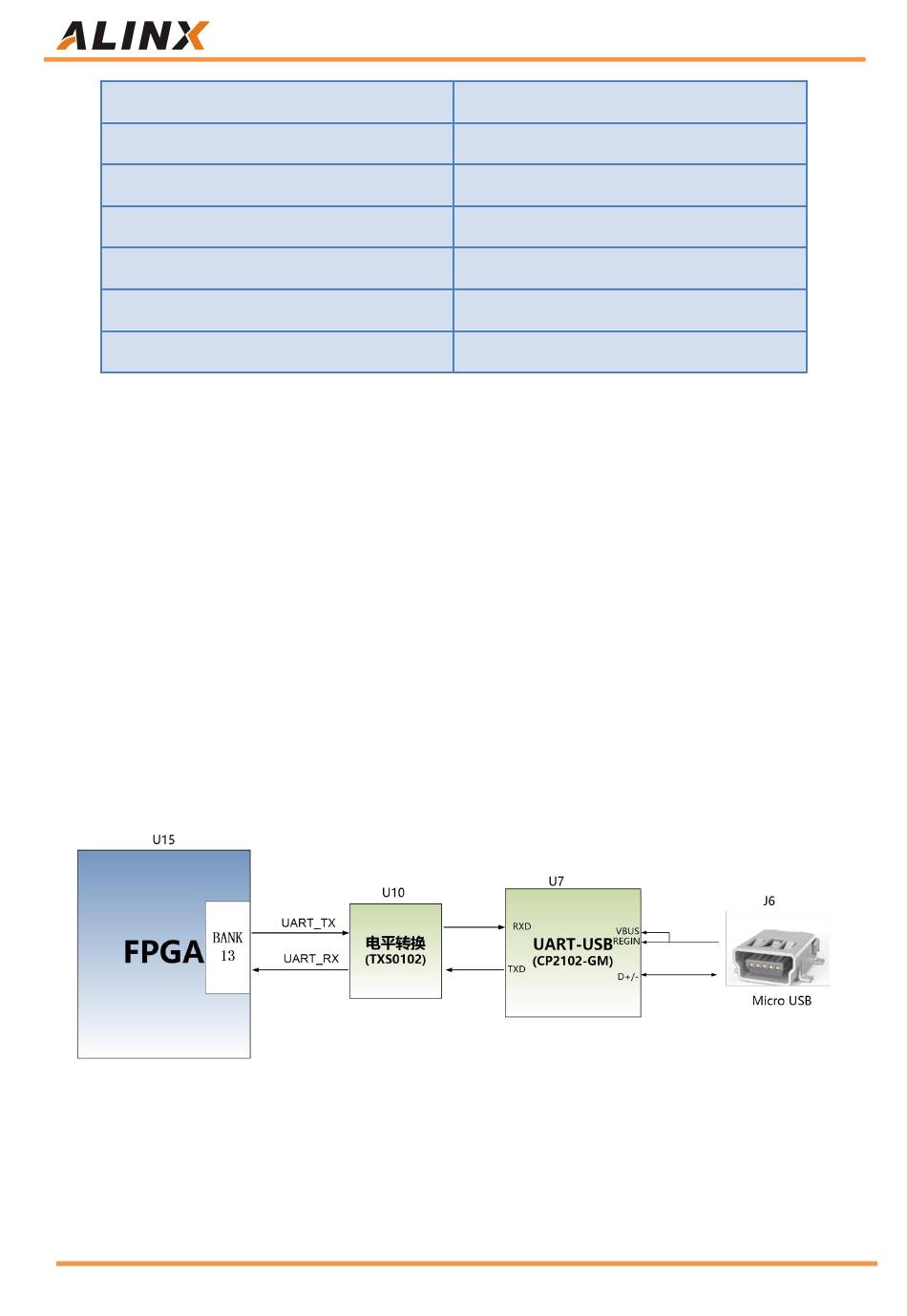

schematic diagram of the USB Uart circuit design is shown below:
www.alinx.com
KINTEX-7 FPGA Development Board AX7325B User Manual
CLK0_N
Figure 7-1: USB to serial port schematic
E20
G8
G7
C8
C7
AE10
AF10
24 / 49
