Irrigation

Multi-stage irrigation controls operate watering stages in a sequential fashion. Each stage may have a
unique irrigation duration and output assignment (output channels do not need to be sequential.) Once all
of the stages have completed, they can be repeated at speci c intervals for a speci c count, or, multiple ir-
rigation rules can be con gured to activate through out the day.
Irrigation stages can coordinate with an irrigation pump or main supply valve, and can operate a drain valve
output for ood tables between stages. Irrigation may be triggered based on time of day when the rule is
enabled, or by moisture level if a moisture sensor is connected.
Rules for how to operate the irrigation stages are created and edited on the rules tab.

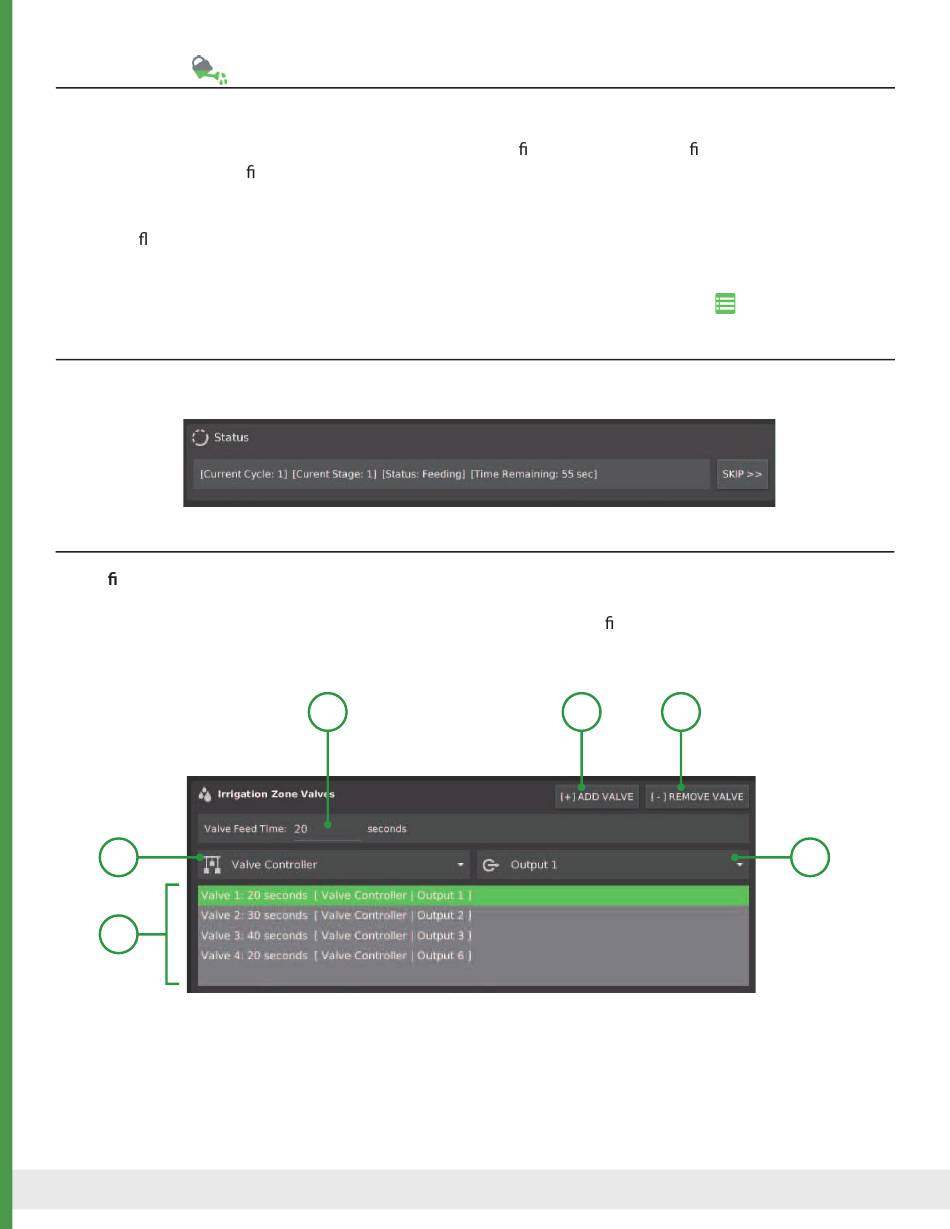

Irrigation Status
The current irrigation cycles and status can be observed in the function rule editor. Irrigation cycles can also
be manually skipped with the SKIP button.
Irrigation Zone Valves
To con gure irrigation zones:
1. Press the [ + ADD VALVE ] button (1) and a new valve will be added to the valve list.
3. Enter a time duration for the valve to irrigate in the VALVE FEED TIME eld (5).
3. Select the device (3) and output (4) that the irrigation valve is connected to.
4. To edit a stage, select a valve in the valve list.
3
6
1. Add Stage
2. Remove Stage
3. Output Device
4. Valve Output
5. Feed Time
6. Valves List
78
5
Adds a new irrigation stage to the rule.
Deletes the currently selected stage from the rule.
Relay or Irrigation valve controller device.
Output selection on the valve controller device.
Amount of time to operate the valve.`
Valve assignment and feed time list. Select a line to edit or delete it.
