Clock Timer - Agrowtek GrowControl GCX Instruction Manual

Clock Timer

The clock timer is the most basic control function in the system featuring only the basic rule properties:
• Rule Scheduling • Time Range • Equipment Output
Con gure the schedule options that are desired (if any) and set a time range. If no time range is con gured,
the timer rule will be active continuously. Rules are created and edited on the rules tab.
1

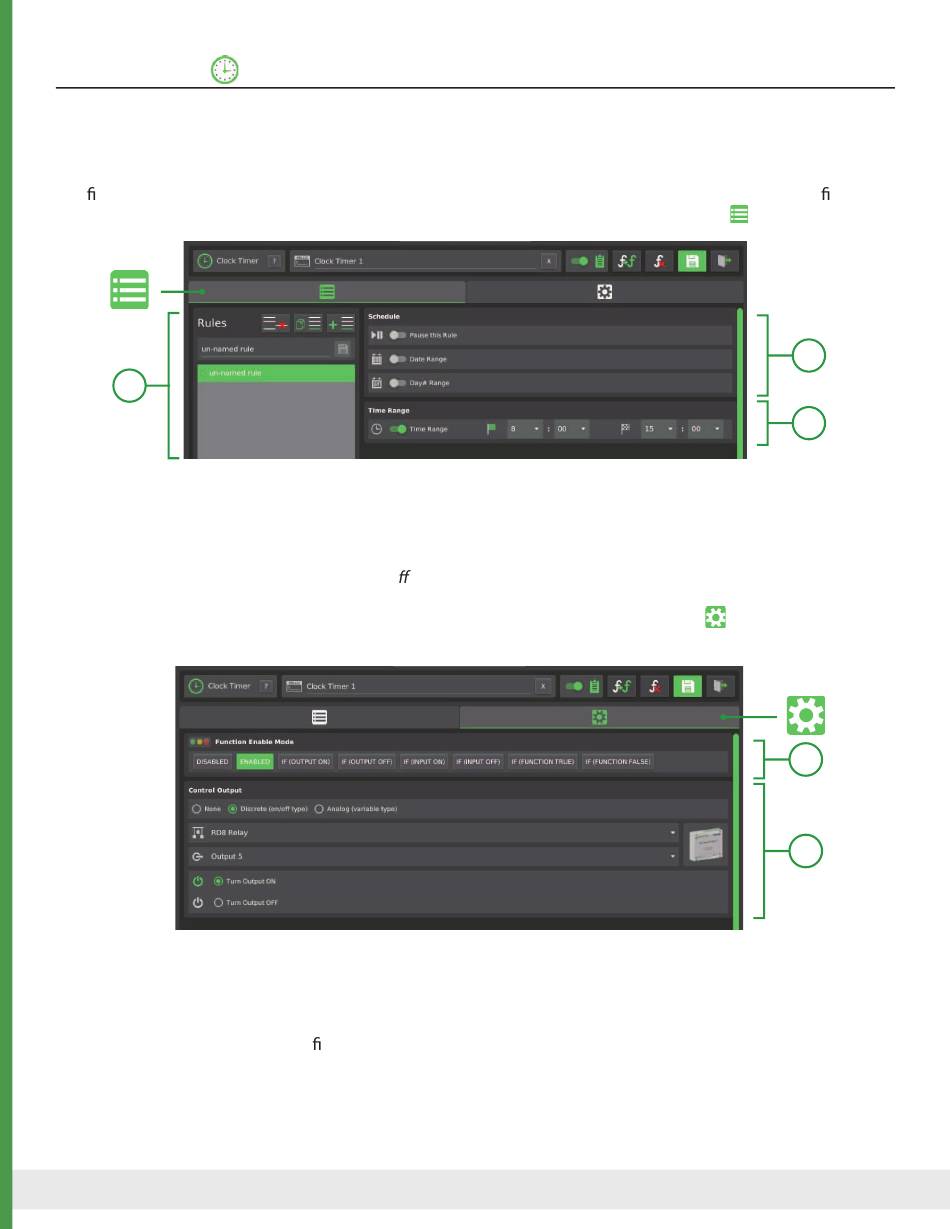

1. Rules List Select a rule to edit the settings in the rule.
2. Schedule Options for scheduling the rule based on date, day number, etc.
If no schedule options are selected then the rule will always be scheduled.
3. Time Range Start and End time for the clock timer function to be active.
No time range (switch o ) will activate the timer continuously.
To operate a device with the clock timer function, assign one on the equipment tab.
Most functions, including the clock timer, can be a 'soft-function' if no output is assigned.
1. Enable Mode Select ENABLED or set a conditional rule to apply to the function.
2. Control Output Select a mode, output device and output channel to operate with the function.
Equipment assignments apply to all rules in the function.
An enable mode may also be con gured to set additional conditions to the function's operation.
In the example above, the timer rule is "enabled" without any pre-conditions. The output named "Output 5"
on the device named "RD8i Relay" will be turned on according to the schedule setting from 8am (8:00) to
3pm (15:00).
