Input & Sensor Monitoring
Device monitor page provides the current readings of the sensor values and a graphical history for each sen-
sor channel. The time since the last reading update is shown in the page title bar.
Additional data can be displayed by touching on a sensor reading group or a graph pane to open the en-
larged graph window.
5
1
2
3
4

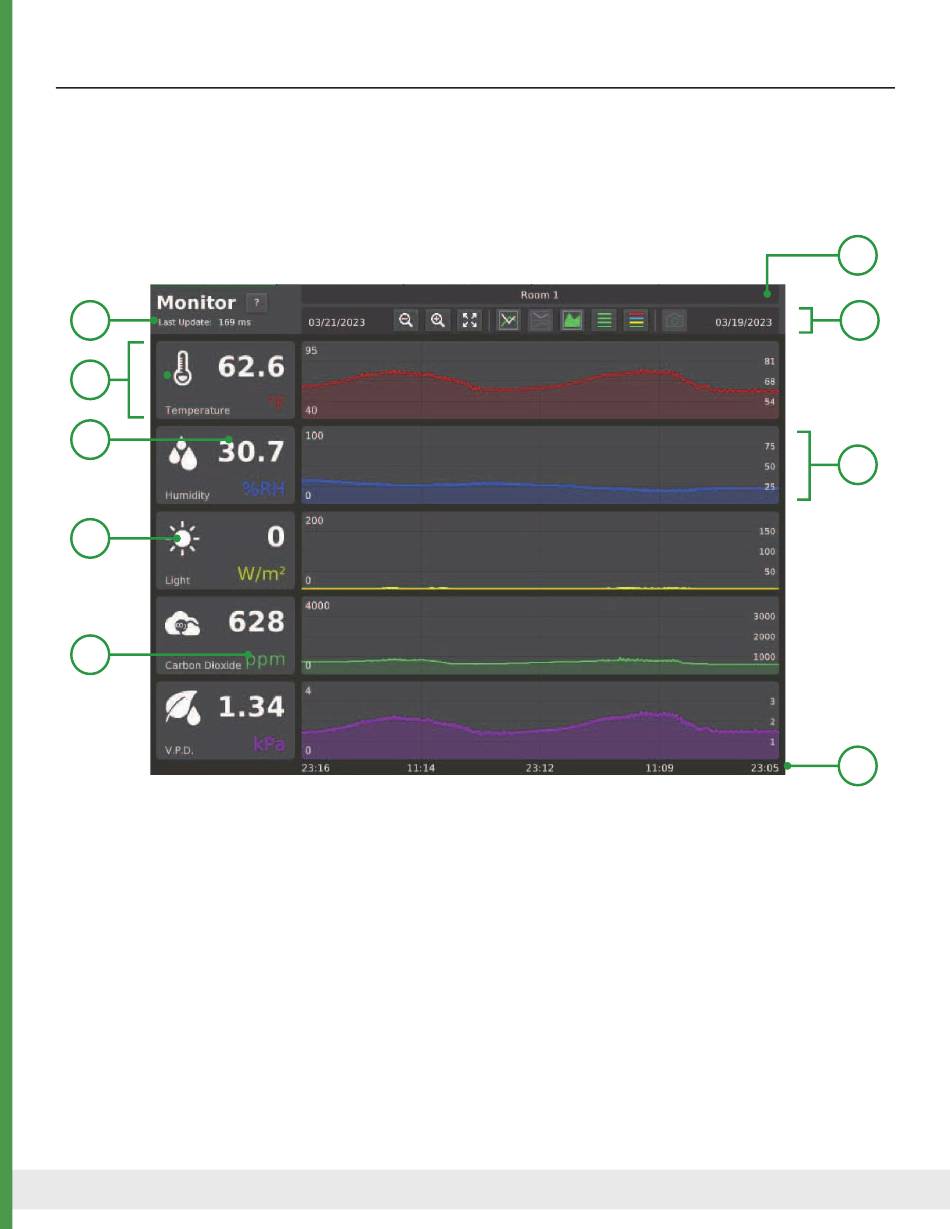

1. Reading Group Area grouping the sensor reading, units and icon.
2. Sensor Reading Actual sensor reading value.
3. Sensor Icon Icon to identify the sensor type.
4. Sensor Units Units the sensor reading is being displayed in.
5. Last Update Amount of time since sensor readings were last updated.
6. Location Control group that the device is associated with (see device info tab.)
7. Graph Options X-Axis zoom in/out and graph display options.
8. Graph Pane Graph history pane showing 1440 points; touch a pane to enlarge the graph.
9. X-Axis Time axis of graph panes (all share the same time axis.) Enlarge graph for dates.
