Enlarged Graph Window - Agrowtek GrowControl GCX Instruction Manual

Enlarged Graph Window

Historical graph data can be analyzed on-screen to review:
• Minimum and Maximum (High/Low) sensor readings
• Point data with 'cursor' selection
• Graph history
To open the graph window, touch on a graph pane in the monitor page of a device.
A maximum of 1440 points are shown on the graph pane.
Graph data is stored on the system in .csv format for export by USB or FTP; see the "Files" section of this
manual.
6
5

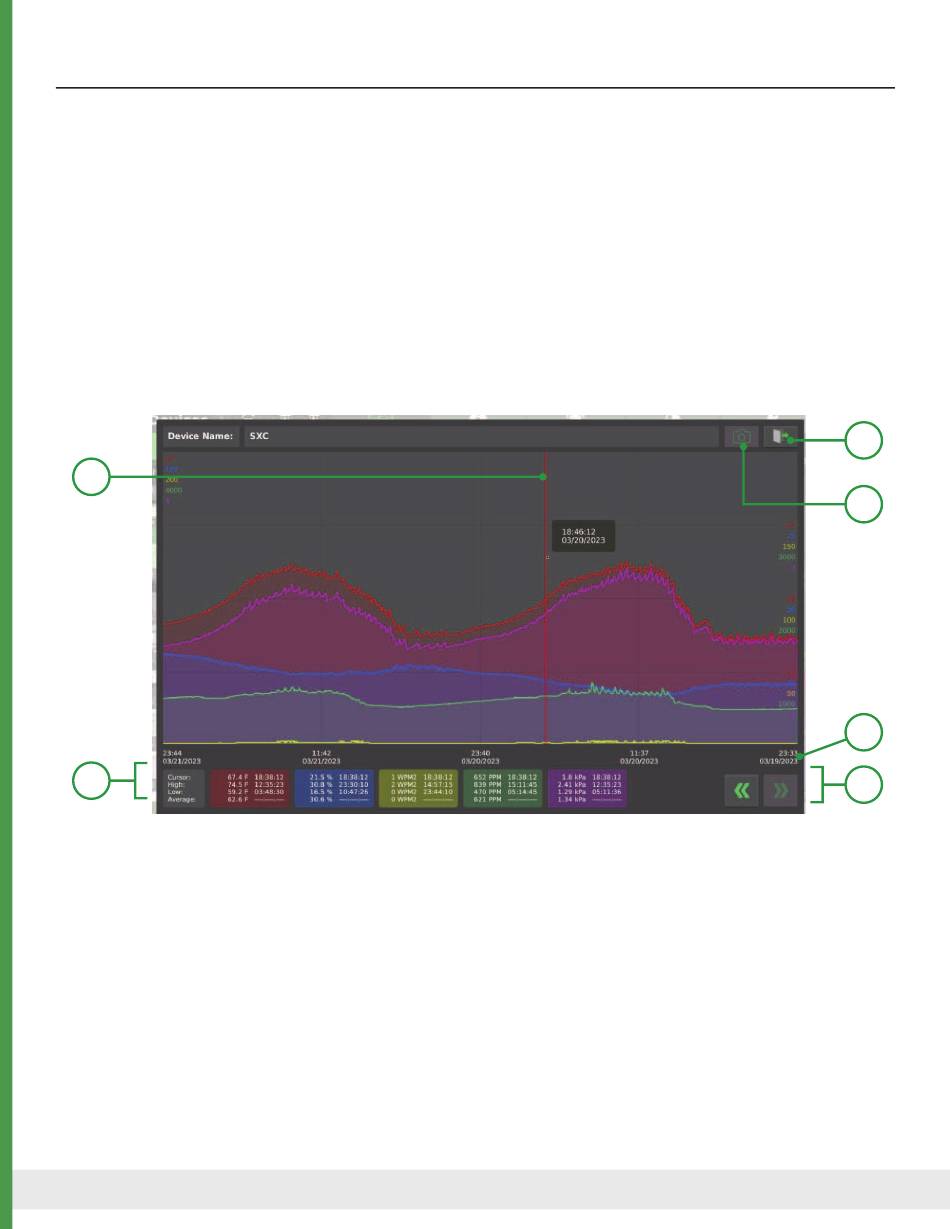

1. Exit Button Press to close the graph window.
2. Screen Capture Sends a screen capture of the graph window to the email/sms recipients.
3. Date Beginning and end dates of the data on the chart.
4. Fwd/Back Page Forward/Backward buttons to move through histortical data.
5. Cursor Data Data at the point shown by the cursor line when the chart area is touched.
6. Cursor Touch on the graph display to show cursor data.
20
