Agrowtek GrowControl GCX Instruction Manual page 83

Valve & Sensor Con guration

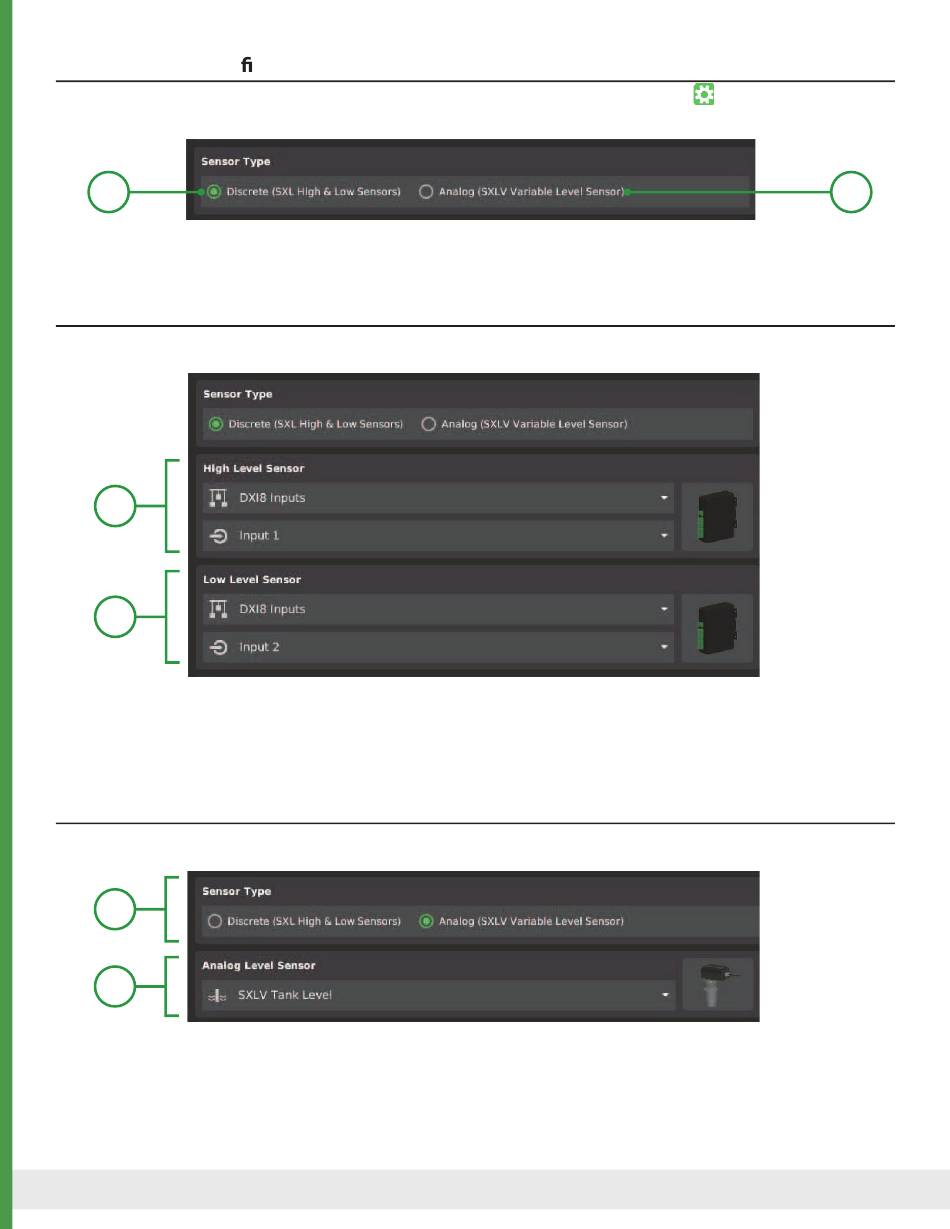

Assign sensors and valves which will manage the tank level on the equipment tab.
First, select which type of sensor will be used to control the level, discrete sensors or an analog sensor.
1
1. Discrete Use two sensors (high and low) connected to a discrete input module.
2. Analog Use an analog (SXLV) liquid level sensor with depth set points.
Discrete Sensors
When using discrete sensors, select input channels where the high and low level sensors are connected.
1
2
1. High Sensor
2. Low Sensor
Analog Sensor
When using an analog sensor, simply select the sensor to use for measuring tank depth.
1
2
1. Analog Sensor
83
Select the input device and channel of the high level sensor.
Select the input device and channel of the low level sensor.
Select the SXLV analog level sensor to use for depth level control.
