Controls
Control "functions" are used to create control logic in order to operate equipment in a facility. Functions are
arranged in work spaces known as "control groups. " Control groups are often modeled after an environment
zone, but they may also represent sub-zones or other logical groupings of controls.
Create and name control groups according to how you would like to group functions and show report dis-
plays. Note the system executes controls in the order of groups and functions within the groups. Groups and
functions can be re-arranged to create the logical order required for proper operation.
See the "Programming" section for more information.
TIP: Press and hold the control icon's name (4) to drag the function to a di erent order in the workspace.
4
12
11

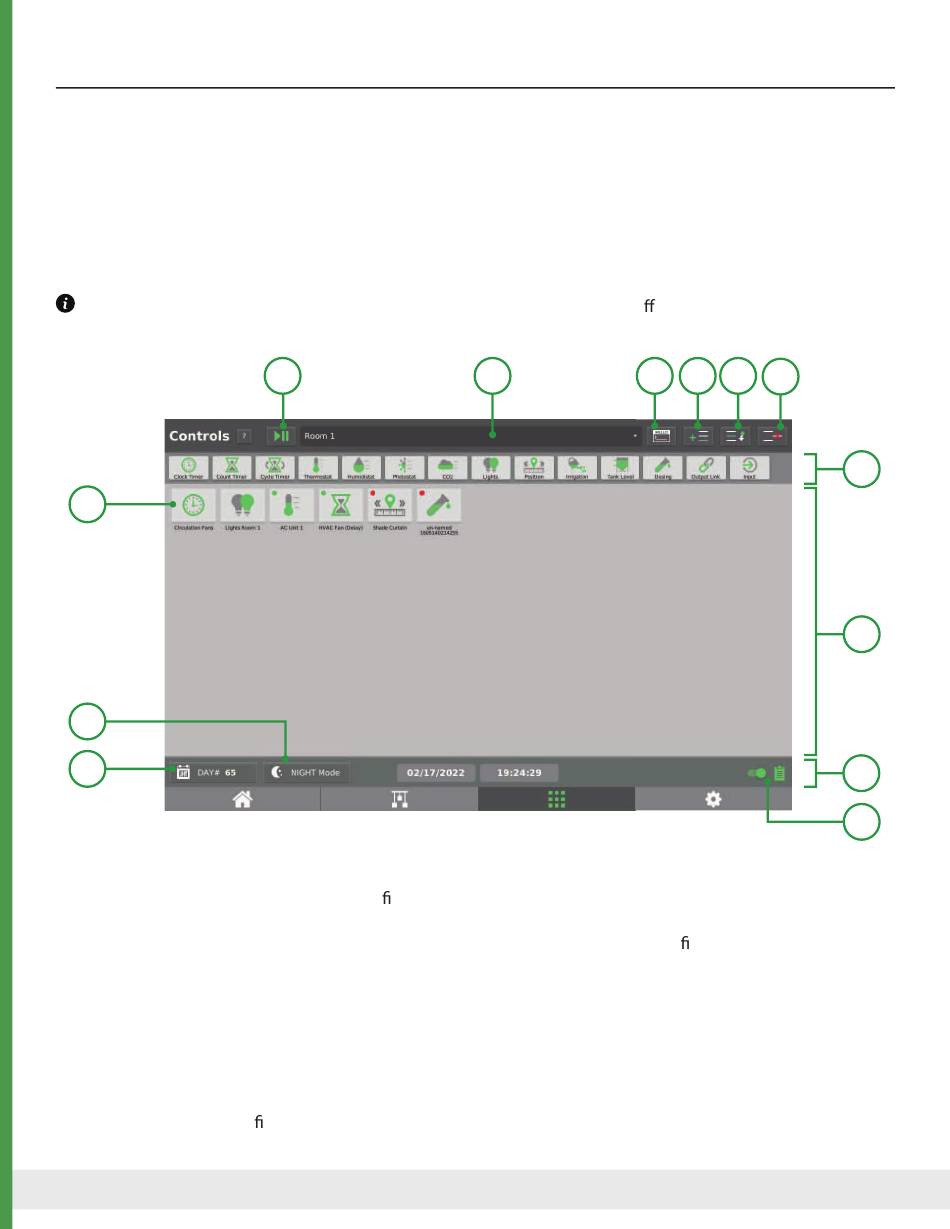

1. Workspace
Controls work space; shows control functions in the selected group.
2. Function Toolbar
Toobar of available functions; press a button to add a new function to the workspace.
3. Workspace Toolbar Contains items speci c to the work space including the day counter.
4. Function Icon
Icon depicting the function type, status and name.
Press the function icon to open the function editor and con gure the function.
5. Run/Pause
Set the control group to run mode or pause (suspend).
6. Control Group
Select the control group to view and edit in the workspace.
7. Rename Group
Opens a dialog to rename the currently selected control group.
8. Add Group
Opens a dialog to add a new control group to the system.
9. Move Group
Opens a dialog to move the current group to a new position in the group list.
10. Remove Group
Opens a dialog to delete the current group and all of it's controls from the system.
11. Day Count
Displays the workspace count and opens a dialog to adjust the day counter.
12. Day/Night Mode Con gure day & night mode for the workspace.
13. Enable Report
Show or hide this workspace from the home page report view.
