Count Timer

The count timer has several modes that operate based on when the rule's scheduling and/or enable condi-
tions becomes true or false. Count timers are typically used to delay an action or operate a device for a set
period based on the action of another device or function.
Example uses:
• Sequencing light banks or other outputs with an on-delay.
• Set an off-delay on a HAVC fan with the AC as the enable input.
1. Delay-On Activate the rule after the preset delay has elapsed.
2. Delay-O Immediate activate then keep the rule activated for the preset delay.
3. One-Shot On Activate the rule for a preset time when the rule is enabled.
4. One-Shot O Activate the rule for a preset time when the rule is disabled.

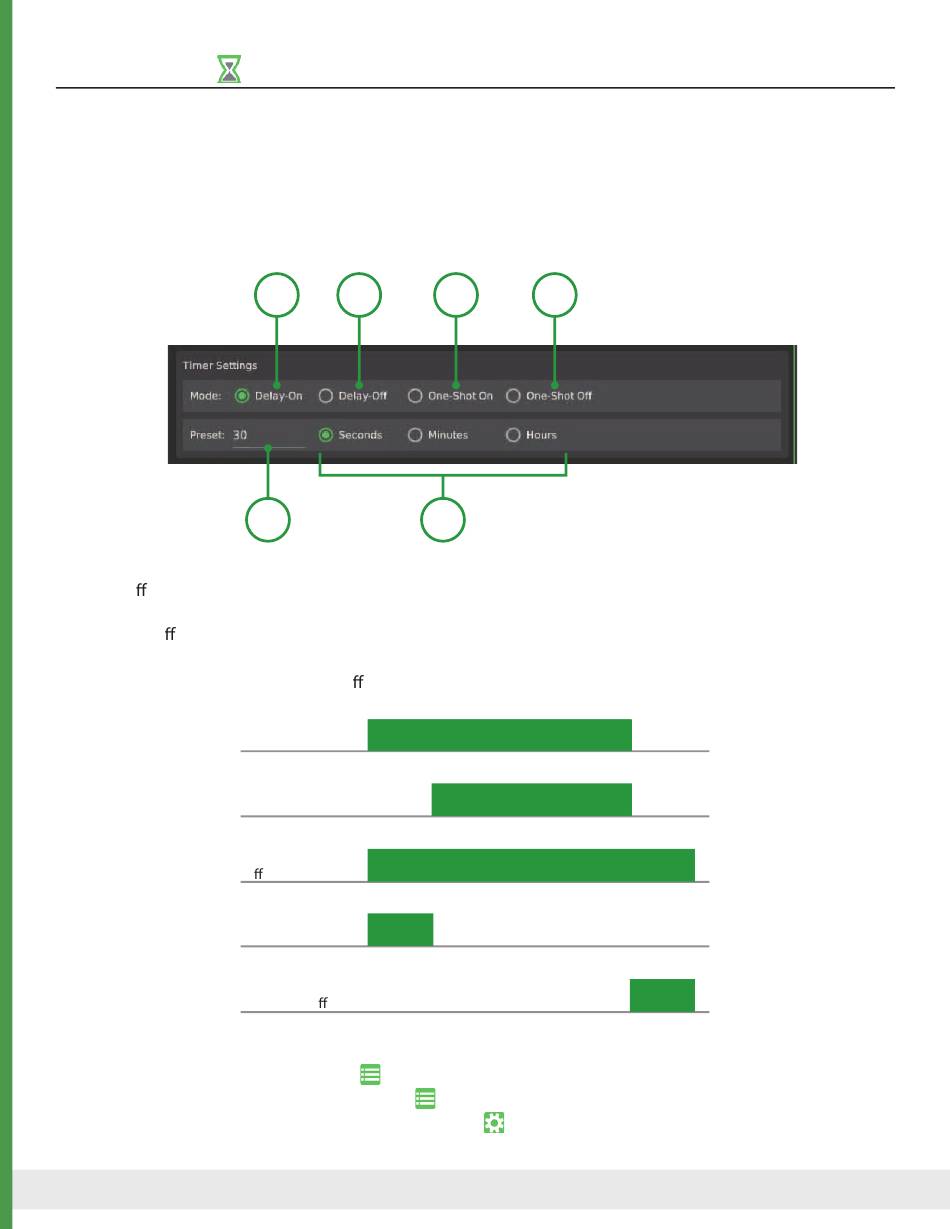

The diagram below depicts how the di erent timer modes will activate depeding on the status of the enable
input or change in schedule status:
To setup a count timer:
• Set the rule schedule on the rules tab.
• Configure the timer settings on the rules tab.
• Configure an output to control on the equipment tab.
63
1 2
5
Enable Input
On-Delay
O -Delay
One-Shot On
One-Shot O
