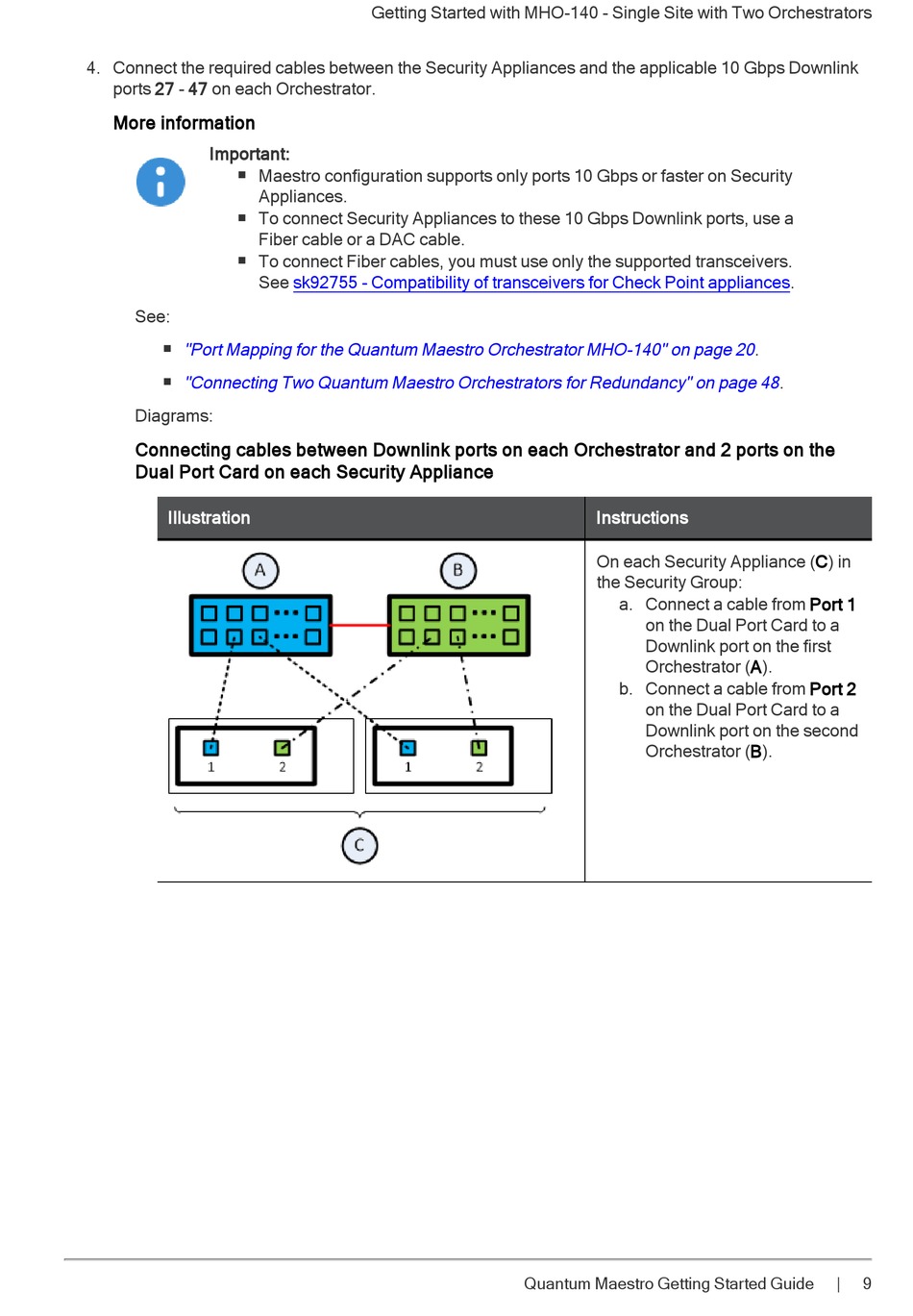

Quantum CHECK POINT MAESTRO ORCHESTRATOR 1U Getting Started Manual page 9

4. Connect the required cables between the Security Appliances and the applicable 10 Gbps Downlink
ports 27 - 47 on each Orchestrator.
More information
Important:
n Maestro configuration supports only ports 10 Gbps or faster on Security
Appliances.
To connect Security Appliances to these 10 Gbps Downlink ports, use a
n
Fiber cable or a DAC cable.
To connect Fiber cables, you must use only the supported transceivers.
n
See
See:
"Port Mapping for the Quantum Maestro Orchestrator MHO-140" on page 20
n
"Connecting Two Quantum Maestro Orchestrators for Redundancy" on page 48
n
Diagrams:
Connecting cables between Downlink ports on each Orchestrator and 2 ports on the
Dual Port Card on each Security Appliance
Illustration
Getting Started with MHO-140 - Single Site with Two Orchestrators
sk92755 - Compatibility of transceivers for Check Point
Instructions
On each Security Appliance (C) in
the Security Group:
a. Connect a cable from
on the Dual Port Card to a
Downlink port on the first
Orchestrator (A).
b. Connect a cable from
on the Dual Port Card to a
Downlink port on the second
Orchestrator (B).
Quantum Maestro Getting Started Guide | 9
appliances.
.
.
Port 1
Port 2
