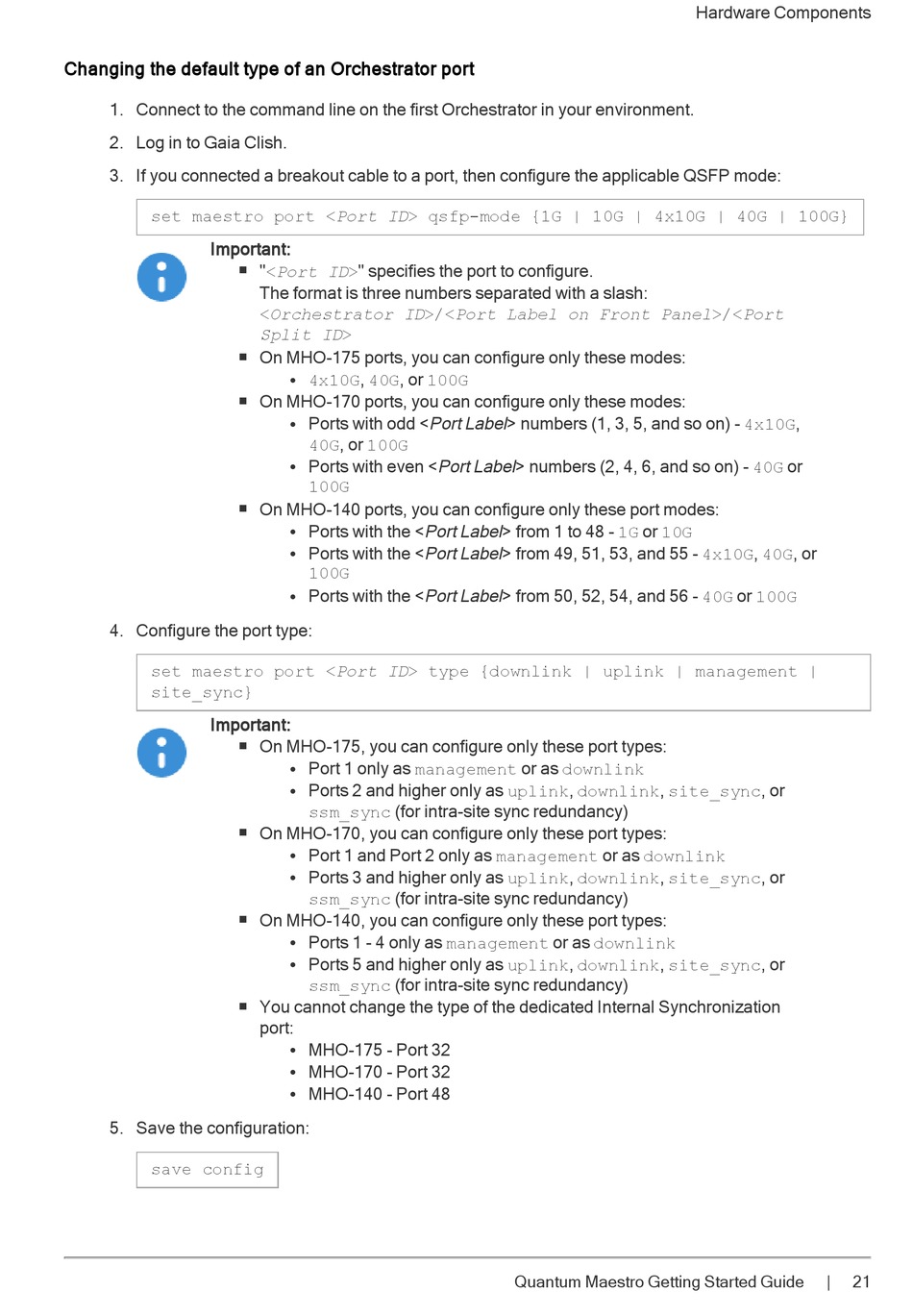

Quantum CHECK POINT MAESTRO ORCHESTRATOR 1U Getting Started Manual page 21

Changing the default type of an Orchestrator port
1. Connect to the command line on the first Orchestrator in your environment.
2. Log in to Gaia Clish.
3. If you connected a breakout cable to a port, then configure the applicable QSFP mode:
set maestro port <Port ID> qsfp-mode {1G | 10G | 4x10G | 40G | 100G}
Important:
4. Configure the port type:
set maestro port <Port ID> type {downlink | uplink | management |
site_sync}
Important:
5. Save the configuration:
save config
"<Port ID>" specifies the port to configure.
n
The format is three numbers separated with a slash:
<Orchestrator ID>/<Port Label on Front Panel>/<Port
Split ID>
On MHO-175 ports, you can configure only these modes:
n
4x10G, 40G, or 100G
l
On MHO-170 ports, you can configure only these modes:
n
Ports with odd < Port Label > numbers (1, 3, 5, and so on) - 4x10G,
l
40G, or 100G
Ports with even < Port Label > numbers (2, 4, 6, and so on) - 40G or
l
100G
On MHO-140 ports, you can configure only these port modes:
n
Ports with the < Port Label > from 1 to 48 - 1G or 10G
l
Ports with the < Port Label > from 49, 51, 53, and 55 - 4x10G, 40G, or
l
100G
Ports with the < Port Label > from 50, 52, 54, and 56 - 40G or 100G
l
On MHO-175, you can configure only these port types:
n
Port 1 only as management or as downlink
l
Ports 2 and higher only as uplink, downlink, site_sync, or
l
ssm_sync (for intra-site sync redundancy)
n On MHO-170, you can configure only these port types:
Port 1 and Port 2 only as management or as downlink
l
Ports 3 and higher only as uplink, downlink, site_sync, or
l
ssm_sync (for intra-site sync redundancy)
On MHO-140, you can configure only these port types:
n
Ports 1 - 4 only as management or as downlink
l
Ports 5 and higher only as uplink, downlink, site_sync, or
l
ssm_sync (for intra-site sync redundancy)
You cannot change the type of the dedicated Internal Synchronization
n
port:
MHO-175 - Port 32
l
MHO-170 - Port 32
l
MHO-140 - Port 48
l
