- Page 1 31 May 2022 16000, 26000, AND 28000 APPLIANCES TELESCOPIC RAILS...
- Page 2 Check Point Copyright Notice © 2020-2022 Check Point Software Technologies Ltd. All rights reserved. This product and related documentation are protected by copyright and distributed under licensing restricting their use, copying, distribution, and decompilation. No part of this product or related documentation may be reproduced in any form or by any means without prior written authorization of Check Point.
- Page 3 16000, 26000, and 28000 Appliances Telescopic Rails Important Information Latest Software We recommend that you install the most recent software release to stay up-to-date with the latest functional improvements, stability fixes, security enhancements and protection against new and evolving attacks. Certifications For third party independent certification of Check Point products, see the Check Point...
-
Page 4: Table Of Contents
Table of Contents Table of Contents 16000, 26000, and 28000 Security Appliances Installing the Telescopic Rails General Requirements for Racks Telescopic Rails Hardware Installation Overview Attaching the Inner Appliance Rails Attaching the Ear Mounts Attaching the Outer Rack Rails Installing the Appliance in the Rack Removing the Appliance Appliance Air Vents 16000, 26000, and 28000 Appliances Telescopic Rails | 4... -
Page 5: 16000, 26000, And 28000 Security Appliances Installing The Telescopic Rails
16000, 26000, and 28000 Security Appliances Installing the Telescopic Rails 16000, 26000, and 28000 Security Appliances Installing the Telescopic Rails You can install these security appliances in a rack with the telescopic rails hardware: Security Appliance In This Document 16600 Hyperscale Security Appliances (1U) 16600HS 28600 Hyperscale Security Appliances (1U) 28600HS... - Page 6 16000, 26000, and 28000 Security Appliances Installing the Telescopic Rails These are the physical specifications of the Check Point appliances. Security Appliance Width Depth Height 16600HS 442 mm 610 mm 44 mm (1U) 28600HS 442 mm 610 mm 44 mm (1U) 16000 442 mm 610 mm...
-
Page 7: Telescopic Rails Hardware
16000, 26000, and 28000 Security Appliances Installing the Telescopic Rails Telescopic Rails Hardware Important - We recommend that at least two people install the appliance in a rack to prevent injury, or damage to the appliance. Rack Mounting Tools We recommend that you use a Phillips PH2 screwdriver with a magnetic head to hold and retrieve screws. Item Hardware Description Outer rack rail section of the... - Page 8 16000, 26000, and 28000 Security Appliances Installing the Telescopic Rails Item Hardware Description Appliance rail screws Attaches the appliance rails to the appliance Ear mount bracket screws Attaches the ear mounts to the appliance 4 ear mount screws for 16600HS and 28600HS 6 ear mount screws for 16000, 16200, 26000, and 28000...
-
Page 9: Installation Overview

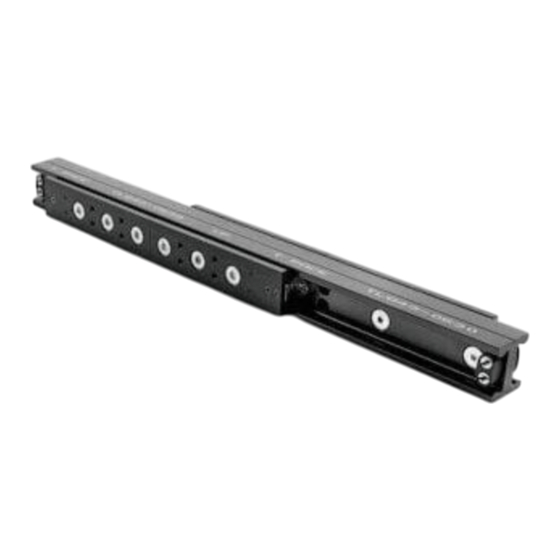

16000, 26000, and 28000 Security Appliances Installing the Telescopic Rails Installation Overview Telescopic rails installation consists of these procedures: Attaching the inner rails to the appliance Attaching the ear mounts to the appliance Attaching the outer rack rails to the rack Installing the appliance in the rack Attaching the Inner Appliance Rails The outer rack rail section and the inner appliance rail section come as one unit when you open the box. - Page 10 16000, 26000, and 28000 Security Appliances Installing the Telescopic Rails To install the inner appliance rails to the appliance: 1. Place the appliance rail on the side of the appliance and make sure: The release latch is facing away from the appliance The arrow on the release latch points to the front of the appliance The appliance rail is longer than the appliance 2.
-
Page 11: Attaching The Ear Mounts
16000, 26000, and 28000 Security Appliances Installing the Telescopic Rails Attaching the Ear Mounts Attach the ear mounts to the left and right side of the front of the appliance to allow: Easy pulling in and pulling out of the appliance while it is in the rack using the extraction handles Locking the appliance into the rack using the rack mounting screws 16000, 16200, 26000, and 28000 16600HS and 28600HS... - Page 12 16000, 26000, and 28000 Security Appliances Installing the Telescopic Rails 16000 and 16200: Use three screws 26000 and 28000: Use three screws 3. Do steps 1 - 2 again for the other side of the appliance. 16000, 26000, and 28000 Appliances Telescopic Rails | 12...
-
Page 13: Attaching The Outer Rack Rails
16000, 26000, and 28000 Security Appliances Installing the Telescopic Rails Attaching the Outer Rack Rails Attach the outer rack rails to the rack. Make sure that you have the two rack rails ready. Item Description Rack rail screws (attached to the end of the rack rail) Securing clip Screw hole for ear mount screw Rack rail... -
Page 14: Installing The Appliance In The Rack
16000, 26000, and 28000 Security Appliances Installing the Telescopic Rails Installing the Appliance in the Rack Install the appliance in the telescopic rails in the rack. Important - We recommend that at least two people install the appliance in a rack to prevent injury, or damage to the appliance. - Page 15 16000, 26000, and 28000 Security Appliances Installing the Telescopic Rails 16000, 16200, 26000, and 28000 Item Description Extraction handle Rack rail screws Rack post mounting hole for rack mount screw 16000, 26000, and 28000 Appliances Telescopic Rails | 15...
-
Page 16: Removing The Appliance
16000, 26000, and 28000 Security Appliances Installing the Telescopic Rails Removing the Appliance Important - Use at least two people to remove the appliance from the rack to prevent injury or damage. Important - Do not attempt to lift, drag, or otherwise move the appliance using the handles on the power supply units. -
Page 17: Appliance Air Vents
16000, 26000, and 28000 Security Appliances Installing the Telescopic Rails Appliance Air Vents Make sure that the appliance air vents have sufficient airflow from front to rear when the appliance is mounted in a rack. Important - If the appliance vents are blocked, the appliance can become too hot and it can be damaged.
