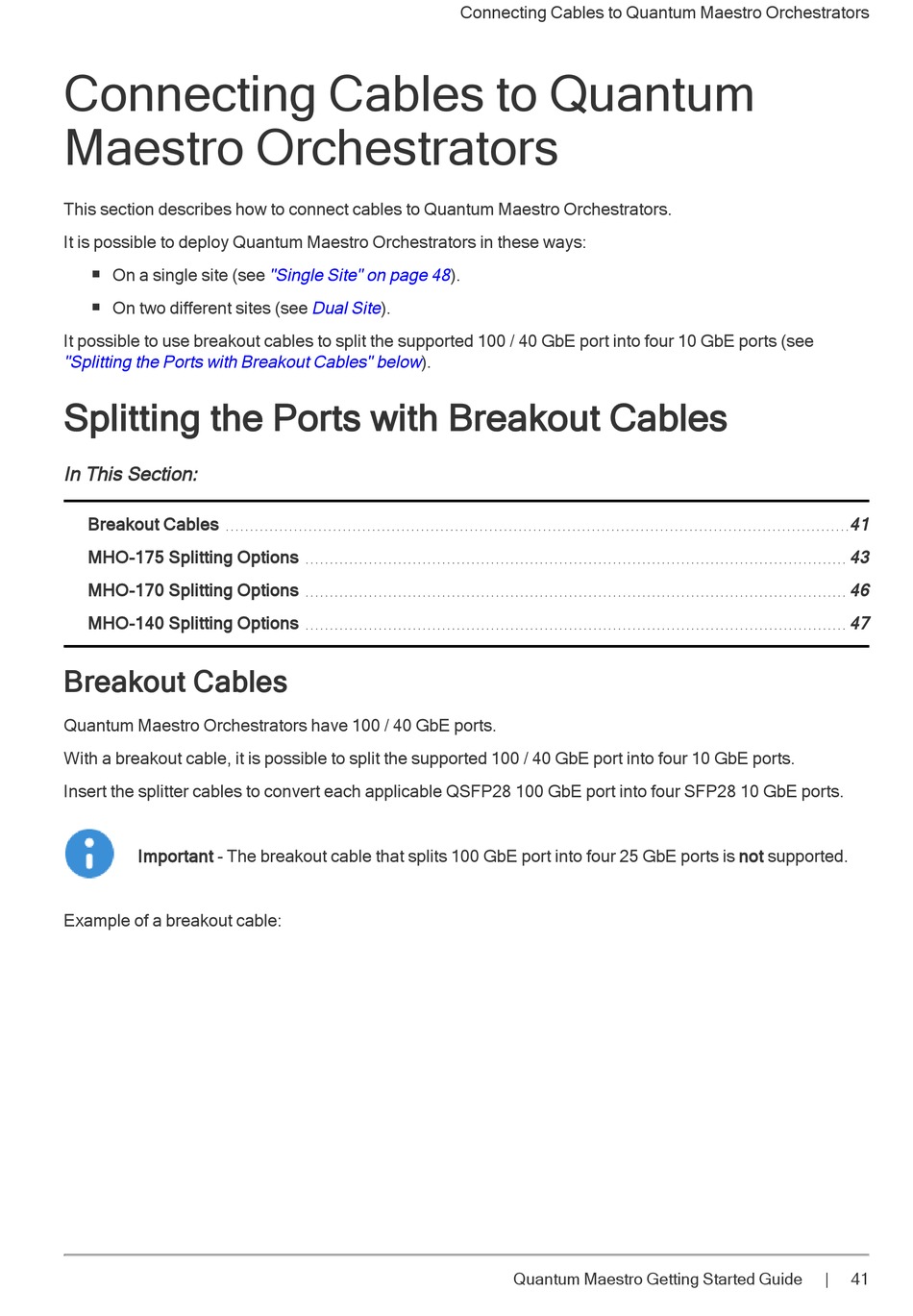

Connecting Cables to Quantum
Maestro Orchestrators
This section describes how to connect cables to Quantum Maestro Orchestrators.
It is possible to deploy Quantum Maestro Orchestrators in these ways:
On a single site (see
n
On two different sites (see
n
It possible to use breakout cables to split the supported 100 / 40 GbE port into four 10 GbE ports (see
"Splitting the Ports with Breakout Cables" below

Splitting the Ports with Breakout Cables

In This Section:

Breakout Cables

MHO-175 Splitting Options
MHO-170 Splitting Options
MHO-140 Splitting Options
Breakout Cables
Quantum Maestro Orchestrators have 100 / 40 GbE ports.
With a breakout cable, it is possible to split the supported 100 / 40 GbE port into four 10 GbE ports.
Insert the splitter cables to convert each applicable QSFP28 100 GbE port into four SFP28 10 GbE ports.
Important - The breakout cable that splits 100 GbE port into four 25 GbE ports is not supported.
Example of a breakout cable:
"Single Site" on page 48
Dual Site ).
).
