Hardware Components

This section provides a description of hardware components of Quantum Maestro Orchestrators.

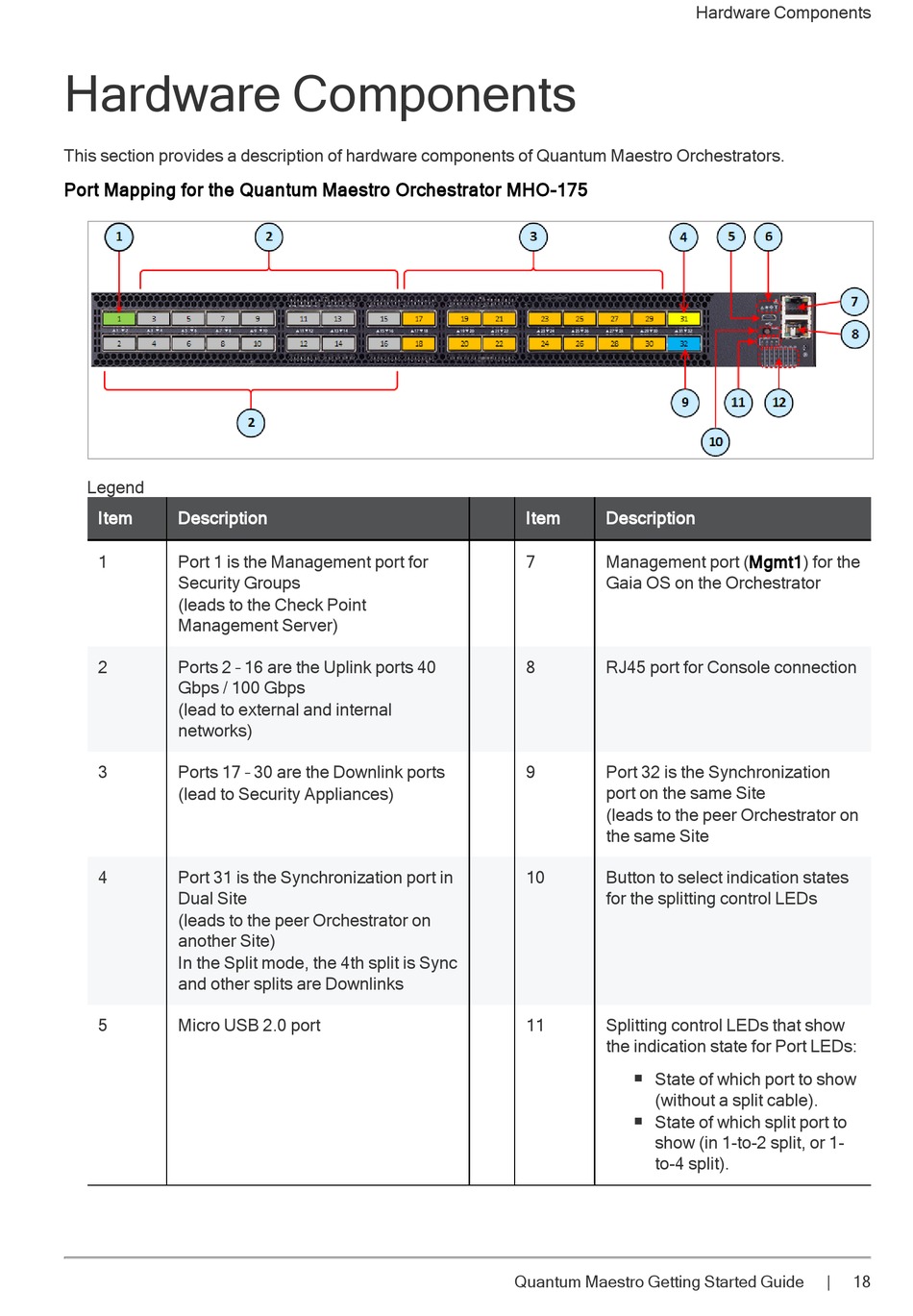

Port Mapping for the Quantum Maestro Orchestrator MHO-175
Legend
Item Description
1 Port 1 is the Management port for
Security Groups
(leads to the Check Point
Management Server)
2 Ports 2 – 16 are the Uplink ports 40
Gbps / 100 Gbps
(lead to external and internal
networks)
3 Ports 17 – 30 are the Downlink ports
(lead to Security Appliances)
4 Port 31 is the Synchronization port in
Dual Site
(leads to the peer Orchestrator on
another Site)
In the Split mode, the 4th split is Sync
and other splits are Downlinks
5 Micro USB 2.0 port
Item Description
7 Management port (Mgmt1) for the
Gaia OS on the Orchestrator
8 RJ45 port for Console connection
9 Port 32 is the Synchronization
port on the same Site
(leads to the peer Orchestrator on
the same Site
10 Button to select indication states
for the splitting control LEDs
11 Splitting control LEDs that show
the indication state for Port LEDs:
n State of which port to show
(without a split cable).
State of which split port to
n
show (in 1-to-2 split, or 1-
to-4 split).
