One Technology Way • P.O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com
Evaluating the
FEATURES
Full featured evaluation board (EVAL-AD5344DBZ)
in conjunction with nanoDAC motherboard
(EVAL-MBnanoDAC-SDZ)
On-board references
Various link options
PC control in conjunction with Analog Devices, Inc., system
demonstration platform (SDP)
EVALUATION KIT CONTENTS
EVAL-AD5344DBZ
evaluation board
EVAL-MBnanoDAC-SDZ
motherboard
USB cable
SOFTWARE REQUIRED
EVAL-AD5344DBZ
evaluation software
HARDWARE REQUIRED
EVAL-SDP-CB1Z
controller board
must be purchased separately

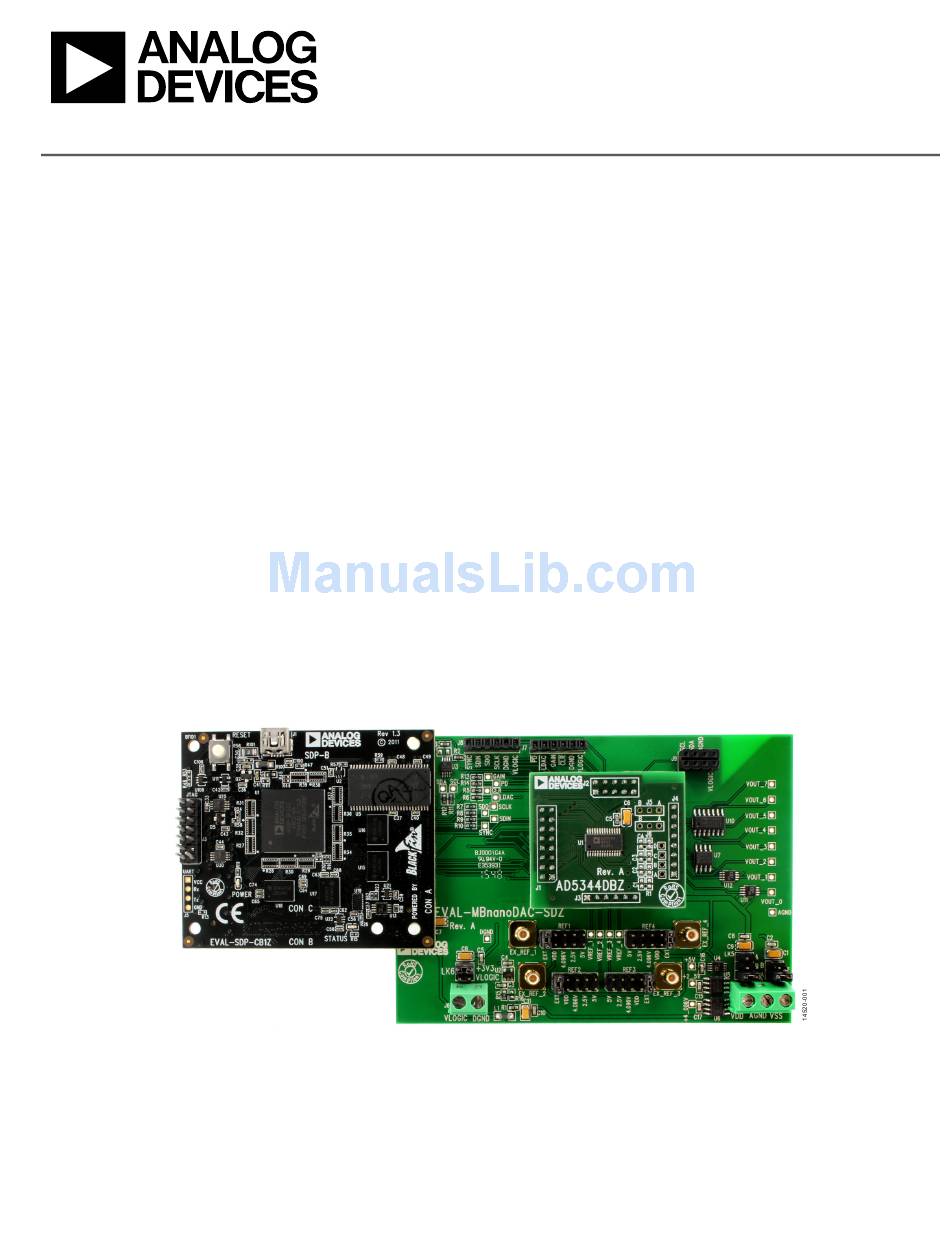

PHOTOGRAPH OF THE EVAL-AD5344DBZ, EVAL-MBnanoDAC-SDZ, AND
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
AD5344
12-Bit, Quad-Channel Voltage Output Digital-to-Analog
Converter (DAC)
(SDP-B
controller board),
EVAL-AD5344DBZ User Guide
GENERAL DESCRIPTION
This user guide details the operation of the
for the
AD5344
AD5344
operates from a single 2.5 V to 5.5 V supply.
The
EVAL-AD5344DBZ
circuits and reduce design time. The
interfaces with the USB port of a PC via the
board. Software can be downloaded via the
product page that allows users to program the AD5344.
The
EVAL-AD5344DBZ
controller board, which is available for order on the Analog
Devices website.
Full specifications for the
sheet available from Analog Devices and should be consulted in
conjunction with this user guide when using the evaluation board.
Figure 1.
Rev. A | Page 1 of 12
EVAL-AD5344DBZ
quad-channel, voltage output DAC. The
is designed to quickly prototype
EVAL-AD5344DBZ
SDP-B
EVAL-AD5344DBZ
evaluation board requires the
AD5344
are listed in the
EVAL-SDP-CB1Z
UG-985
AD5344
controller
SDP-B
AD5344
data
Advertisement
Table of Contents
Related Manuals for Analog Devices EVAL-AD5344DBZ
Summary of Contents for Analog Devices EVAL-AD5344DBZ
-
Page 1: Features
Full specifications for the AD5344 are listed in the AD5344 data SOFTWARE REQUIRED sheet available from Analog Devices and should be consulted in EVAL-AD5344DBZ evaluation software conjunction with this user guide when using the evaluation board. HARDWARE REQUIRED EVAL-SDP-CB1Z controller board... -
Page 2: Table Of Contents
Daughter Board Link Options .............3 Evaluation Kit Contents ..............1 Evaluation Board Software Quick Start Procedures .....4 Software Required ................1 Installing the EVAL-AD5344DBZ Evaluation Software .....4 Hardware Required ................1 Running the Software ..............4 General Description ................. 1 Software Operation ...............5 Photograph of the EVAL-AD5344DBZ, EVAL-MBnanoDAC- Evaluation Board Schematics and Artwork ........6... -
Page 3: Evaluation Board Hardware
EVAL-AD5344DBZ User Guide UG-985 EVALUATION BOARD HARDWARE POWER SUPPLIES LINK OPTIONS The nanoDAC® EVAL-MBnanoDAC-SDZ motherboard A number of link options are incorporated in the EVAL- supports single and dual power supplies. MBnanoDAC-SDZ and must be set for the required operating conditions before using the evaluation board. -
Page 4: Evaluation Board Software Quick Start Procedures
SDP-B controller board to the PC. Power up the evaluation board as described in the Power Supplies section. Click Start > All Programs > Analog Devices > AD5344 Evaluation Software to locate the evaluation board. If the SDP-B controller board does not connect to the USB port when the software launches, a connectivity error displays (see Figure 2). -
Page 5: Software Operation
EVAL-AD5344DBZ User Guide UG-985 Figure 4. AD5344 Evaluation Board Software Main Window SOFTWARE OPERATION EVAL-AD5344DBZ evaluation software allows the user to program values to the input and DAC registers of each DAC individually (see Figure 4). Ensure the LK1 position and LK2 position on the daughter board match the DAC selected on the DAC Selection pane on the GUI. -
Page 6: Evaluation Board Schematics And Artwork
UG-985 EVAL-AD5344DBZ User Guide EVALUATION BOARD SCHEMATICS AND ARTWORK EVAL-MBnanoDAC-SDZ MOTHERBOARD +3.3V USB_VBUS BEAD 1.6Ω 100kΩ RESET_IN BMODE1 UART_RX UART_TX RESET_OUT SLEEP 4.7µF EXT_VDD 10µF 0.1µF +3.3V EEPROM_A0 WAKE STANDARD CONNECTOR DGND 24LC32 DGND 100kΩ CLK_OUT DGND TMR_C* TMR_D TIMERS... - Page 7 EVAL-AD5344DBZ User Guide UG-985 DAUGHTER BOARD CONNECTOR SDIN SDO SCLK SYNC SCL LDAC CLR GAIN SDA LDAC SDIN SCLK SYNC GAIN SPI PMOD CONNNECTOR GPIO PMOD CONNNECTOR J8-1 J7-1 SYNC J4-1 J8-2 J7-2 VOUT_0 SDIN LDAC AGND J8-3 J7-3 GAIN...
- Page 8 UG-985 EVAL-AD5344DBZ User Guide Figure 10. EVAL-MBnanoDAC-SDZ Motherboard Component Placement Figure 11. EVAL-MBnanoDAC-SDZ Motherboard Top Side Routing Rev. A | Page 8 of 12...
-
Page 9: Eval-Ad5344Dbz Daughter Board
EVAL-AD5344DBZ User Guide UG-985 Figure 12. EVAL-MBnanoDAC-SDZ Motherboard Bottom Side Routing EVAL-AD5344DBZ DAUGHTER BOARD Figure 13. EVAL-AD5344DBZ Daughter Board Schematics Figure 14. EVAL-AD5344DBZ Daughter Board Component Placement Rev. A | Page 9 of 12... - Page 10 UG-985 EVAL-AD5344DBZ User Guide Figure 15. EVAL-AD5344DBZ Daughter Board Top Side Routing Figure 16. EVAL-AD5344DBZ Daughter Board Bottom Side Routing Rev. A | Page 10 of 12...
-
Page 11: Ordering Information
EVAL-AD5344DBZ User Guide UG-985 ORDERING INFORMATION BILL OF MATERIALS Table 5. EVAL-MBnanoDAC-SDZ Motherboard Reference Designator Description Supplier /Part Number C1, C6, C7, C9 6.3 V tantalum capacitors (Case A), 10 µF, ±20% FEC 1190107 C2, C5, C8, C10, C15 to C17 50V, X7R ceramic capacitors, 0.1 µF, ±10%... - Page 12 By using the evaluation board discussed herein (together with any tools, components documentation or support materials, the “Evaluation Board”), you are agreeing to be bound by the terms and conditions set forth below (“Agreement”) unless you have purchased the Evaluation Board, in which case the Analog Devices Standard Terms and Conditions of Sale shall govern. Do not use the Evaluation Board until you have read and agreed to the Agreement.
