One Technology Way • P.O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com
Evaluating the
AD5413

FEATURES

Fully featured evaluation board for the
On board 2.5 V
ADR4525
reference
ACE
software for control

EVALUATION KIT CONTENTS

EVAL-AD5413SDZ

EQUIPMENT NEEDED

SDP-S
controller board
Bench top power supply and connector cables
PC or laptop

DOCUMENTS NEEDED

AD5413
data sheet
ACE
user manual

SOFTWARE NEEDED

ACE
software
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
EVAL-AD5413SDZ
Single-Channel, 14-Bit Current and Voltage Output DAC with
HART Connectivity
AD5413

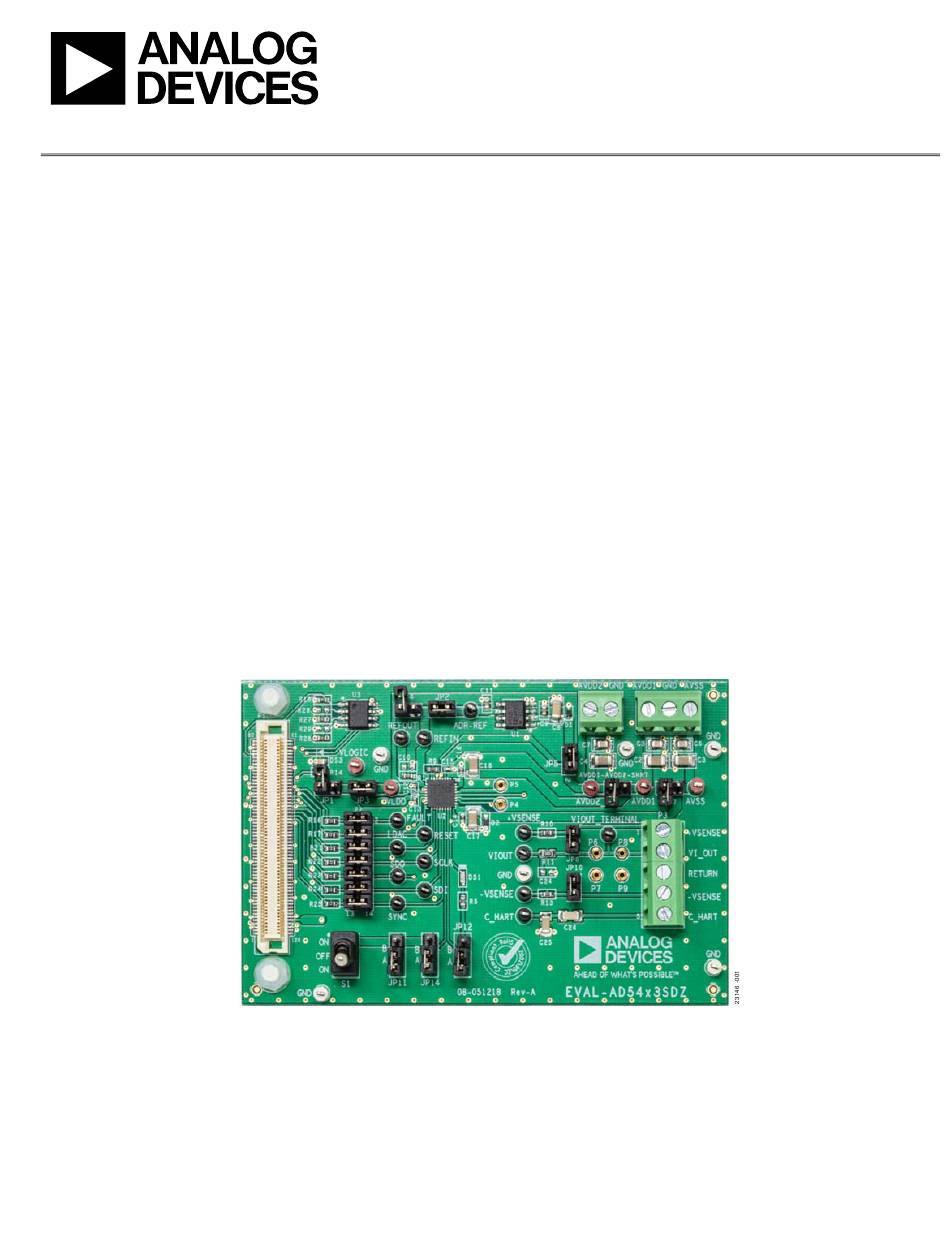

EVALUATION BOARD PHOTOGRAPH

Figure 1.
Rev. 0 | Page 1 of 17
Evaluation Board User Guide

GENERAL DESCRIPTION

This user guide describes the EVAL-AD5413SDZ for the
AD5413
single-channel, 14-bit voltage and 14-bit current
output digital-to-analog converter (DAC).
The EVAL-AD5413SDZ (see Figure 1) requires the
CS1Z
system demonstration platform (SDP-S) board. The
EVAL-AD5413SDZ interfaces to the USB port of the PC via the
SDP-S
board. The
Analysis, Control, Evaluation
allows simplified programming of the AD5413, and is available
to use with the EVAL-AD5413SDZ.
For full details on the AD5413, see the
Consult the data sheet in conjunction with this user guide when
using the EVAL-AD5413SDZ.
UG-1757
EVAL-SDP-
(ACE) software
AD5413
data sheet.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EVAL-AD5413SDZ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Analog Devices EVAL-AD5413SDZ

Summary of Contents for Analog Devices EVAL-AD5413SDZ

  • Page 1: Features

    The EVAL-AD5413SDZ (see Figure 1) requires the EVAL-SDP- EVALUATION KIT CONTENTS CS1Z system demonstration platform (SDP-S) board. The EVAL-AD5413SDZ EVAL-AD5413SDZ interfaces to the USB port of the PC via the EQUIPMENT NEEDED SDP-S board. The Analysis, Control, Evaluation (ACE) software...

  • Page 2: Table Of Contents

    AD5413 Device Address Pins ............. 3 Ordering Information ..............16 Software Quick Start Procedures ............ 4 Bill of Materials ................16 Installing the ACE Software and EVAL-AD5413SDZ Plugins ......................4 REVISION HISTORY 5/2020—Revision 0: Initial Version Rev. 0 | Page 2 of 17...

  • Page 3: Evaluation Board Hardware

    P2 (see Table 2). An option to tie the link positions. RESET pin and the LDAC pin to high or low levels is available The EVAL-AD5413SDZ operates with a power supply range from through the S1 switch and the JP11 link. −33 V on AV...

  • Page 4: Software Quick Start Procedures

    When the installation is finished, the EVAL-AD5413SDZ plugin appears when the software is opened. INITIAL SETUP To set up the EVAL-AD5413SDZ, take the following steps: Connect a USB cable to the PC and then to the SDP-S board. Connect the SDP-S board to the EVAL-AD5413SDZ.
  • Page 5 If the device is power cycled, or if the USB cable is disconnected and reconnected while the software is open, contact with the EVAL-AD5413SDZ is lost. To regain contact, click the System tab, click the USB symbol on the SDP-S, and then click Acquire (see Figure 6).

  • Page 6: Ad5413 Block Diagram And Functions

    SDP-S board pulls the LDAC pin low. The EVAL-AD5413SDZ plugin monitors the FAULT pin. If the FAULT pin is low, the /FAULT indicator LED lights up red. VI_OUT displays the calculated output at VI , and displays if the output is in voltage, milliamps, or is high impedance (high-Z).
  • Page 7 EVAL-AD5413SDZ Evaluation Board User Guide UG-1757 Figure Label Function DIGITAL DIAGNOSTIC RESULTS menu. Click Update and Readback to trigger a write 1 to clear operation on the selected check boxes and a readback from the digital diagnostic result register. ANALOG DIAGNOSTIC RESULTS menu. Click Update and Readback to trigger a write 1 to clear operation on the selected check boxes and a readback from the analog diagnostic result register.

  • Page 8: Initial Configuration

    UG-1757 EVAL-AD5413SDZ Evaluation Board User Guide INITIAL CONFIGURATION UPDATING DIAGNOSTIC RESULTS An initial configuration wizard is available when the AD5413 AD5413 has a digital diagnostic results register and an analog plugin opens that allows quick configuration of the AD5413, the diagnostic results register that contain error flags for the on- DAC configuration register, and the DAC input register.
  • Page 9 EVAL-AD5413SDZ Evaluation Board User Guide UG-1757 Figure 13. Example Sequences Window Rev. 0 | Page 9 of 17...

  • Page 10: Ace Tool Views

    UG-1757 EVAL-AD5413SDZ Evaluation Board User Guide TOOL VIEWS software provides additional functionality to the main REGISTER DEBUGGER TOOL view described in this user guide. Open these views from the Use the register debugger tool to perform raw writes to and view menu item on the application toolbar.

  • Page 11: Evaluation Board Schematics And Artwork

    EVAL-AD5413SDZ Evaluation Board User Guide UG-1757 EVALUATION BOARD SCHEMATICS AND ARTWORK Figure 14. AD5413 Device Schematic Rev. 0 | Page 11 of 17...
  • Page 12 UG-1757 EVAL-AD5413SDZ Evaluation Board User Guide AVDD1-AVDD2-SHRT AVDD2 AVDD1 TERMINAL BLOCK DECOUPLING CAPACITORS AVDD1 AVDD1/AVSS 4.7µF 0.1µF GND1 AVDD1 AVSS AVSS 0.1µF 4.7µF JP17 AVSS OPTION TO SHORT AVSS TO GND => UNIPOLAR SUPPLY AVDD2_ AVDD2 AVDD2 4.7µF 0.1µF VLOGIC SOURCE OPTIONS VLOGIC 3.3V_SDP...
  • Page 13 EVAL-AD5413SDZ Evaluation Board User Guide UG-1757 Figure 16. SDP-S Board Connections, Address Pins, LDAC and RESET Pins Rev. 0 | Page 13 of 17...
  • Page 14 UG-1757 EVAL-AD5413SDZ Evaluation Board User Guide +VSENSE THROUGH-HOLE COMPONENTS USED FOR SERIES RESIS TORS +VSENSE 1kΩ VIOUT VIOUT_TERMINAL +VSENSE VI_OUT VI_OUT 10Ω RETURN –VSENSE 0.1µF C_HART PLACEHOLDER TO EXPERIMENT WITH SETTLING TIME 1727049 THROUGH-HOLE LOAD RESISTOR OPTION IN GOLD PINS –VSENSE...
  • Page 15 EVAL-AD5413SDZ Evaluation Board User Guide UG-1757 Figure 19. AD5413 Evaluation Board Layer 1, Primary Figure 20. AD5413 Evaluation Board Layer 2 and Layer 3 Figure 21. AD5413 Evaluation Board Layer 4, Secondary Rev. 0 | Page 15 of 17...

  • Page 16: Ordering Information

    Thick film chip resistors Multicomp (SPC) MC 0.063W 0603 1% 100K Switch, tiny, washable toggle switch Apem TL39P0050 Components Analog Devices, IC, ultralow noise, high accuracy Analog Devices ADR4525BRZ voltage reference Analog Devices, IC, single channel, 14-bit current Analog Devices AD5413BCPZ-RL7...
  • Page 17 By using the evaluation board discussed herein (together with any tools, components documentation or support materials, the “Evaluation Board”), you are agreeing to be bound by the terms and conditions set forth below (“Agreement”) unless you have purchased the Evaluation Board, in which case the Analog Devices Standard Terms and Conditions of Sale shall govern. Do not use the Evaluation Board until you have read and agreed to the Agreement.
