Evaluating the 8-Channel, 12-Bit, Configurable ADC/DAC/GPIO
FEATURES
Full featured evaluation board for the
On-board reference
Various link options
PC control in conjunction with Analog Devices, Inc., system
demonstration platform (SDP-B, EVAL-SDP-CB1Z)
EQUIPMENT NEEDED
AD5592R
evaluation board
CD includes
Self-installing software that allows users to control the
board and exercise all functions of the device
Electronic version of the
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
Chip Reference and SPI Interface
AD5592R
EVAL-AD5592RSDZ
user guide
EVAL-AD5592RSDZ User Guide
ADDITIONAL EQUIPMENT AND SOFTWARE
NEEDED
EVAL-SDP-CB1Z
USB cable
PC running Windows XP SP2, Windows Vista, or Windows 7
with USB 2.0 port
ONLINE RESOURCES
Documents Needed
AD5592R
data sheet
EVAL-AD5592RSDZ
Required Software
AD5592R
evaluation software (download from the
EVAL-AD5592RSDZ

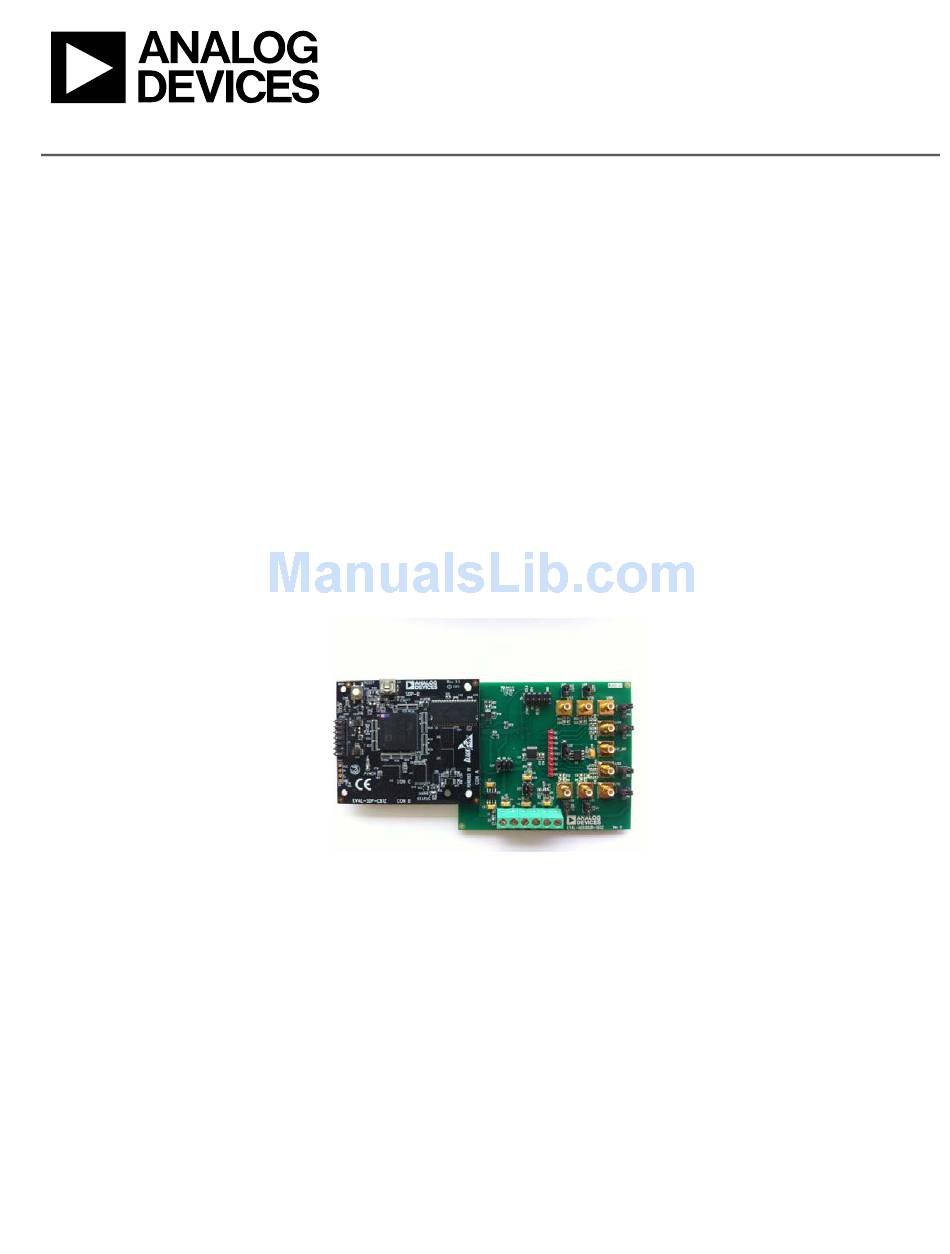

TYPICAL SETUP
Figure 1.
Rev. 0 | Page 1 of 13
www.analog.com
AD5592R
system demonstration platform, includes a
user guide
product page)
UG-753
with On-
Advertisement
Table of Contents
Related Manuals for Analog Devices EVAL-AD5592RSDZ
Summary of Contents for Analog Devices EVAL-AD5592RSDZ
-
Page 1: Features
EVAL-SDP-CB1Z system demonstration platform, includes a Various link options USB cable PC control in conjunction with Analog Devices, Inc., system PC running Windows XP SP2, Windows Vista, or Windows 7 demonstration platform (SDP-B, EVAL-SDP-CB1Z) with USB 2.0 port EQUIPMENT NEEDED... -
Page 2: Table Of Contents
UG-753 EVAL-AD5592RSDZ User Guide TABLE OF CONTENTS Features ....................1 Analog Input And Output Signals ..........5 Equipment Needed ................1 Link Configuration Options ............6 Additional Equipment and Software Needed ....... 1 Setup Conditions ................6 Online Resources ................1 Evaluation Board Circuitry ..............7 Typical Setup .................. -
Page 3: General Description
AD5592R 8-channel, 12-bit, configurable analog-to-digital available from Analog Devices. Consult the data sheet in converter (ADC)/digital-to-analog converter (DAC)/general- conjunction with this user guide when using the evaluation purpose input/output (GPIO) with on-chip reference and SPI board. -
Page 4: Getting Started
UG-753 EVAL-AD5592RSDZ User Guide GETTING STARTED INSTALLING THE SOFTWARE After installation is complete, power up the evaluation board as described in the Power Supplies section. The evaluation kit for the AD5592R includes self-installing Connect the evaluation board to the SDP-B board, and software on a CD. -
Page 5: Evaluation Board Hardware
EVAL-AD5592RSDZ User Guide UG-753 EVALUATION BOARD HARDWARE POWER SUPPLIES DIGITAL INPUT AND OUTPUT SIGNALS To use the evaluation board with the SDP-B board, a 6 V power When the SDP-B board is used to control the AD5592R supply is required, which is connected to Connector J3. The... -
Page 6: Link Configuration Options
UG-753 EVAL-AD5592RSDZ User Guide LINK CONFIGURATION OPTIONS A number of link options are incorporated in the evaluation operating mode. The evaluation board operates in two different board and must be set for the required operating conditions modes—SDP-B controlled mode and standalone mode. -
Page 7: Evaluation Board Circuitry
EVAL-AD5592RSDZ User Guide UG-753 EVALUATION BOARD CIRCUITRY AD5592R evaluation board allows the function and provided with the kit to be used to configure the AD5592R performance of the device to be easily tested. The evaluation well as write and read data to and from the AD5592R. -
Page 8: How To Use The Software
6 V to the J3 connector. Click Start > All Programs > Analog Devices > AD5592R >.AD5592R Evaluation Software. When the software connects to the evaluation board, the message shown in Figure 3 displays. -
Page 9: Gpio Tab
EVAL-AD5592RSDZ User Guide UG-753 Figure 7. DAC Tab Figure 8. ADC Tab GPIO TAB written to the AD5592R by clicking the Write and Read button. Data that appears on the SDO pin of the AD5592R is shown in The GPIO tab allows the user to set the output levels for pins set the Read Array control. -
Page 10: Evaluation Board Schematics
UG-753 EVAL-AD5592RSDZ User Guide EVALUATION BOARD SCHEMATICS Figure 9. AD5592R Schematic (Page 1 of 2) Rev. 0 | Page 10 of 13... - Page 11 EVAL-AD5592RSDZ User Guide UG-753 Figure 10. AD5592R Schematic (Page 2 of 2) Rev. 0 | Page 11 of 13...
-
Page 12: Ordering Information
UG-753 EVAL-AD5592RSDZ User Guide ORDERING INFORMATION COMPONENTS LIST Table 3. Reference Designator Description Supplier/Part Number Noninserted through-hole capacitor location; do not Not applicable insert C3 to C6, C22, C24, C27, C29 Capacitor, 100 nF, 50 V, 0603 FEC 8820023 C15 to C18, C23, C25, C26, C28, C30 Capacitor, Case A, 10 µF, 10 V... - Page 13 By using the evaluation board discussed herein (together with any tools, components documentation or support materials, the “Evaluation Board”), you are agreeing to be bound by the terms and conditions set forth below (“Agreement”) unless you have purchased the Evaluation Board, in which case the Analog Devices Standard Terms and Conditions of Sale shall govern. Do not use the Evaluation Board until you have read and agreed to the Agreement.
