UG-171

EVALUATION BOARD SOFTWARE

The control software for the EV-ADF4156SD1Z accompanies
the EV-ADF4156SD1Z
Software Installation section.
To run the software, click the ADI ADF4153-4-6-7 file on the
desktop or in the Start menu.
On the Select Device and Connection tab, choose your device,
your connection method, and click Connect.
Downloaded from Elcodis.com electronic components distributor
on a CD. To install the software, see the

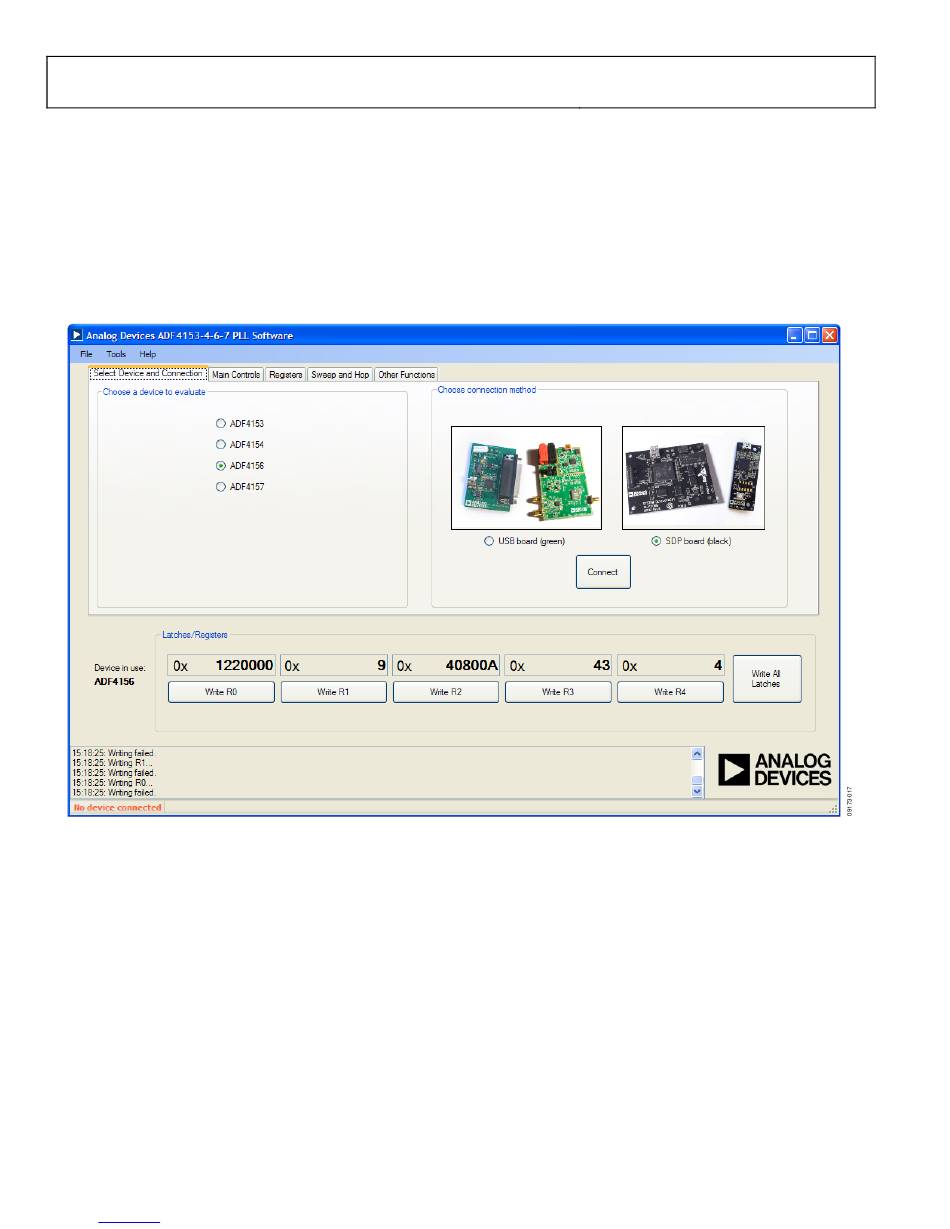

Figure 17. Software Front Panel Display—Select Device and Connection
Confirm that SDP board connected, ADF4xxx USB Adapter
Board connected, or Analog Devices RFG.L Eval Board
connected is displayed at the bottom left of the window.
Otherwise, the software has no connection to the evaluation board.
Note that, when connecting the board, it takes about 5 sec to
10 sec for the status label to change.
Under the File menu, the current settings can be saved to and
loaded from, a text file.
Rev. B | Page 10 of 24
Evaluation Board User Guide
