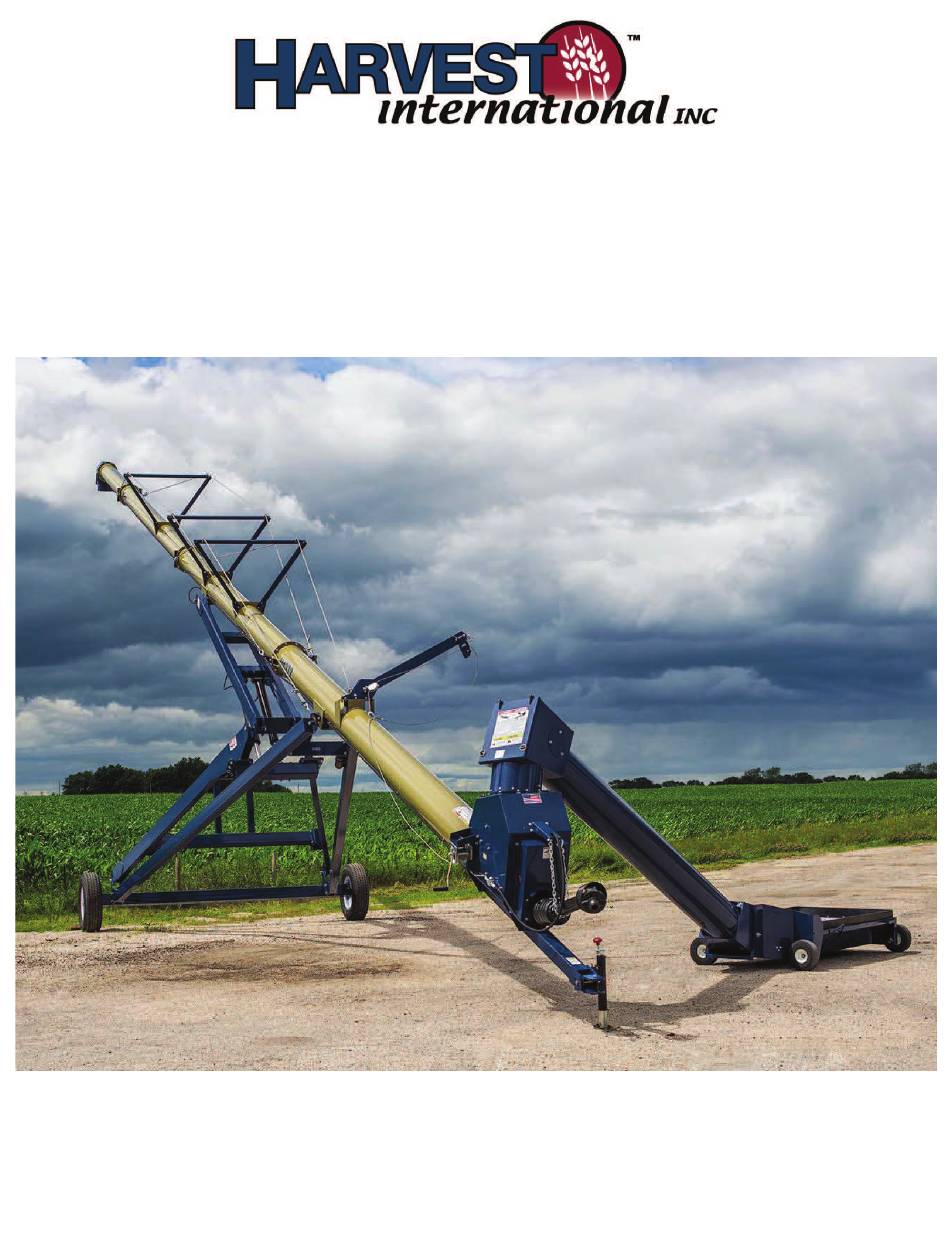

- Page 1 H1362, H1372, & H1382 AUGER ASSEMBLY MANUAL Read & understand all instructions pertaining to this auger prior to use! Revised 10/3/2014...
- Page 2 It may also be used to alert against unsafe practices. N – Indicates a potentially hazardous situation that, if not avoided, may result in minor or moderate injury. It may also be used to alert against unsafe practices. Harvest International H13XX Assembly Manual Page 2 of 35...
-
Page 3: Table Of Contents
Hydraulic Hose Assembly ……………………………………………….. Step 27 Carriage Assembly ……………………………………………….. (Identification) Step 28-43 Hydraulic Hose Assembly ……………………………………………….. (cont’d) Steps 44 & 45 Swing Tube & Hopper Assembly ……………………………………………….. Steps 46-51 Parts Book Drawings ……………………………………………….. Harvest International H13XX Assembly Manual Page 3 of 35... -
Page 4: Tube Identification
Step 1 Tube Identification Tube H1362, H1372, & H1382 Tube H1362, H1372, & H1382 Tube, Discharge H1362 Tube, H1372 & H1382 Tube, Discharge H1372 Tube, Discharge H1382 Harvest International H13XX Assembly Manual Page 4 of 35... -
Page 5: Step 3
& brackets using (6) 1/2” x 1-1/2” flange bolts & nuts. Next, attach a 3/8’’ quick link to each bracket as shown in fig. 4.1. (If assembling an H1362 skip to Step 7) Fig. 4.1... - Page 6 (3) 5/8” x 3” hex bolts & top lock nuts. After connecting the flighting, slide the 3 & 4 tube together & connect the tubes using (10) 1/2" x 1-1/2” flange bolts & nuts. Fig. 6.1 Harvest International H13XX Assembly Manual Page 6 of 35...
-
Page 7: Discharge Head Assembly
& nuts. Be sure to angle the cable mount bracket slightly upwards as shown in figure 8.1. Assemble (2) 3/4" eyebolts onto brackets using (2) 3/4" flat washer & (2) 3/4" flange nuts. Fig. 8.1 Harvest International H13XX Assembly Manual Page 7 of 35... - Page 8 (6) 3/8” x 1-1/2” flange bolts & nuts as shown. After all carriage bolts are tigtenen, place the 1/2” cable clamps on the out side of the trusses as shown. Thread nuts on by hand but do not tighten. Fig. 10.1 Fig. 10.2 Harvest International H13XX Assembly Manual Page 8 of 35...
-
Page 9: Infeed Housing Assembly
6 holes. (See Fig. 11.3) Secure the bottom of the infeed housing to the tube by using 2 U-Bolts (11022) and (4) 1/2" flange nuts as shown in Fig. 11.4. Fig. 11.1 Fig. 11.2 Fig. 11.3 Fig. 11.4 Harvest International H13XX Assembly Manual Page 9 of 35... -
Page 10: Steps
Fig. 13.1. Use a measuring tape, measure the distance from the center of the top & bottom sprocket to the infeed housing. Once sprockets are aligned, apply lock-tite to set screws & tighten. Fig. 13.1 Harvest International H13XX Assembly Manual Page 10 of 35... - Page 11 PTO shaft with hole in drive shaft. Using a punch will help in this application. Secure using a 3/8” x 3-1/2” hex bolt & top lock nut. Tighten set screw on PTO shaft. Fig. 15.1 Fig. 15.2 Harvest International H13XX Assembly Manual Page 11 of 35...
- Page 12 Locate the PTO support bracket & mount it to the infeed housing as shown in fig. 17.1 using (4) 3/8” x 3/4" flange bolts & flange nuts. Attach the PTO support chain to the bracket as shown using a 3/8” x 1” flange bolt & flange nut. Fig. 17.1 Harvest International H13XX Assembly Manual Page 12 of 35...
- Page 13 Step 18 Locate the jack and slide it onto the jack mount tube located on the side of the tongue. Secure jack with pin. Fig. 18.1 Harvest International H13XX Assembly Manual Page 13 of 35...
- Page 14 1/2" bent pin. Angle the winch so it is centered with the top bracket (hopper arm bracket) on the 1 tube as shown in figure 20.3. Tighten the (3) 3/8” x 1” carriage bolts. Fig. 19.1 Fig. 19.2 Fig. 19.3 Harvest International H13XX Assembly Manual Page 14 of 35...
-
Page 15: Transport Arm Assembly
& secure with a total of (6) 3/8” x 1” hex bolts & nuts. Next, place the assembled transport arm between the tube brackets & sure with a 3/4" x 3-1/2” clevis pin & hair pin. Fig. 21.1 Fig. 21.2 Harvest International H13XX Assembly Manual Page 15 of 35... - Page 16 Pull cable back to the winch. Insert cable through hole on the side of the winch drum. Fasten to winch using the winch cable clamp & nut profided with winch. Fig. 22.1 Fig. 22.2 Harvest International H13XX Assembly Manual Page 16 of 35...
-
Page 17: Truss Cable Assembly
Secure using (2) 1/2” cable clamps as shown if figure 23.3. Repeat on opposite side of the auger. Always have saddles of the cable clamps on the “live” end of the cable. Fig. 23.1 Fig. 23.2 Fig. 23.3 Harvest International H13XX Assembly Manual Page 17 of 35... - Page 18 Step 24 Locate the longer cables. (41’ on a H1362 & H1372; 61’ on a H1382) Attach cable to eyebolts on the left & right side of the 1 tube. Attach using the same process specified in step 23. Pull cable past the first truss keeping the cable on the outside of the truss.
-
Page 19: Steps
After the clamps are tightened, stabilize the auger and lower the discharge end of the auger. Once lowered, the auger should have a bow of 3” to 4” off of the assembly stand. Fig. 26.1 Harvest International H13XX Assembly Manual Page 19 of 35... -
Page 20: Hydraulic Hose Assembly
27.1. Run hose up left hand side auger tube attaching it the weld on studs using 1/2" hose “P” clamps & 1/4" flange nuts. Leave a little slack between each stud. Run the house on the inside of the carriage mount bracket as shown in figure 28.2. Fig. 27.1 Fig. 27.2 Harvest International H13XX Assembly Manual Page 20 of 35... - Page 21 Step 28 (Carriage Assembly) Carriage Identification Carriage Arm (2X) Axle Left Scissor Arm Right Scissor Arm Transport Support Tube Cylinder Cross Tube Upper Scissors Harvest International H13XX Assembly Manual Page 21 of 35...
-
Page 22: Step 30
30.1. Be sure to place cylinder cross tube with the holes for the cylinder in the direction of the axle. Fig. 30.1 Harvest International H13XX Assembly Manual Page 22 of 35... - Page 23 Locate the transport support tube assembly. Move the bracket between the two scissor arms. Make sure that the upright rest arms are leaning away from the axle. Attach each side using (4) 5/8” x 1-1/2” flange bolts & nuts. Do not tighten. Fig. 32.1 Fig. 32.2 Harvest International H13XX Assembly Manual Page 23 of 35...
- Page 24 33.1. Attach the plate to both carriage arms using (4) 1/2” x 1” flange bolts & flange nuts. Do not tighten at this time. Fig. 33.1 Harvest International H13XX Assembly Manual Page 24 of 35...
- Page 25 34.1. Rest the upper scissors on the transport support arm. Attach the upper scissors using 2 pins that are 9-5/8” long. Secure each pin with (2) 3/8” x 3” roll pins shown in fig. 34.2. Fig. 34.1 Fig. 34.2 Harvest International H13XX Assembly Manual Page 25 of 35...
-
Page 26: Step 36
Also, make sure the cylinder ports are pointed down. Attach the cylinder to the upper scissors assembly using the cylinder pin and the 2 roll pins as shown in fig. 36.1. Repeat this step for the second cylinder. Fig. 36.1 Harvest International H13XX Assembly Manual Page 26 of 35... - Page 27 After connecting both ends of the cylinder, lift the upper scissors & the scissor arms up. Place a board under the cylinder mount tube and set the upper scissors back down resting it on the board. This will stabilize the carriage assembly for the next step. Fig. 38.1 Harvest International H13XX Assembly Manual Page 27 of 35...
- Page 28 When holes are align, mount tubes to the carriage using a 1-1/4” x 23” pin. Secure the pin through the upper scissors with (2) 3/8” x 3” roll pins. Release lifting strap and move to the front of the carriage. Fig. 40.1 Fig. 40.2 Harvest International H13XX Assembly Manual Page 28 of 35...
- Page 29 (Fig. 42.1) Mount the hydraulic hose to the inner part of the upper scissors using (2) 1/2" hose “P” clamps & 1/4" flange nuts as shown in fig. 42.2. Fig. 42.1 Fig. 42.2 Harvest International H13XX Assembly Manual Page 29 of 35...
-
Page 30: Hydraulic Hose Assembly (Cont'd)
Connect the two fittings together with the short hydraulic hose. Next, connect the long hose end to the other end of the “T” fitting. The cylinders should be assembled as shown in Fig. 43.2. Fig. 44.1 Fig. 44.2 Harvest International H13XX Assembly Manual Page 30 of 35... - Page 31 Locate the swing hopper swivel ring (30407A). Install the swing hopper swivel ring on the discharge head of the swing tube. Fasten the ring as shown in fig. 46.1 using (2) 1/2" x 5/8” shoulder bolt & 1/2" top lock nuts. Fig. 46.1 Harvest International H13XX Assembly Manual Page 31 of 35...
- Page 32 Locate the 4 swing tube hold down plates & the 8 hold down spacers. Install the hold down plates & spaces using (8) 3/8” x 1-1/2” flange bolts & flange nuts. Tighten all 8 fasteners. Fig. 48.1 Harvest International H13XX Assembly Manual Page 32 of 35...
- Page 33 5/16” x 1-1/4” into hole on knuckle (Fig. 50.1). After set screw is tightened, thread a 5/16” flange nut onto set screw and tighten to lock set screw in place. Fig. 50.1 Harvest International H13XX Assembly Manual Page 33 of 35...
- Page 34 Secure to the tube using (2) #12 x 3/4” self tapping screws. Note that they canister lid will have to be removed to install 1 of the screws. After installation, reattach the canister lid. Fig. 52.1 Harvest International H13XX Assembly Manual Page 34 of 35...
-
Page 35: Parts Book Drawings
This will complete the assembly for your Harvest International H1362, H1372 or H1382 grain auger. For additional part numbers, information, & overall views please refer to the parts book drawings located at the end of this assembly manual or log onto www.harvestauger.com.
